Motor installation, continued
Brake motors
Brake motors

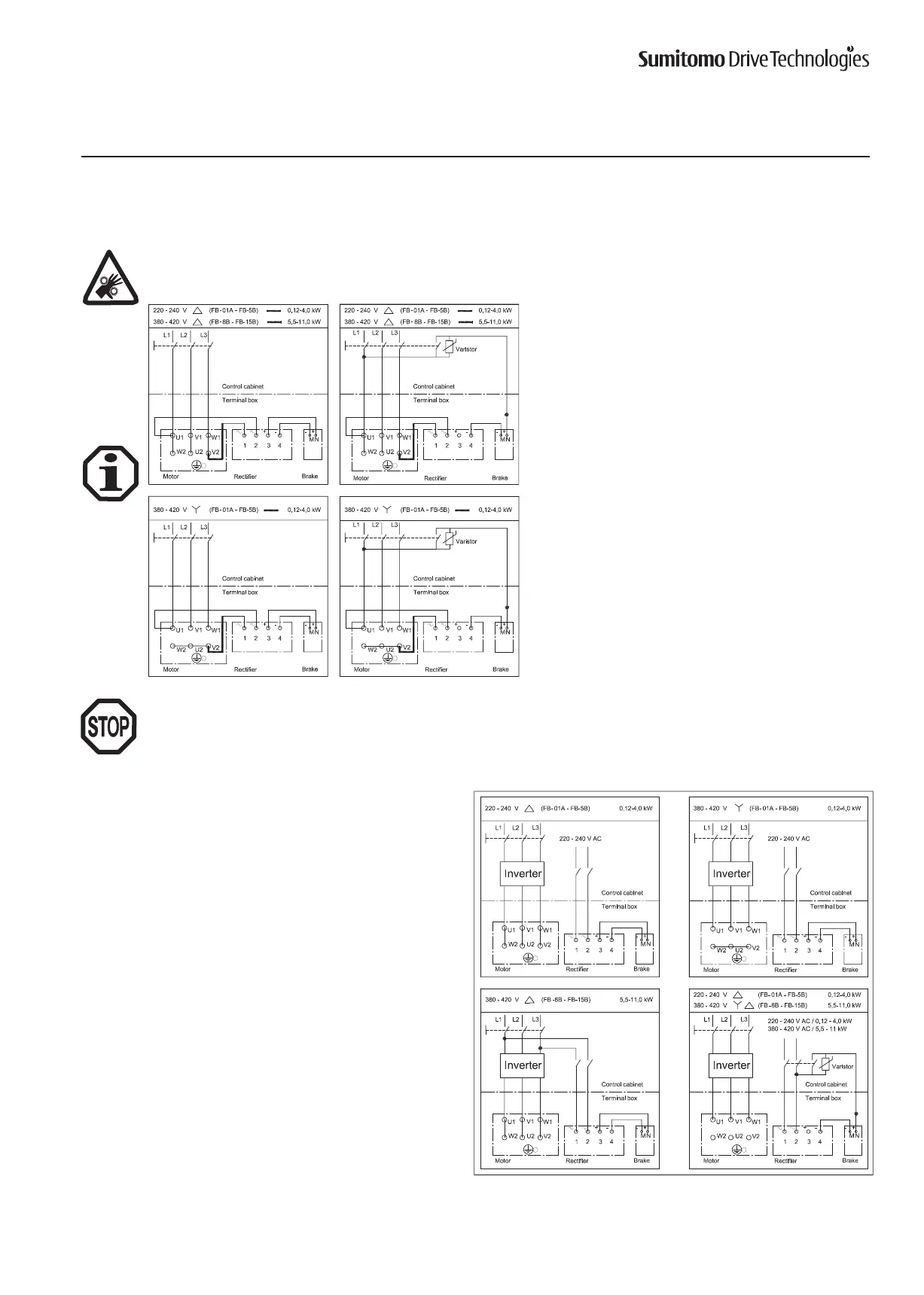

Thebrakemotorsareconnectedinaccordancewiththefollowingcircuitdiagrams:
Standard brake Rapid action brake
The brake control voltage is noted on the rating plate.
Ifthestoppositionoftheapplicationisnotreachedonstartingup,thismaynothaveanythingtodowiththebraketorque.
Formotorsdrivenbyaninverter,thebrakemustbesupplied
separately,asshownbelow:
