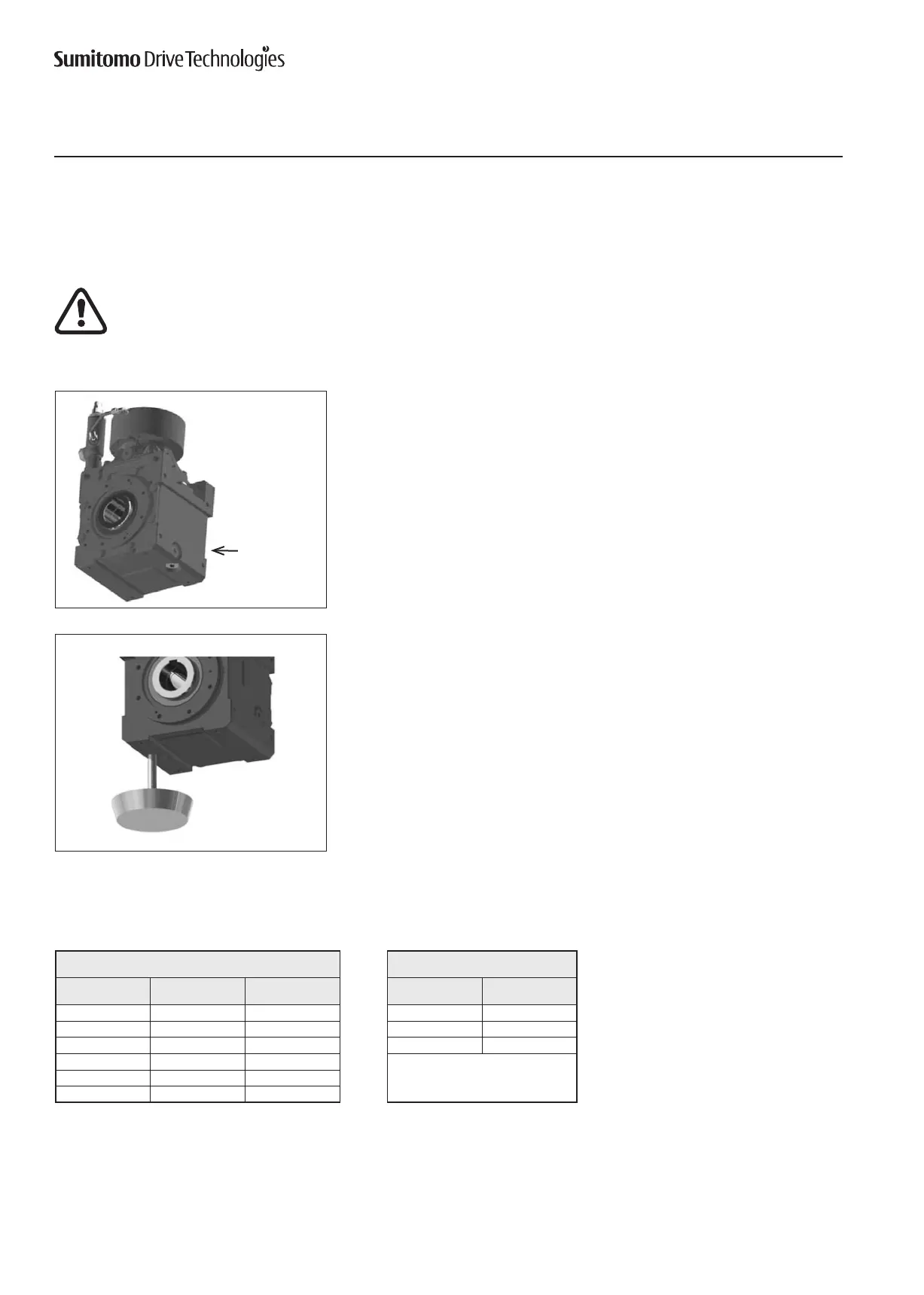

36 Manual BBB4_ENG_01_2016_991301
Y2 Oil Fill & Drain Procedures, continued
Oil Drain Process
Oil Drain Process
CAUTIONARYNOTE:
•ExerciseextremecautionwhendrainingthelubricatingoilfromtheBevelBuddyboxasitmaybehot.
•Followallcorporate,local,stateandfederalgovernmentregulationsindisposingoftheusedlubricatingoil.
1
Identify the bevel portion oil drain plug on the bevel gear housing.
Carefully remove the plug and put aside for reinsertion after oil fill is complete.
2
Carefully remove the unit air breather assembly and put aside for reinsertion after oil
fill process is complete.
Allow used oil to freely flow into an approved lubricant container.
Oncetheunitiscompletelydrainedofoil,reinstallthedrainplugandtighten.
Refer to torque tightening values in Table 26.
Table26.Plugsizesandtighteningtorquevalues
PlugSizes
Torque Value
Unit Size Housing Casing Size N•m
4A 1/2 1/2 1/2
17.8
4B 1/2 1/2 3/4 30.0
4C 3/4 1/2 1 41.2
4D 3/4 1/2
4E 3/4 1/2
4F 3/4 1/2
In the event that
the lower plug is
covered with a
boltonfoot,this
plug may be used
as a drain
