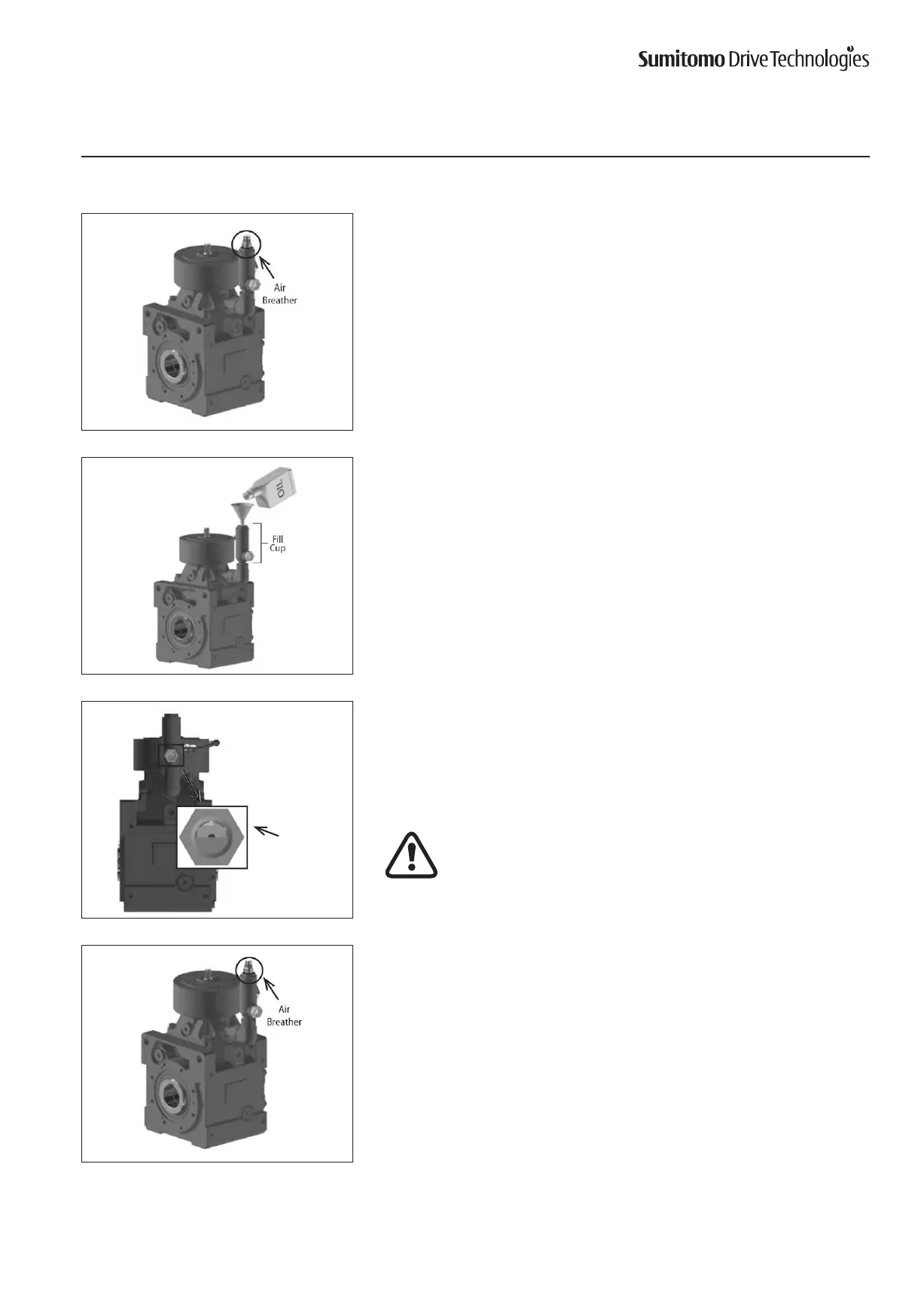

Carefully remove the unit Air Breather assembly and put aside for reinsertion after
oil fill process is complete.
4
Slowly fill the Cyclo (input) portion with the correct type and grade of oil as used in
STEP #2 of this process.
NOTE: The oil fill cup may immediately become full during the process. In such an
event,stopthellprocessandallowtheoiltodrainfromthecupintothereducer.
5
The input portion is considered full when the oil level stabilizes in the middle of the
oil sight gauge.
Check gauge carefully. Oil film from fill procedure can distort view.
Be sure to check the oil level after a few minutes of operation. Stop
equipmentandcheckgaugeasshowninstep5.Adjustoillevelas
required.
6
Oncetheinputportionoftheunitislledtothecorrectlevelwithlubricant,
carefully reinsert the air breather assembly into the oil fill cup.
Y2 Oil Fill & Drain Procedures, continued
Oil Fill Process
Correct oil
level in oil
sight gauge
