CycloPortionDisassembly/Assembly,continued

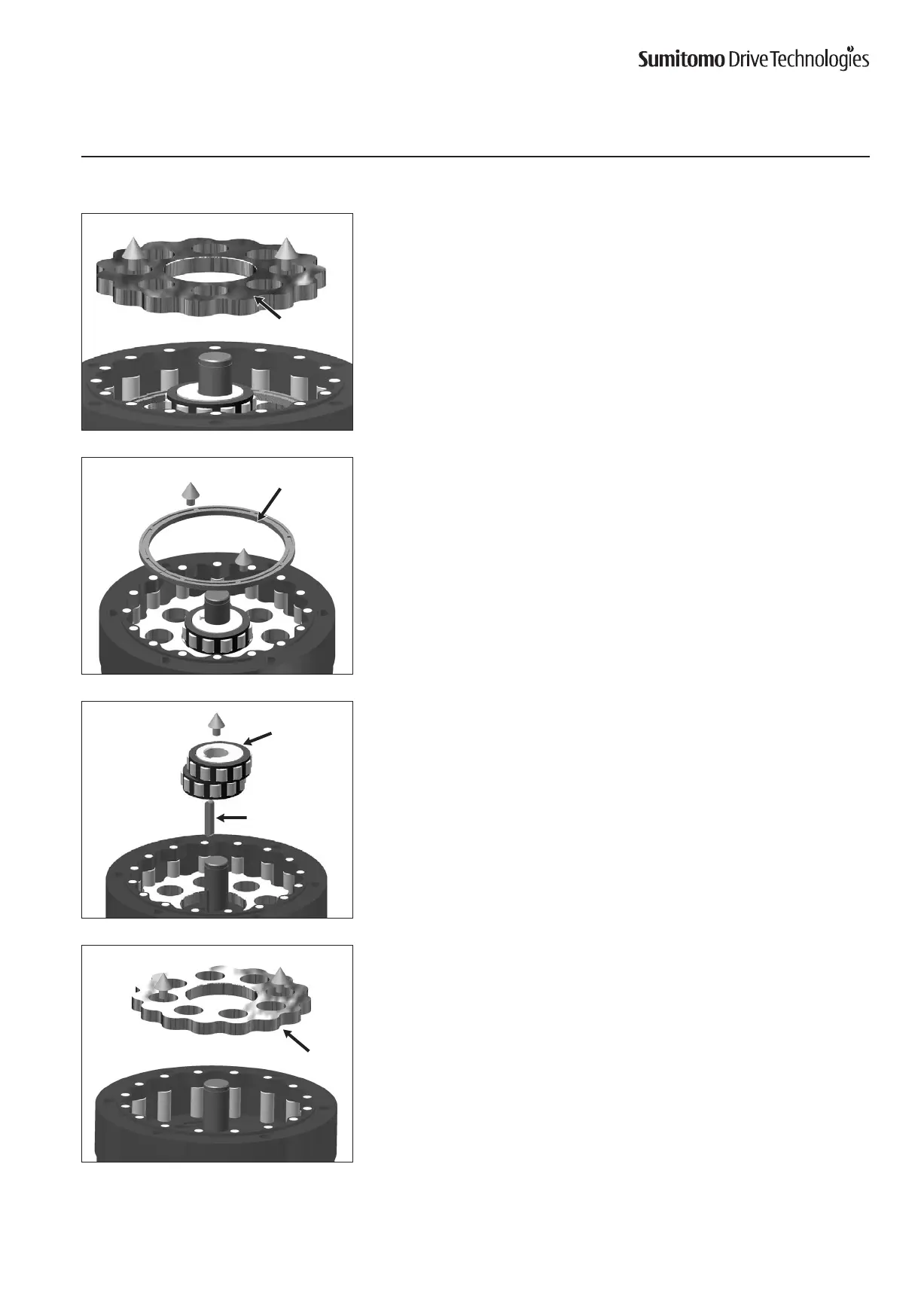

Disassembly Procedure
Cycloid Disc Spacer
Cycloid Disc
Eccentric
Bearing
Key
Cycloid Disc
8
Usingbothhands,carefullyremovethetopCycloid disc.
9
For Cyclo units supplied with a spacer, remove the Cycloidal disc spacer.
10
Remove the eccentricbearing from the high speed shaft.
11
Usingbothhands,carefullyremovetheremainingCycloid disc.
