14 Operation & Maintenance Manual
Cyclo® HBB
Cyclo® HBB
3

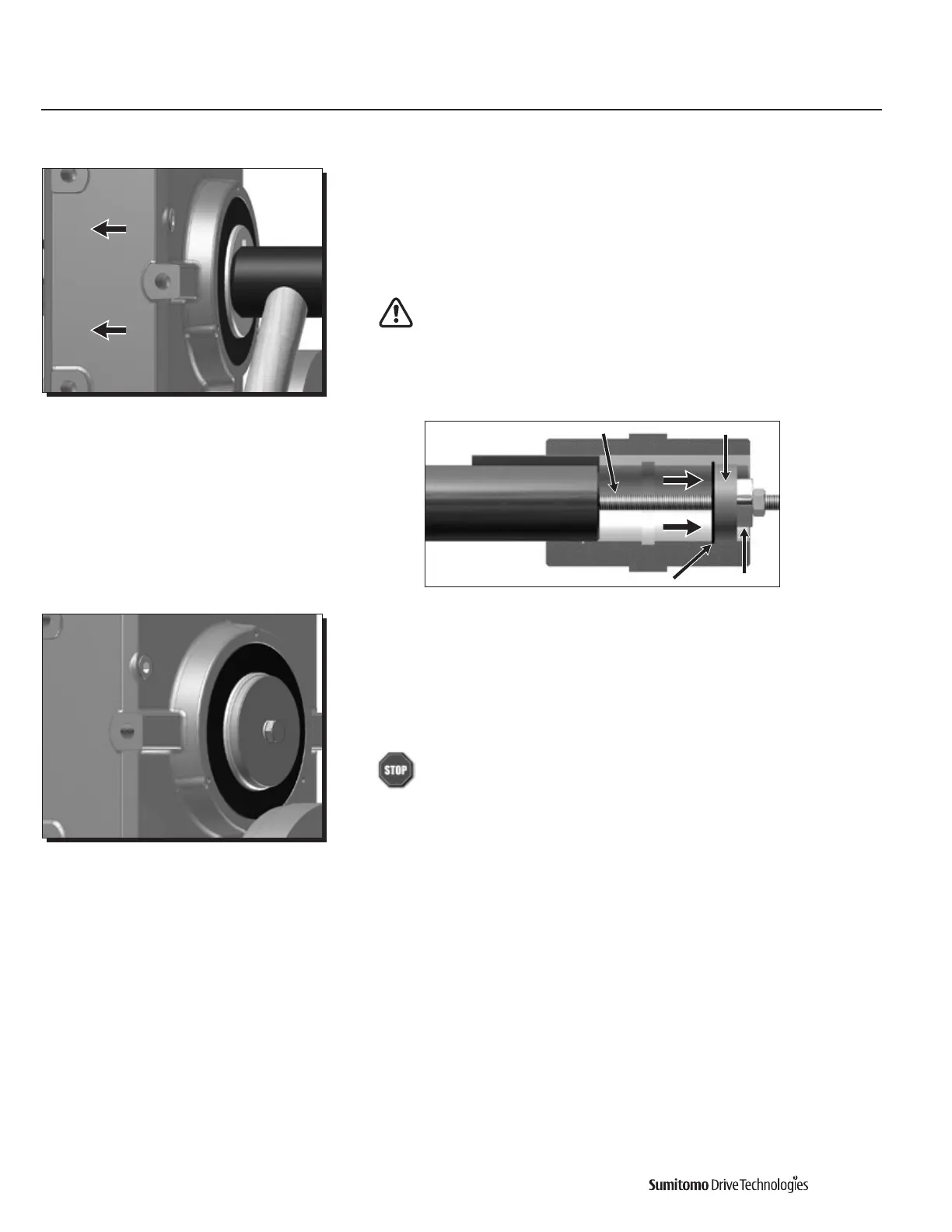

Align the driven shaft with the reducer/gearmotor bore and carefully slide unit onto
the driven shaft.
•Ifthetistight,strikeonthekeyedhollowborewithamallettoassistintheassembly.
Ifusingamalletduringinstallation,strikeonlyagainsttheunit’ssteelkeyed
hollowbore.Donotstrikethereducerhousingoroilseal,damagetothe
bearings, the housing, and/or the seals may occur.
Note: If the fit is tight, you may use a jig such as the one shown here to ease
assembly. Sumitomo Drive Technologies does not supply a mounting
jig. This information is provided for reference only.
4
Oncedrivenshafthasbeencompletelyinsertedintotheunit’skeyedhollowbore,
securetheshaftinplaceusingakeeperplateasshowninthisexample.
Do not operate unit until the torque arm has been attached. Refer to the
Torque Arm Installation section in this manual for instructions.
Installation onto Driven Shaft
Keyed Hollow Bore Installation
Spacer
Retaining Ring
Ball Bearing
Threaded Rod
