Sumitomo Cyclo Helical Buddybox User Manual

Operation & Maintenance Manual 3
Cyclo® HBB
Cyclo® HBB
Delivery
Inspection Upon Delivery
• Inordertoavoidinjury,ensure that the unit is in
the upright positionbeforeunpacking.
• Verify that the unit received matches your
order. Using the incorrect product may cause
equipment damage or personnel injury.
• Do not remove the nameplate from the unit.
Upon delivery, inspect the unit for damage that may have
occurred during shipment. Notify the shipping company
immediately if you find any damage. Do not install or operate a
damaged unit.
Upon receipt of the reducer/gearmotor, verify that:
• themodelnumberontheunitnameplatematchesthe
purchase order
• theunitwasnotdamagedduringshipping
• allboltsandnutsarefullytightened.
Please consult your Sumitomo agent, distributor, or sales office if
you find any defects or if you have any questions.

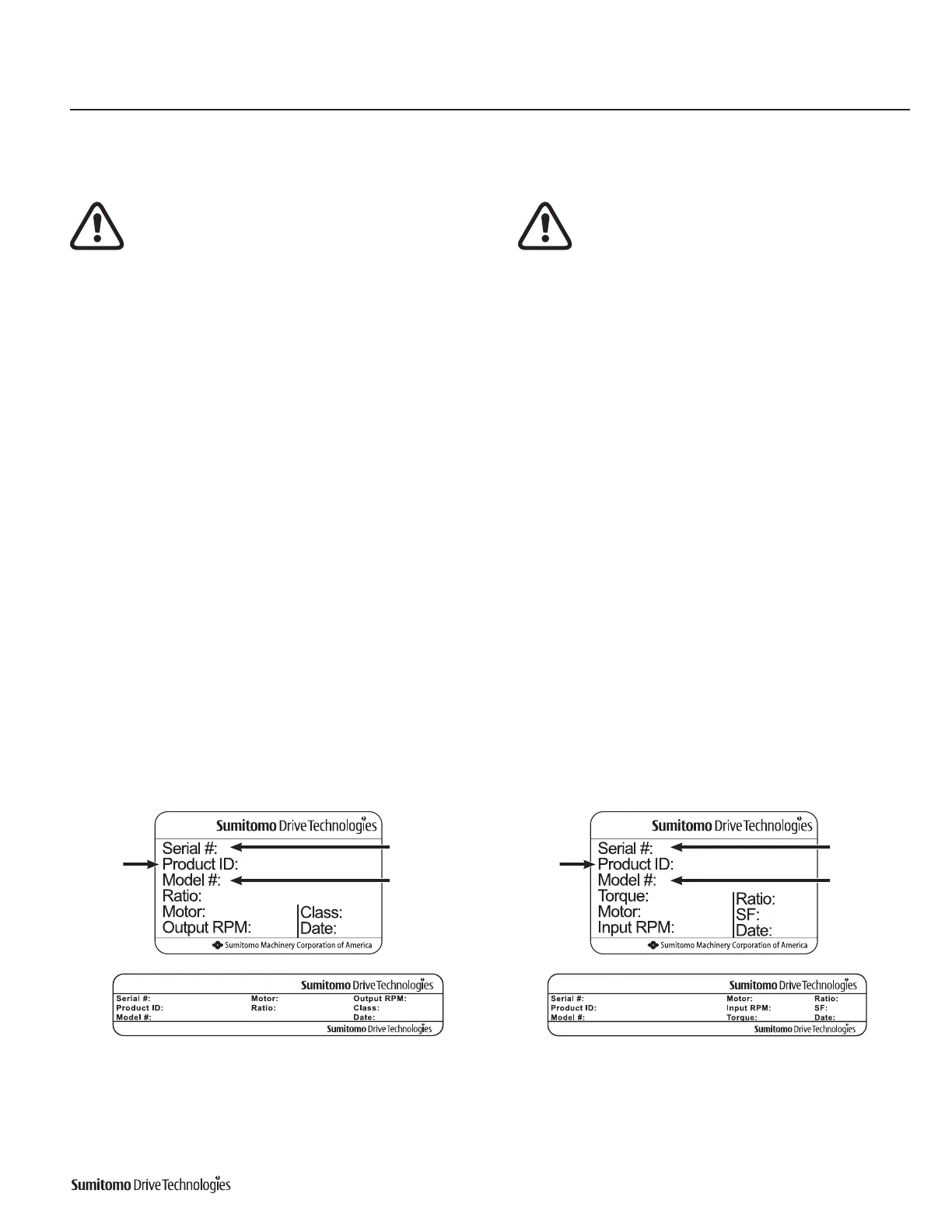

Nameplate Inspection
When contacting Sumitomo about this product, please be
prepared to provide the following information from the reducer/
gearmotor nameplate:
• reducerorgearmotormodelnumber(nomenclature)
• productID
• serialnumber.
Lubrication Inspection
• Oil lubricated units are shipped without oil,
unless the customer specified otherwise when
the unit was ordered. Always fill the unit with
the correct type and quantity of lubricant prior to
operation.
• Some models must be filled with oil in two
separate locations, the Helical Gear portion
(output) and the Cyclo® portion (input).
Refer to the lubrication section in this manual for detailed
lubrication information.
Unit
Product ID
Unit
Product ID
Unit Serial
Number
Unit Model
Number
Unit Serial
Number
Unit Model
Number
Gearmotor Reducer
