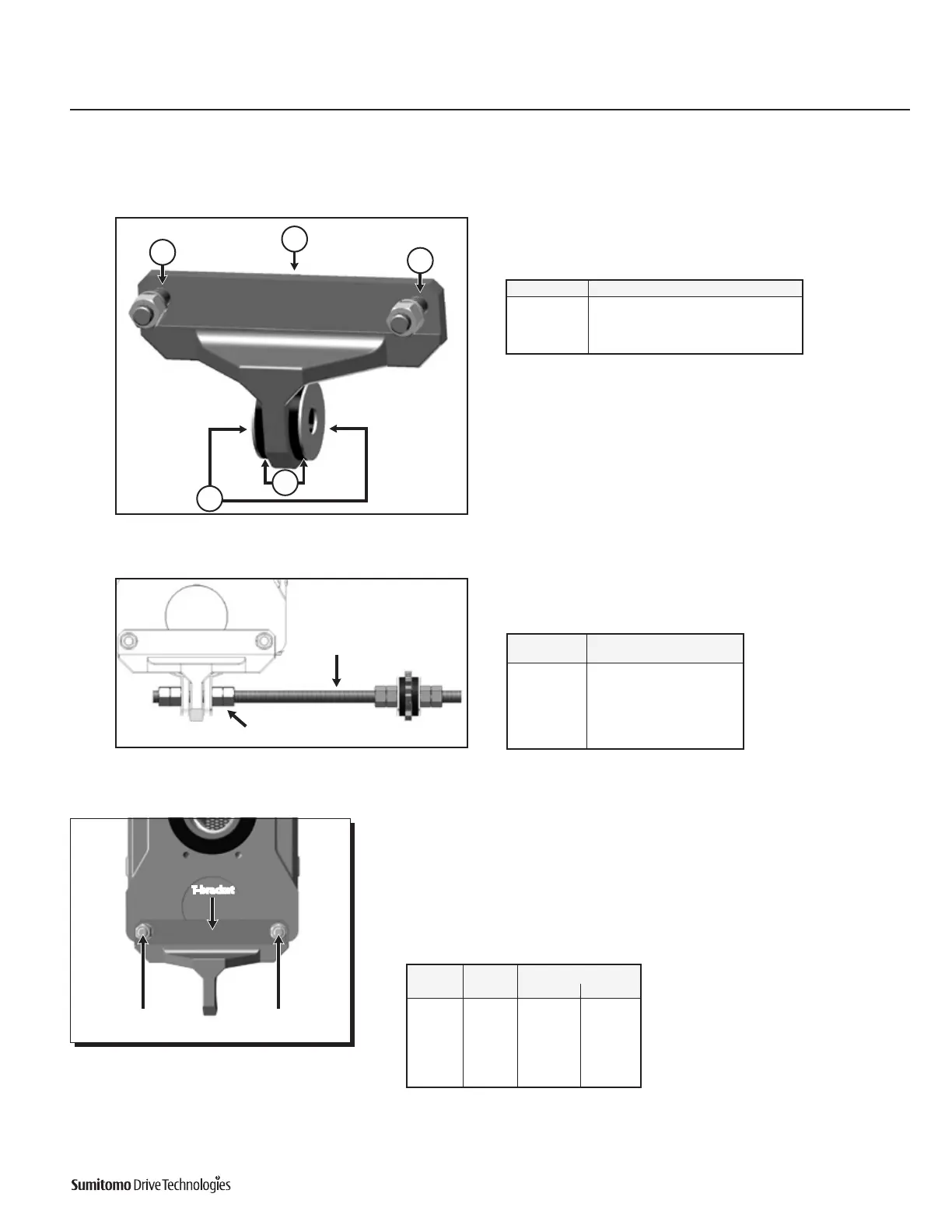

Torque Arm Installation
T-Type Torque Arm
T-Type Torque Arm
Fig. 2 T-Type Torque Arm Parts
Table 6. Sumitomo Supplied T-Type Torque Arm Parts
Fig. 3 Customer Supplied T-Type Torque Arm Parts
Table 7. Recommended Threaded Rod Diameter
1
2
1
4
3
Item Number Description
1 Mounting Hardware (Bolts, Washers, Nuts)
 2 T-Bracket
3 Rubber Bushings
4 Washers
Cyclo® HBB Rod Diameter
 Size (MinimumGrade8.8Steel)
Z M12
A M16
B M20
C M24
D M24
E M30
Threaded Rod
Nuts
Mounting
Bolt
Mounting
Bolt
T-bracket
HBB Bolt Tightening Torque
 Size Size ft•pound N•m
Z M12 40-46 54-62
A M16 92-130 125-176
B M16 92-130 125-176
C M20 191-270 259-366
D M24 330-466 447-632
E M30 655-923 888-1251
T-Type Torque Arm Installation Procedure
1
AttachtheT-BrackettotheCyclo®HBBusingthesuppliedmountinghardware.
Tighten mounting bolts according to the values listed in this table:
Table 8. T-Type Torque Arm Bolt Torques
