Operation & Maintenance Manual 25
Cyclo® HBB
Cyclo® HBB
Lubrication
Oil Quantities
Oil Quantities

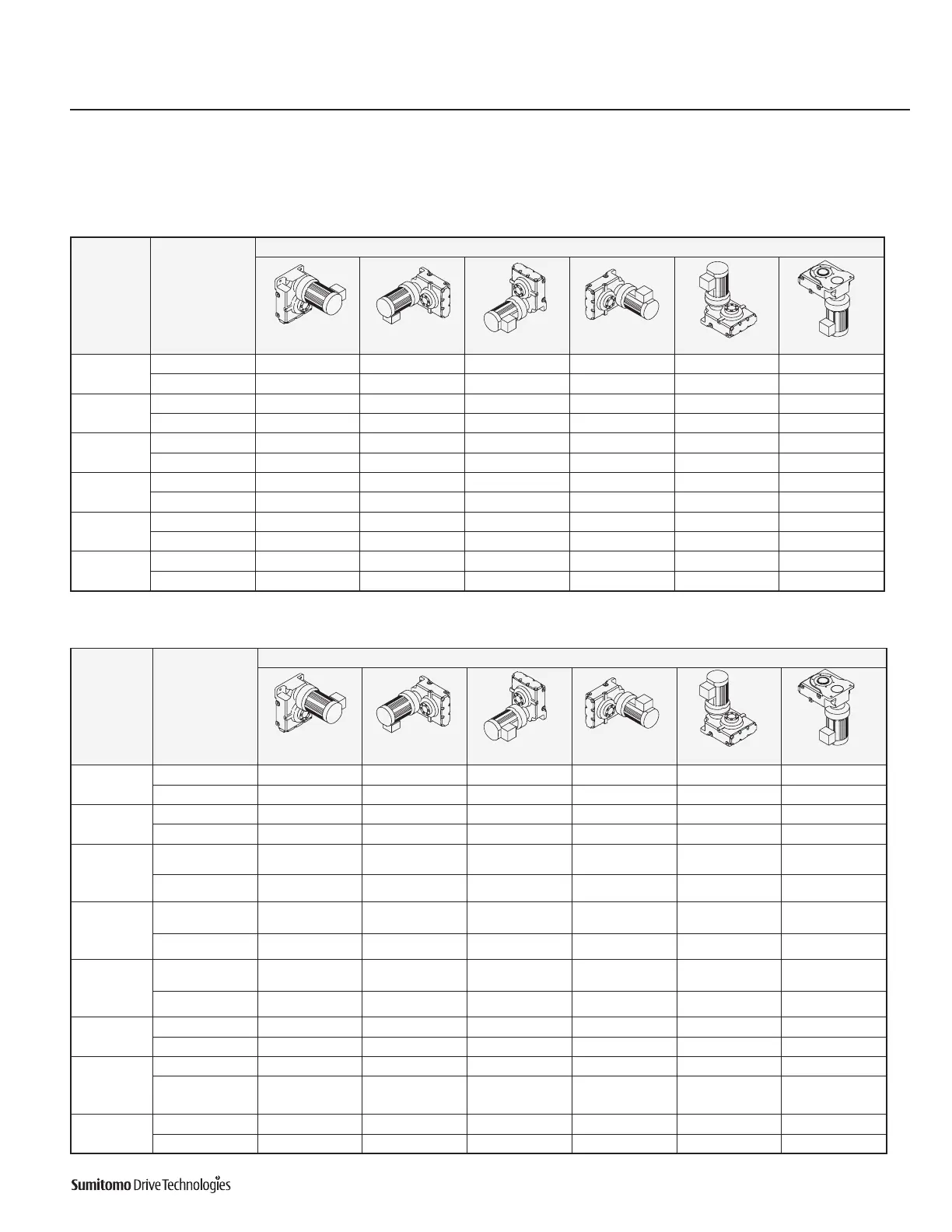

Table 14. Single Reduction Cyclo® - Helical Gear Portion and Cyclo® Portion Approximate Oil Quantity
Units: US liquid quart (liter) NOTE: “G” = Grease Lubricated
Size
Unit
Unit
Lubrication
Portion
Mounting Configuration
Y1 Y2 Y3 Y4 Y5 Y6
Z6090
Z6095
Cyclo® G G G G G G
Helical 0.63 (0.6) 0.63 (0.6) 0.53 (0.5) 0.63 (0.6) 1.16 (1.1) 1.06 (1.0)
A6100
A6105
Cyclo® G G G G G G
Helical 0.85 (0.8) 0.95 (0.9) 0.74 (0.7) 0.95 (0.9) 1.56 (1.5) 1.48 (1.4)
B6120
B6125
Cyclo® G G G G G G
Helical 1.06 (1.0) 1.56 (1.5) 1.06 (1.0) 1.56 (1.5) 2.11 (2.0) 1.90 (1.8)
C6140
C6145
Cyclo® 0.42 (0.4) 0.42 (0.4) 0.42 (0.4) 0.42 (0.4) G G
Helical 1.80 (1.7) 2.22 (2.1) 1.37 (1.3) 2.22 (2.1) 4.97 (4.7) 3.70 (3.5)
D6160
D6165
Cyclo® 0.72 (0.70) 0.72 (0.70) 0.72 (0.70) 0.72 (0.70) G G
Helical 2.85(2.7) 3.70(3.5) 2.11 (2.0) 3.70 (3.5) 7.40 (7.0) 5.81 (5.5)
E6170
E6175
Cyclo® 0.95 (0.90) 0.95 (0.90) 0.95 (0.90) 0.95 (0.90) G G
Helical 3.70 (3.5) 4.44 (4.2) 2.64 (2.5) 4.44 (4.2) 9.51 (9.0) 7.4 (7.0)
Table 15. Double Reduction Cyclo® - Helical Gear Portion and Cyclo® Portion Approximate Oil Quantity
Units: US liquid quart (liter) NOTE: “G” = Grease Lubricated
Size
Unit
Unit
Lubrication
Portion
Mounting Configuration
Y1 Y2 Y3 Y4 Y5 Y6
Z6090DA
Z6095DA
Cyclo® G G G G G G
Helical 0.63 (0.6) 0.63 (0.6) 0.53 (0.5) 0.63 (0.6) 1.16 (1.1) 1.06 (1.0)
A6100DA
A6105DA
Cyclo® G G G G G G
Helical 0.85 (0.8) 0.95 (0.9) 0.74 (0.7) 0.95 (0.9) 1.56 (1.5) 1.48 (1.4)
B6120DA
B6125DA
B6120DB
B6125DB
Cyclo®
G G G G G G
Helical 1.06 (1.0) 1.56 (1.5) 1.06 (1.0) 1.56 (1.5) 2.11 (2.0) 1.90 (1.8)
C6140DA
C6145DA
C6140DB
C6145DB
Cyclo® G G G G G G
Helical 1.80 (1.7) 2.22 (2.1) 1.37 (1.3) 2.22 (2.1) 4.97 (4.7) 3.70 (3.5)
D6160DA
D6165DA
D6160DB
D6165DB
Cyclo® G G G G G G
Helical 2.85 (2.7) 3.70 (3.5) 2.11 (2.0) 3.70 (3.5) 7.40 (7.0) 5.81 (5.5)
D6160DC
D6165DC
Cyclo® 1.48 (1.4) 1.48 (1.4) 1.48 (1.4) 1.48 (1.4) G G
Helical 2.85(2.7) 3.70(3.5) 2.11 (2.0) 3.70 (3.5) 7.40 (7.0) 5.81 (5.5)
E6170DA
E6175DA
E6170DB
E6175DB
Cyclo® G G G G G G
Helical 3.70 (3.5) 4.44 (4.2) 2.64 (2.5) 4.44 (4.2) 9.51 (9.0) 7.4 (7.0)
E6170DC
E6175DC
Cyclo® 1.48 (1.4) 1.48 (1.4) 1.48 (1.4) 1.48 (1.4) G G
Helical 3.70 (3.5) 4.44 (4.2) 2.64 (2.5) 4.44 (4.2) 9.51 (9.0) 7.4 (7.0)
