Cyclo® Portion Disassembly/Assembly
Cyclo® Disassembly and Reassembly Procedures
14

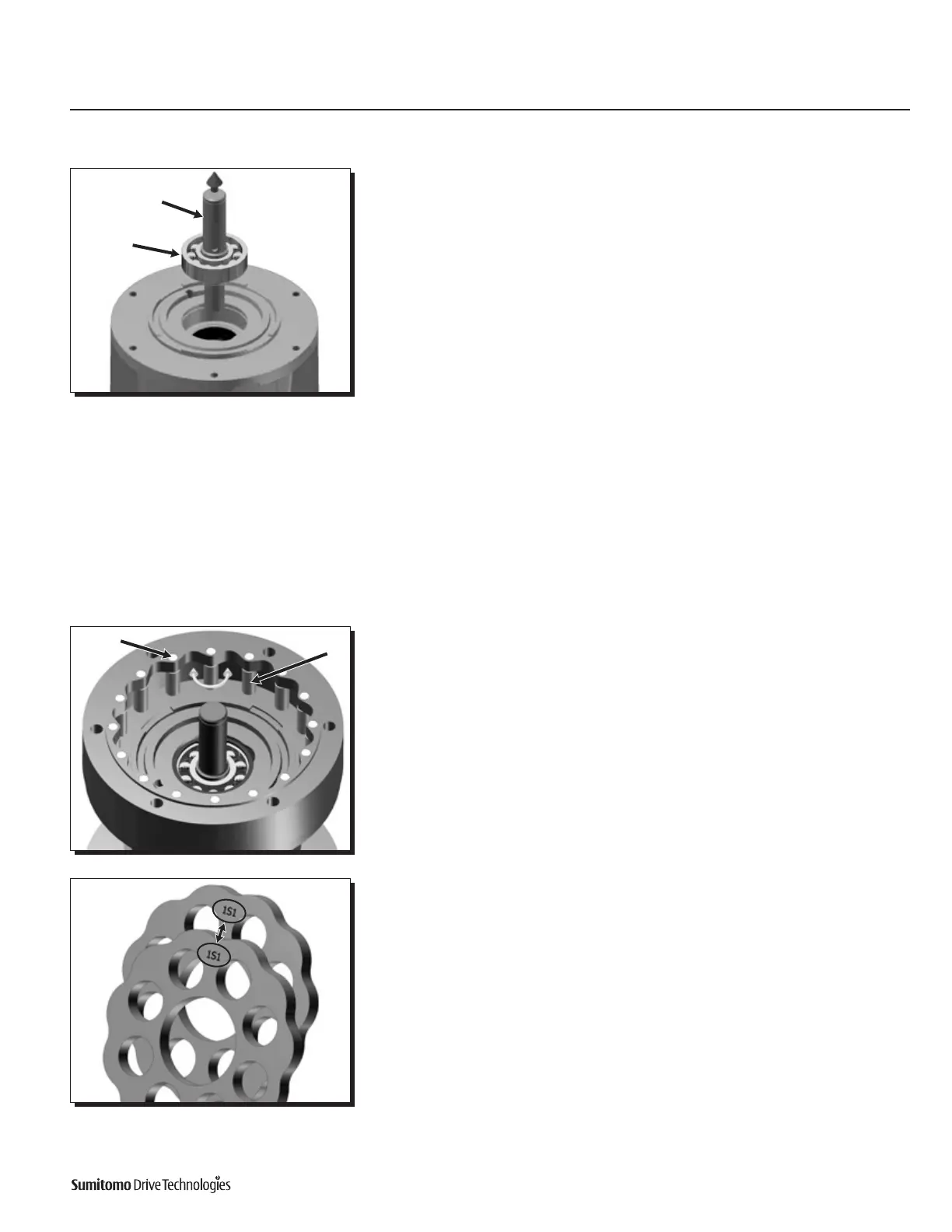

Remove the high speed shaft, along with its associated bearing, from the high
speed end shield.
High Speed Shaft
Bearing
Cyclo Reassembly Procedure
The Cyclo® portion of the speed reducer may be reassembled by reversing the disassembly procedure. All parts must be returned to the
originalorderfromwhichtheywereremovedduringdisassembly.Takecaretokeepthemovingreductioncomponentsfreeofdustorforeign
material,andproperlyalignallgasketsinordertokeeptheassemblyoiltight/leakfree.
Remember these important notes when assembling the Cyclo® reducer:
1
Place the ring gear housing on the Cyclo® high speed end shield (or the motor
flange) and insert the ring gear housing pins and rollers (if they had been removed
during the disassembly process). Rotate each of the pins and rollers by hand to
assure that they freely move/rotate.
If the Cyclo® portion of the HBB is grease lubricated, liberally apply grease to the ring
gear pins and rollers before they are inserted into the ring gear housing.
2
Cycloid discs are a matched pair. Each disc has the same code etched on one side.
When inserting these discs into the ring gear housing, be sure that the etched
number is facing up.
Pin
Roller
