Cyclo® Portion Disassembly/Assembly
Cyclo® Disassembly Procedure
10

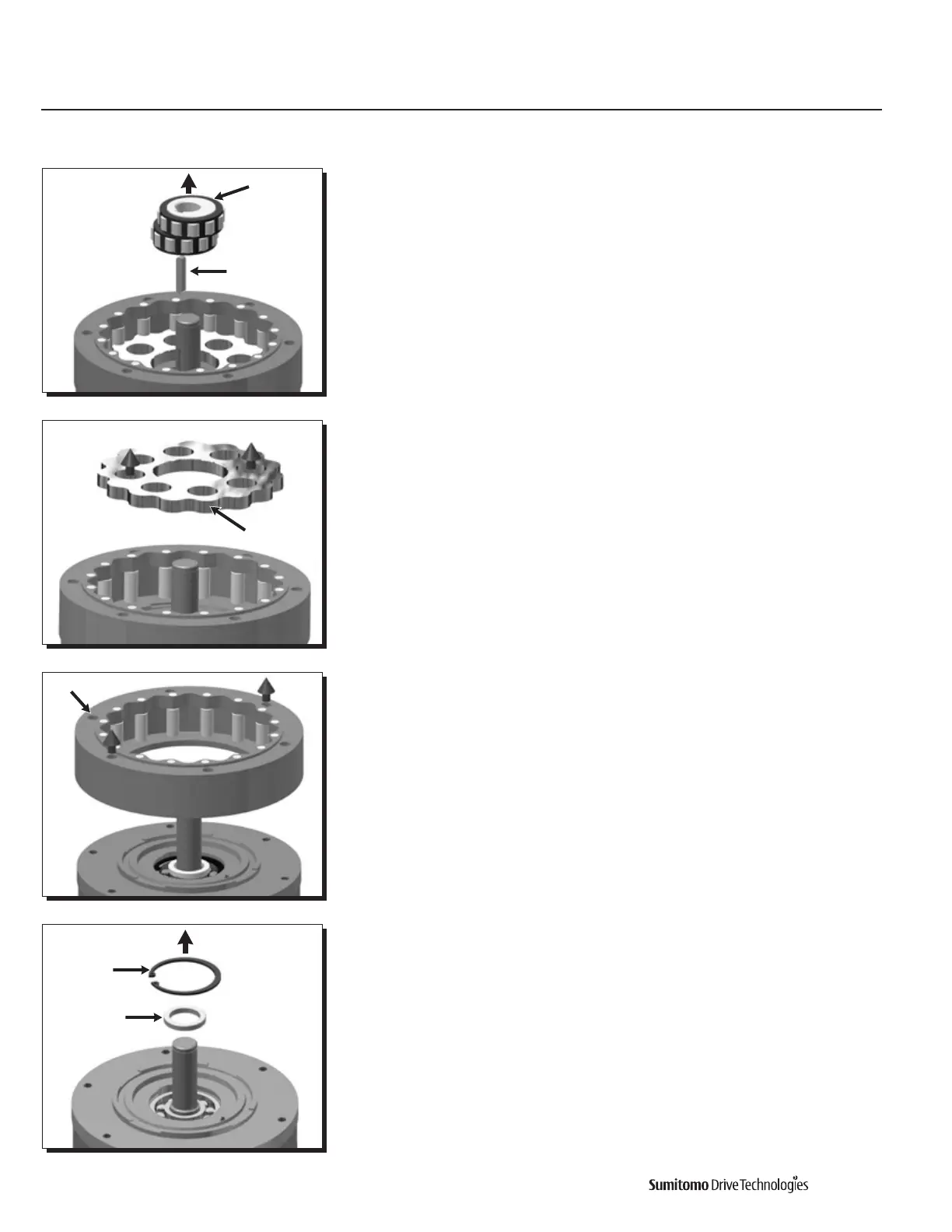

Remove the eccentric bearing from the high-speed shaft
11
Using both hands, carefully remove the remaining Cycloid disc.
12
Remove the ring gear housing
13
Remove the spacer and the snap ring from the high speed end shield.
Key
Eccentric
Bearing
Cycloid Disc
Ring Gear Housing
Spacer
Snap Ring
