Lubrication
Grease Quantities
Grease Quantities
•GreasequantitieslistedinthissectionarefortheCyclo®portionofthereducer/gearmotor.
•TheHelicalportionisalwaysoillubricated.
•RefertotheHelical Gear Portion and Cyclo® Portion Recommended Oils section for Helical portion oil quantities.

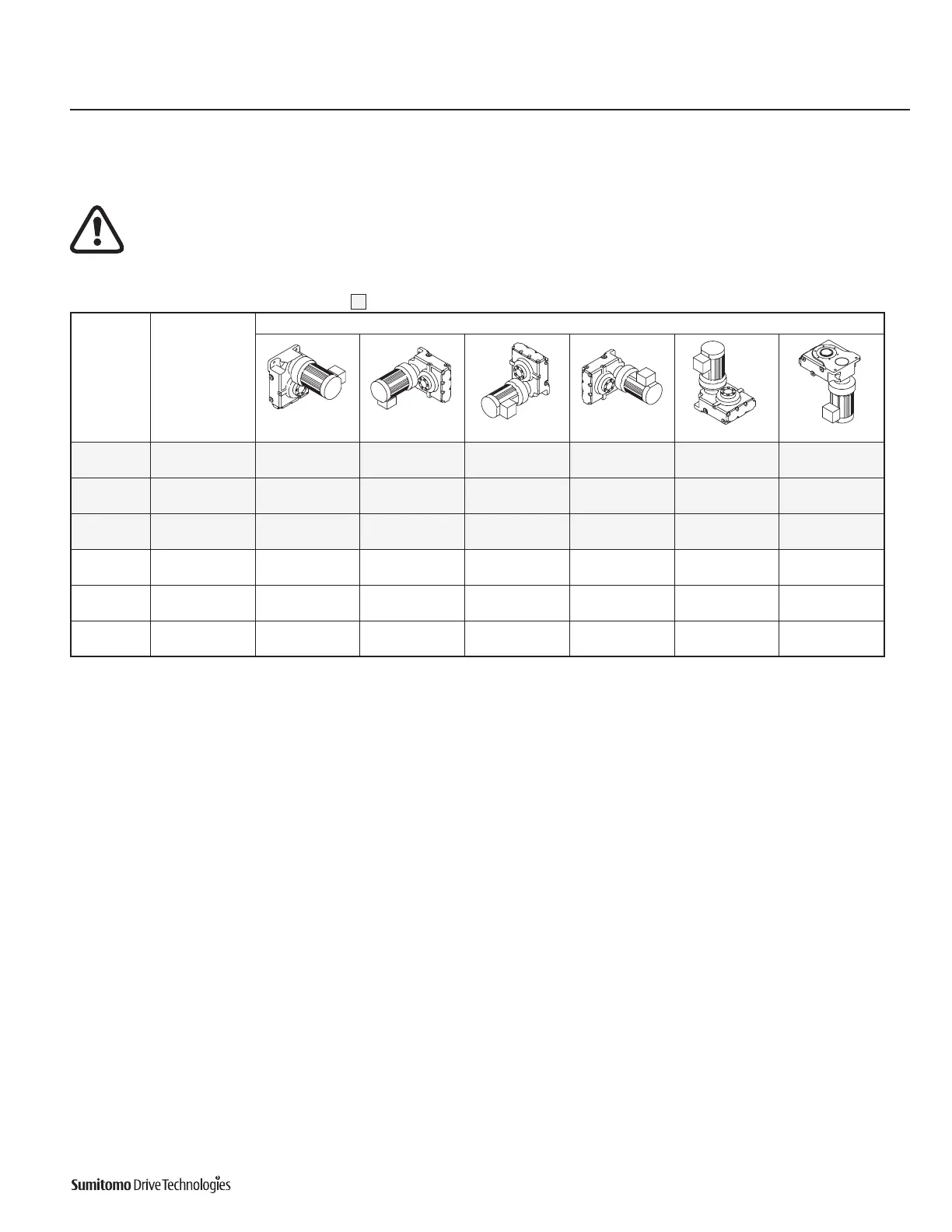

Table 17. Single Reduction Cyclo® - Cyclo® Portion Approximate Grease Quantity
Units: ounce (gram) NOTE: “L” = Oil Lubricated, = Maintenance-Free Grease Model
Size
Unit
Unit
Lubrication
Portion
Mounting Configuration
Y1 Y2 Y3 Y4 Y5 Y6
Z6090
Z6095
Cyclo® 2.12 (60) 2.12 (60) 2.12 (60) 2.12 (60) 2.12 (60) 2.12 (60)
A6100
A6105
Cyclo® 4.23 (120) 4.23 (120) 4.23 (120) 4.23 (120) 4.23 (120) 4.23 (120)
B6120
B6125
Cyclo® 8.82 (250) 8.82 (250) 8.82 (250) 8.82 (250) 8.82 (250) 8.82 (250)
C6140
C6145
Cyclo® L L L L 15.87 (450) 15.87 (450)
D6160
D6165
Cyclo® L L L L 26.46 (750) 26.46 (750)
E6170
E6175
Cyclo® L L L L 35.27 (1000) 35.27 (1000)
