Cyclo® HBB
28 Operation & Maintenance Manual
Cyclo® HBB
Lubrication
Grease Quantities

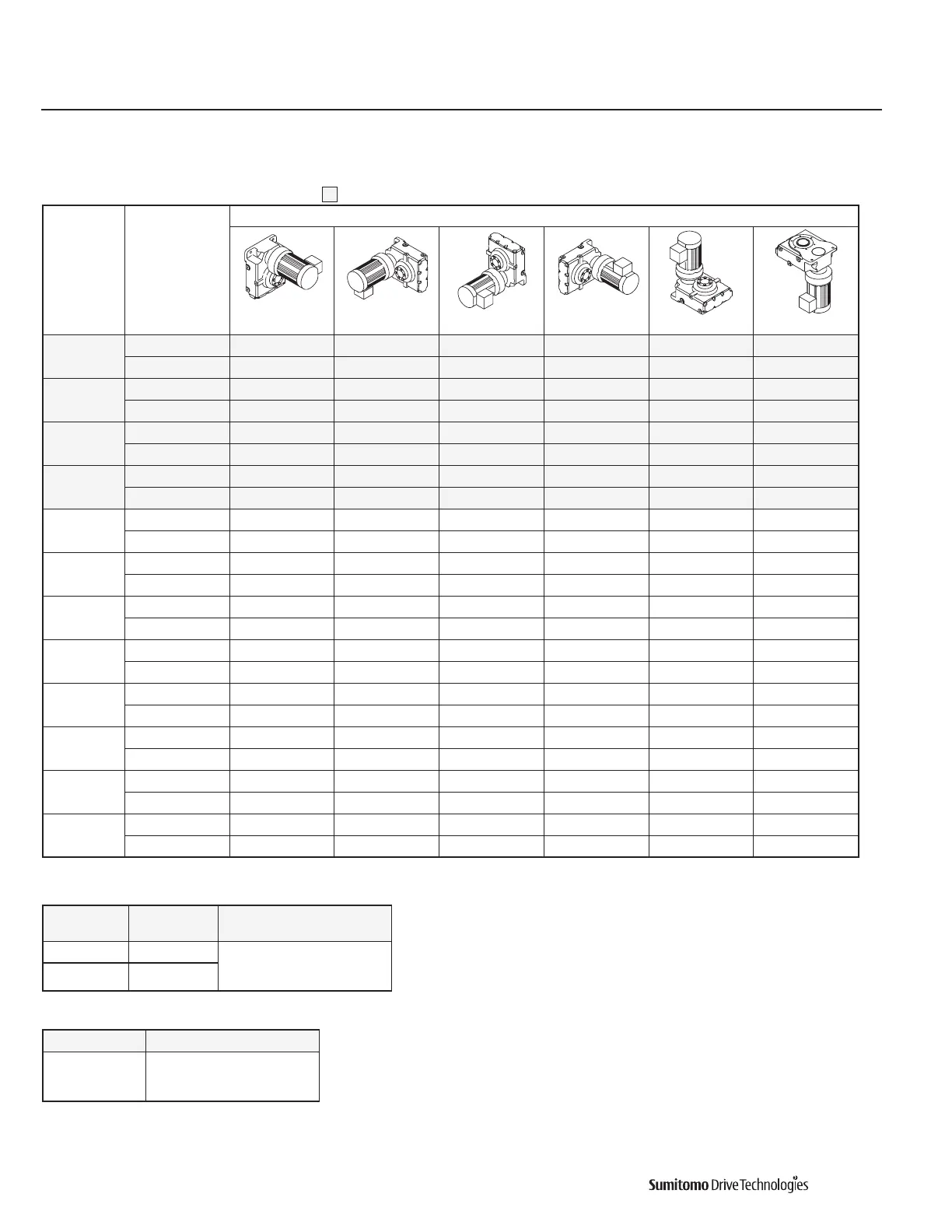

Table 18. Double Reduction Cyclo® - Cyclo® Portion Approximate Grease Quantity
Units: ounce (gram) NOTE: “L” = Oil Lubricated, = Maintenance-Free Grease Model
Size
Unit
Cyclo® Stage
Mounting Configuration
Y1 Y2 Y3 Y4 Y5 Y6
Z6090DA
Z6095DA
First (Input) 0.88 (25) 0.88 (25) 0.88 (25) 0.88 (25) 0.88 (25) 0.88 (25)
Second 2.12 (60) 2.12 (60) 2.12 (60) 2.12 (60) 2.12 (60) 2.12 (60)
A6100DA
A6105DA
First (Input) 0.88 (25) 0.88 (25) 0.88 (25) 0.88 (25) 0.88 (25) 0.88 (25)
Second 4.23 (120) 4.23 (120) 4.23 (120) 4.23 (120) 4.23 (120) 4.23 (120)
B6120DA
B6125DA
First (Input) 0.88 (25) 0.88 (25) 0.88 (25) 0.88 (25) 0.88 (25) 0.88 (25)
Second 8.82 (250) 8.82 (250) 8.82 (250) 8.82 (250) 8.82 (250) 8.82 (250)
B6120DB
B6125DB
First (Input) 2.12 (60) 2.12 (60) 2.12 (60) 2.12 (60) 2.12 (60) 2.12 (60)
Second 8.82 (250) 8.82 (250) 8.82 (250) 8.82 (250) 8.82 (250) 8.82 (250)
C6140DA
C6145DA
First (Input) 0.88 (25) 0.88 (25) 0.88 (25) 0.88 (25) 0.88 (25) 0.88 (25)
Second 15.87 (450) 15.87 (450) 15.87 (450) 15.87 (450) 15.87 (450) 15.87 (450)
C6140DB
C6145DB
First (Input) 2.12 (60) 2.12 (60) 2.12 (60) 2.12 (60) 2.12 (60) 2.12 (60)
Second 15.87 (450) 15.87 (450) 15.87 (450) 15.87 (450) 15.87 (450) 15.87 (450)
D6160DA
D6165DA
First (Input) 2.12 (60) 2.12 (60) 2.12 (60) 2.12 (60) 2.12 (60) 2.12 (60)
Second 26.46 (750) 26.46 (750) 26.46 (750) 26.46 (750) 26.46 (750) 26.46 (750)
D6160DB
D6165DB
First (Input) 4.23 (120) 4.23 (120) 4.23 (120) 4.23 (120) 4.23 (120) 4.23 (120)
Second 26.46 (750) 26.46 (750) 26.46 (750) 26.46 (750) 26.46 (750) 26.46 (750)
D6160DC
D6165DC
First (Input) L L L L 8.82 (250) 8.82 (250)
Second L L L L 26.46 (750) 26.46 (750)
E6170DA
E6175DA
First (Input) 2.12 (60) 2.12 (60) 2.12 (60) 2.12 (60) 2.12 (60) 2.12 (60)
Second 35.27 (1000) 35.27 (1000) 35.27 (1000) 35.27 (1000) 35.27 (1000) 35.27 (1000)
E6170DB
E6175DB
First (Input) 4.23 (120) 4.23 (120) 4.23 (120) 4.23 (120) 4.23 (120) 4.23 (120)
Second 35.27 (1000) 35.27 (1000) 35.27 (1000) 35.27 (1000) 35.27 (1000) 35.27 (1000)
E6170DC
E6175DC
First (Input) L L L L 8.82 (250) 8.82 (250)
Second L L L L 35.27 (1000) 35.27 (1000)
Table19.GreaseReplenishmentIntervals(Forunitsotherthanmaintenance-freegrease)
Hours of
operation
Replenishment
interval
Remarks
10 hr max./day 3 – 6 months Shorten the supply interval when
the operating conditions are
severe or the frame size is large.
10 – 24 hr/day 500 – 1000 hrs
Table20.GreaseReplacementIntervals(Forunitsotherthanmaintenance-freegrease)
Change interval Remarks
Every 20,000 hrs or
3 – 5 years
Shorten the supply interval when
the operating conditions are
severe or the frame size is large.
