Lubrication
Determining Lubrication Method
Sumitomo Cyclo® HBBs are shipped from the factory without lubricating oil, unless the customer specified otherwise when the
unit was ordered.
For some unit sizes and mounting configurations, the Cyclo® portion is filled at the factory with maintenance-free grease. For
these units, the Cyclo® portion does not need to be filled with lubricant before start-up. Refer to the Lubrication Method section
for details.
The unit must contain the correct type and amount of lubrication before operating.
For the Cyclo® HBB, the Cyclo® and the helical gear portions must be filled with lubricant separately and maintained separately.
Lubricant does not flow from one section to the other.

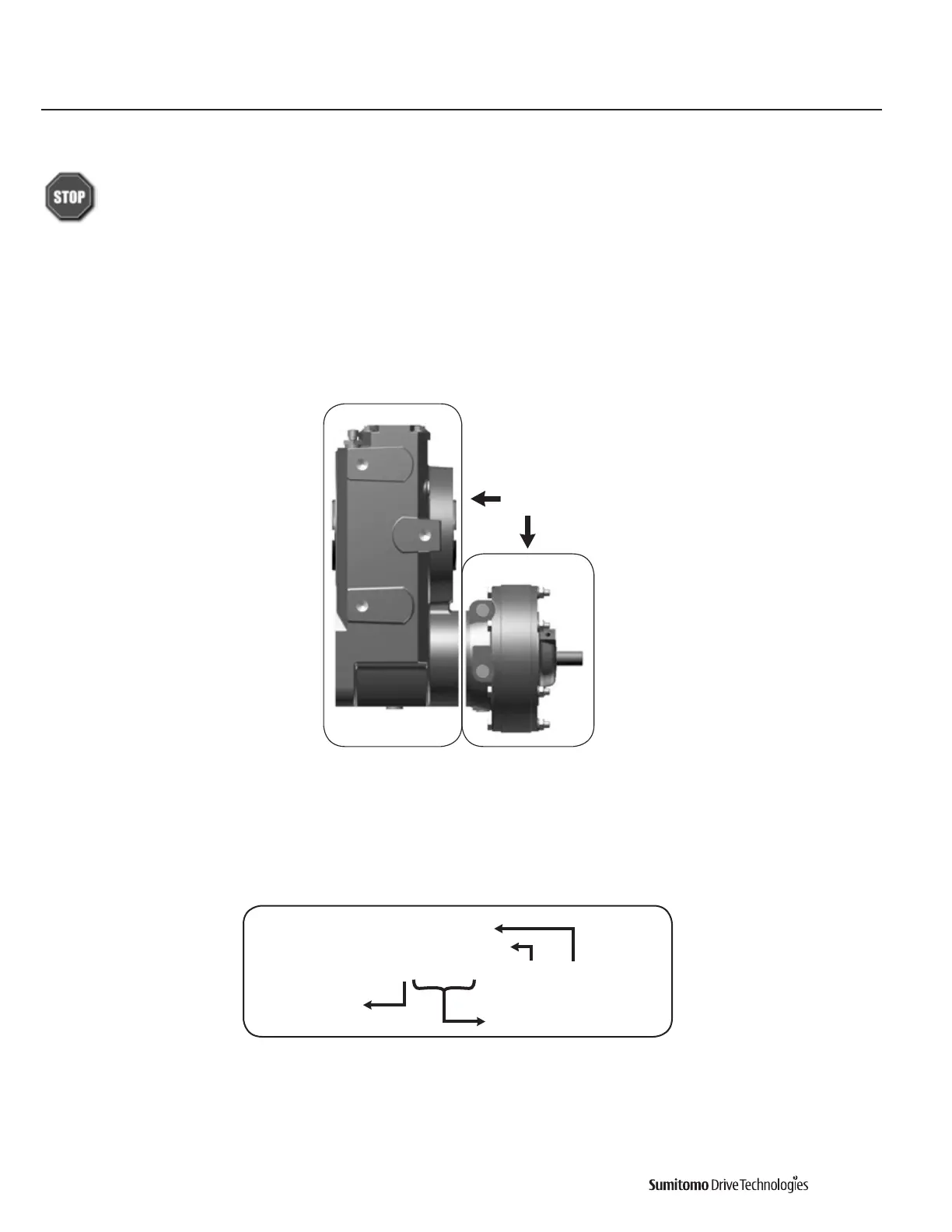

Unit Nomenclature
Refer to the Model portion of the unit’s nameplate to determine the unit size, reduction ratio, and mounting configuration:
Cyclo® Portion
Helical Gear Portion
Separate
Lubrication
Reduction Ratio (nominal)
Unit Mounting Configuration
EHYJ-Z6095 Y-Y1- 21
Helical Gear Size
Cyclo® Size
