Lubrication Method

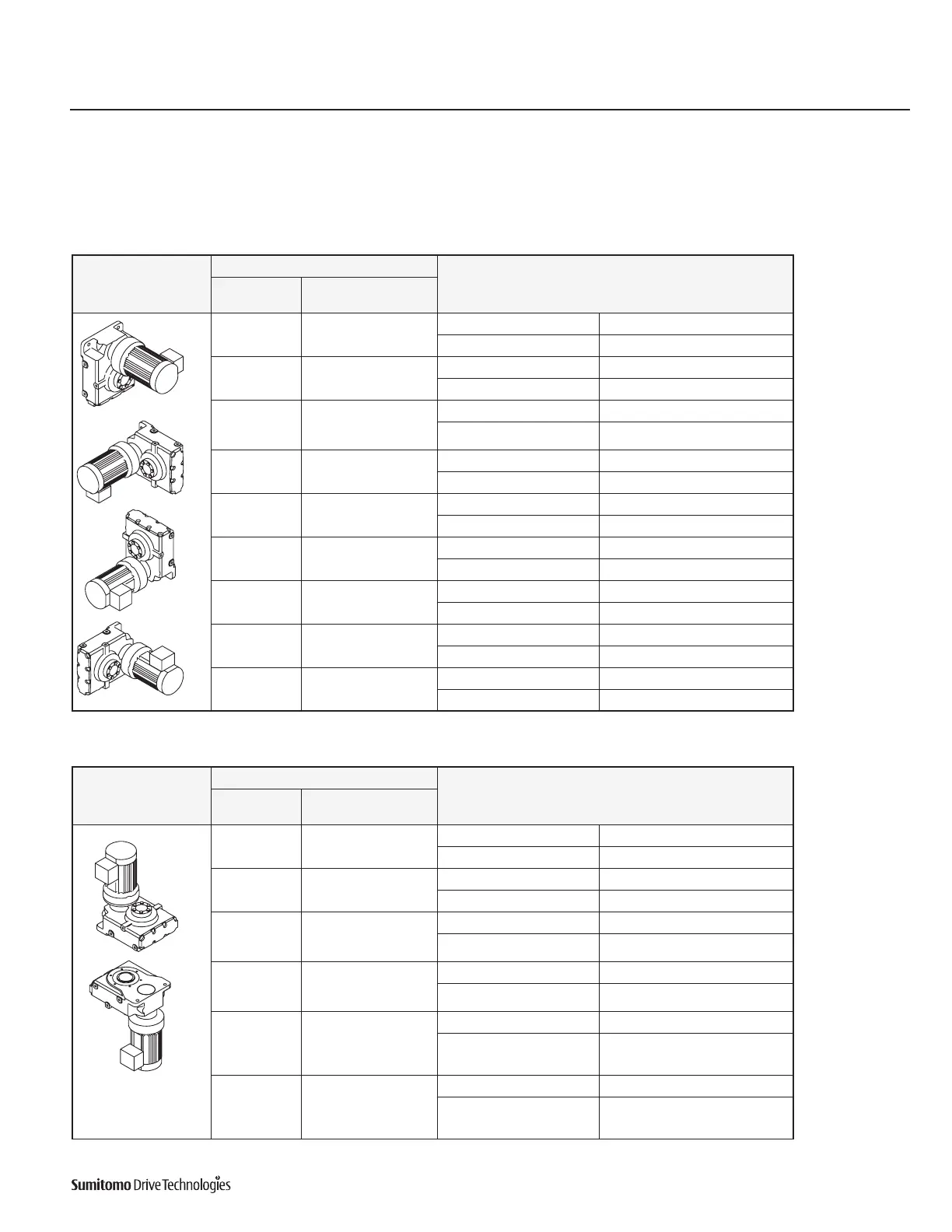

Using the model number and mounting configuration, refer to Tables 9 and 10 to determine the unit’s lubrication method.
Table 9. Lubrication Method for Configurations Y1 – Y4
Mounting Configuration
Unit Size
Lubrication Method
Helical
Gear Size
Cyclo® Size
Z
6090, 6095
6090DA, 6095DA
Cyclo® Portion: Maintenance-Free Grease
Helical Gear Portion: Oil
A
6100, 6105
6100DA, 6105DA
Cyclo® Portion: Maintenance-Free Grease
Helical Gear Portion: Oil
B
6120, 6125
6120DA, 6125DA
6120DB, 6125DB
Cyclo® Portion: Maintenance-Free Grease
Helical Gear Portion: Oil
C 6140, 6145
Cyclo® Portion: Oil
Helical Gear Portion: Oil
C
6140DA, 6145DA
6140DB, 6145DB
Cyclo® Portion: Grease
Helical Gear Portion: Oil
D
6160, 6165
6160DC, 6165DC
Cyclo® Portion: Oil
Helical Gear Portion: Oil
D
6160DA, 6165DA
6160DB, 6165DB
Cyclo® Portion: Grease
Helical Gear Portion: Oil
E
6170, 6175
6170DC, 6175DC
Cyclo® Portion: Oil
Helical Gear Portion: Oil
E
6170DA, 6175DA
6170DB, 6175DB
Cyclo® Portion: Grease
Helical Gear Portion: Oil
Table 10. Lubrication Method for Configurations Y5, Y6
Mounting Configuration
Unit Size
Lubrication Method
Helical
Gear Size
Cyclo® Size
Z
6090, 6095
6090DA, 6095DA
Cyclo® Portion: Maintenance Free Grease
Helical Gear Portion: Oil
A
6100, 6105
6100DA, 6105DA
Cyclo® Portion: Maintenance Free Grease
Helical Gear Portion: Oil
B
6120, 6125
6120DA, 6125DA
6120DB, 6125DB
Cyclo® Portion: Maintenance Free Grease
Helical Gear Portion: Oil
C
6140, 6145
6140DA, 6145DA
6140DB, 6145DB
Cyclo® Portion: Grease
Helical Gear Portion: Oil
D
6160, 6165
6160DA, 6165DA
6160DB, 6165DB
6160DC, 6165DC
Cyclo® Portion: Grease
Helical Gear Portion: Oil
E
6170, 6175
6170DA, 6175DA
6170DB, 6175DB
6170DC, 6175D
Cyclo® Portion: Grease
Helical Gear Portion: Oil
