Cyclo® HBB Reducer

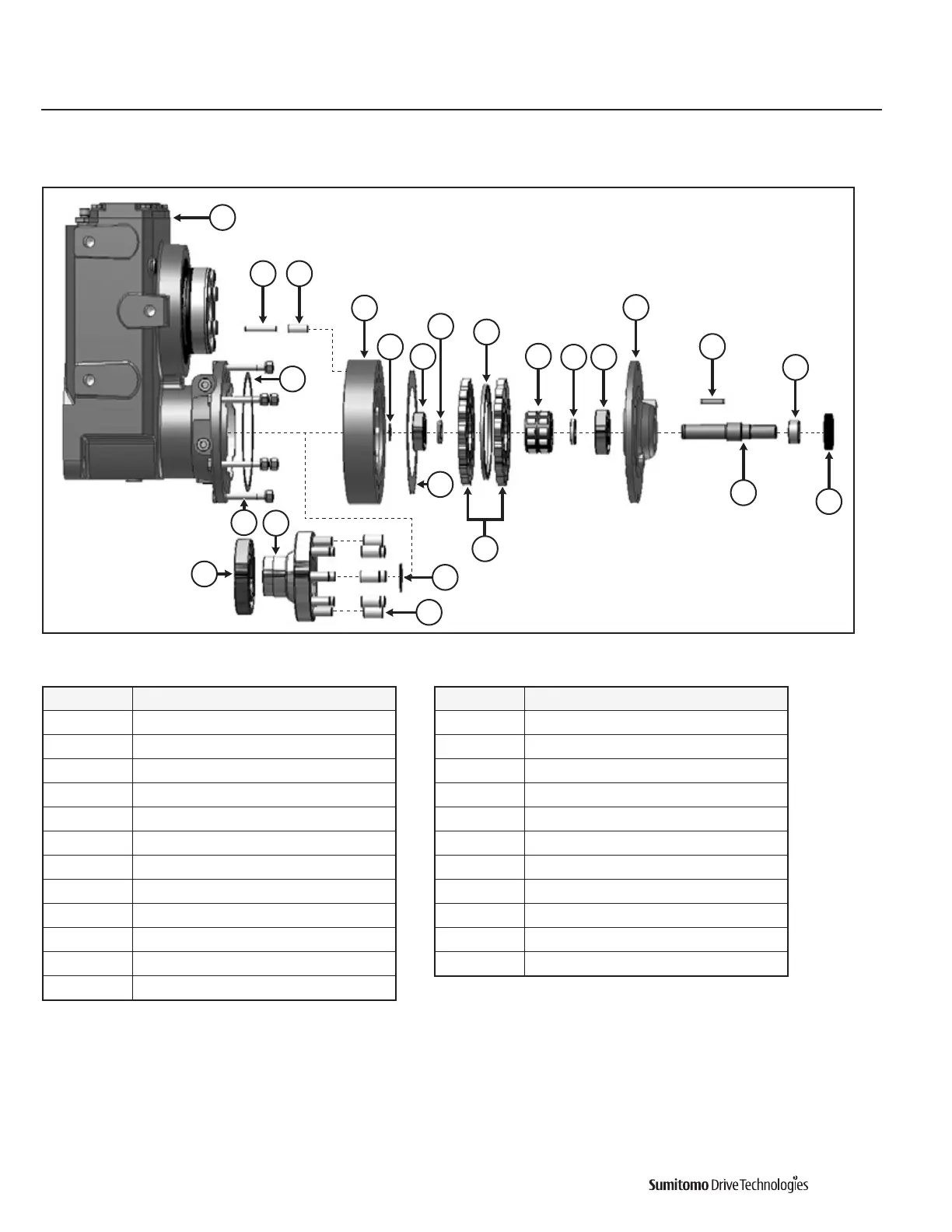

Fig. 6 Cyclo® HBB Reducer Parts
Table 21. Cyclo® HBB Reducer Parts
Number
Description
1 HBB Gear Assembly
2 Cyclo® Ring Gear Housing Pins
3 Cyclo® Ring Gear Housing Rollers
4 GasketSet
5 Cyclo® Ring Gear Housing
6 Snap Ring
7 High-Speed Shaft A Bearing
8 Spacer
9 Cycloid Disc Spacer
10 Cyclo® Eccentric Cam Assembly
11 Spacer
12 High Speed Shaft B Bearing
2
1
3
21
5
6
7
8
9
10
11
12
14
13
15
17
4
19
20
23
22
4
16
18
Number
Description
13 Cyclo® High-Speed End Shield
14 Eccentric Key
15 High Speed Shaft Oil Seal Collar
16 High Speed Shaft Oil Seal
17 High Speed Shaft
18 Cycloid Discs
19 Snap Ring
20 Pin Carrier Rollers
21 Pin Carrier
22 Cyclo® Housing Bolt/Washer/Nut set
23 Pinion Shaft B Bearing
