Parts
Cyclo® HBB Reducer
Table 22. Cyclo Reduction Component Parts
(Table 22 continued on next page.)
Model
Reduction Ratio Part Numbers
Overall Cyclo® Cyclo® Disc Eccentric Cam
Z6090
Z6095
21 6 AN9923G AP1425G
28 8 AN9924G AP1426G
39 11 AN9925G AP1426G
46 13 AN9926G AP1426G
53 15 AN9927G AP1426G
60 17 AN9928G AP1427G
74 21 AN9929G AP1428G
88 25 CN316LG AP0017G
102 29 BQ418LG AP0017G
123 35 BQ419LG AP0018G
151 43 BQ420LG AP0019G
179 51 CN317LG AP0020G
207 59 BQ421LG AP0021G
249 71 CN318LG AP0022G
305 87 CN257G AP0023G
417 119 CN259LG AP0024G
A6100
A6105
21 6 AN9930G AP0025G
28 8 AN9931G AP0025G
39 11 AN9925G AP0026G
46 13 AN9926G AP0026G
53 15 AN9927G AP0026G
60 17 AN9928G AP0027G
74 21 AN9929G AP0028G
88 25 CN316LG AP0029G
102 29 BQ418LG AP0029G
123 35 BQ419LG AP0030G
151 43 BQ420LG AP0031G
179 51 CN317LG AP0032G
207 59 BQ421LG AP0033G
249 71 CN318LG AP0034G
305 87 CN257LG AP0035G
417 119 CN259LG AP0036G
Eccentric Cam
CycloidDisc(Quantity=1)
Reduction Component Part Numbers

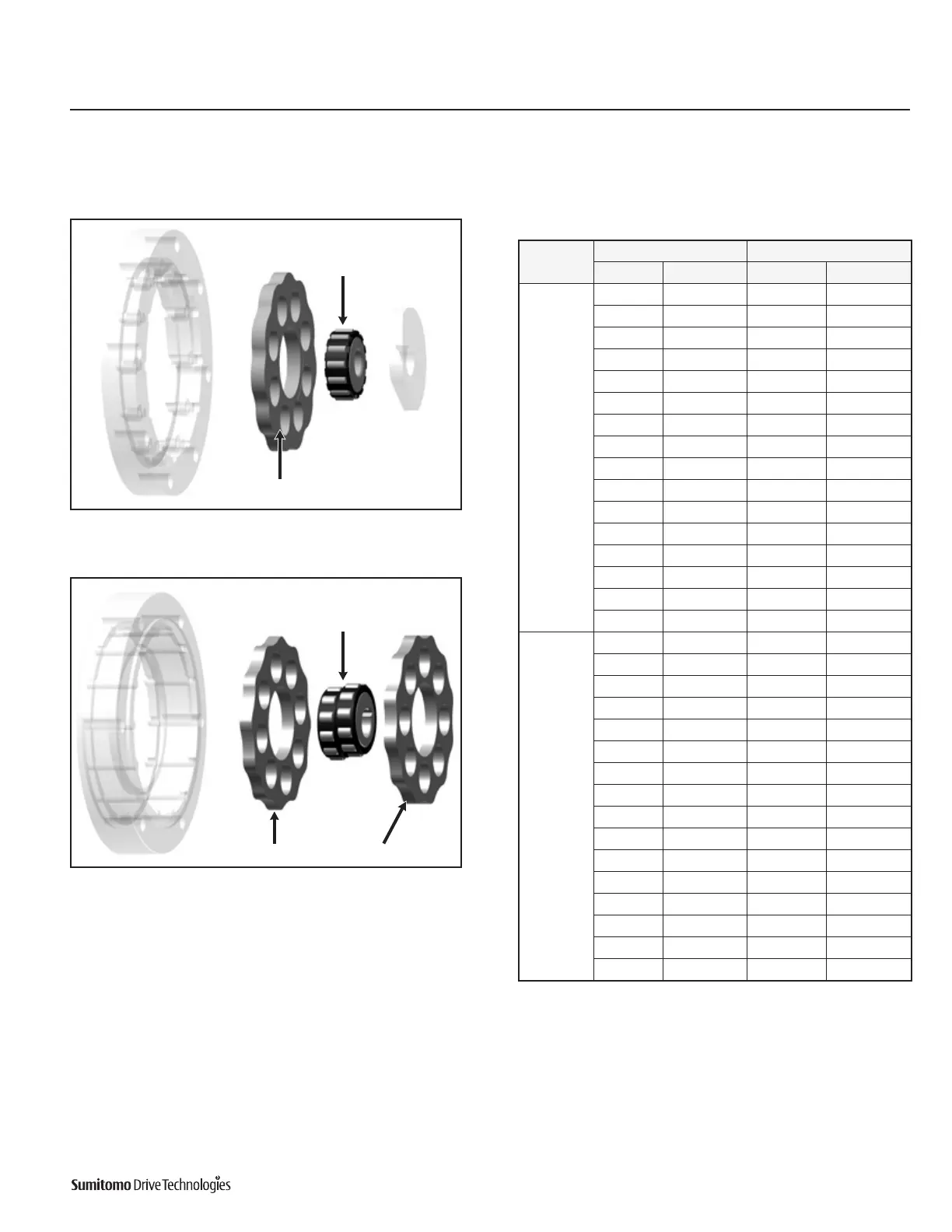

Fig. 7 Typical Cyclo® Reduction Components – Z6090 & Z6095
Fig. 8 Typical Cyclo® Reduction Components – A6100 thru E6175
Eccentric Cam
CycloidDisc(Quantity=2)
