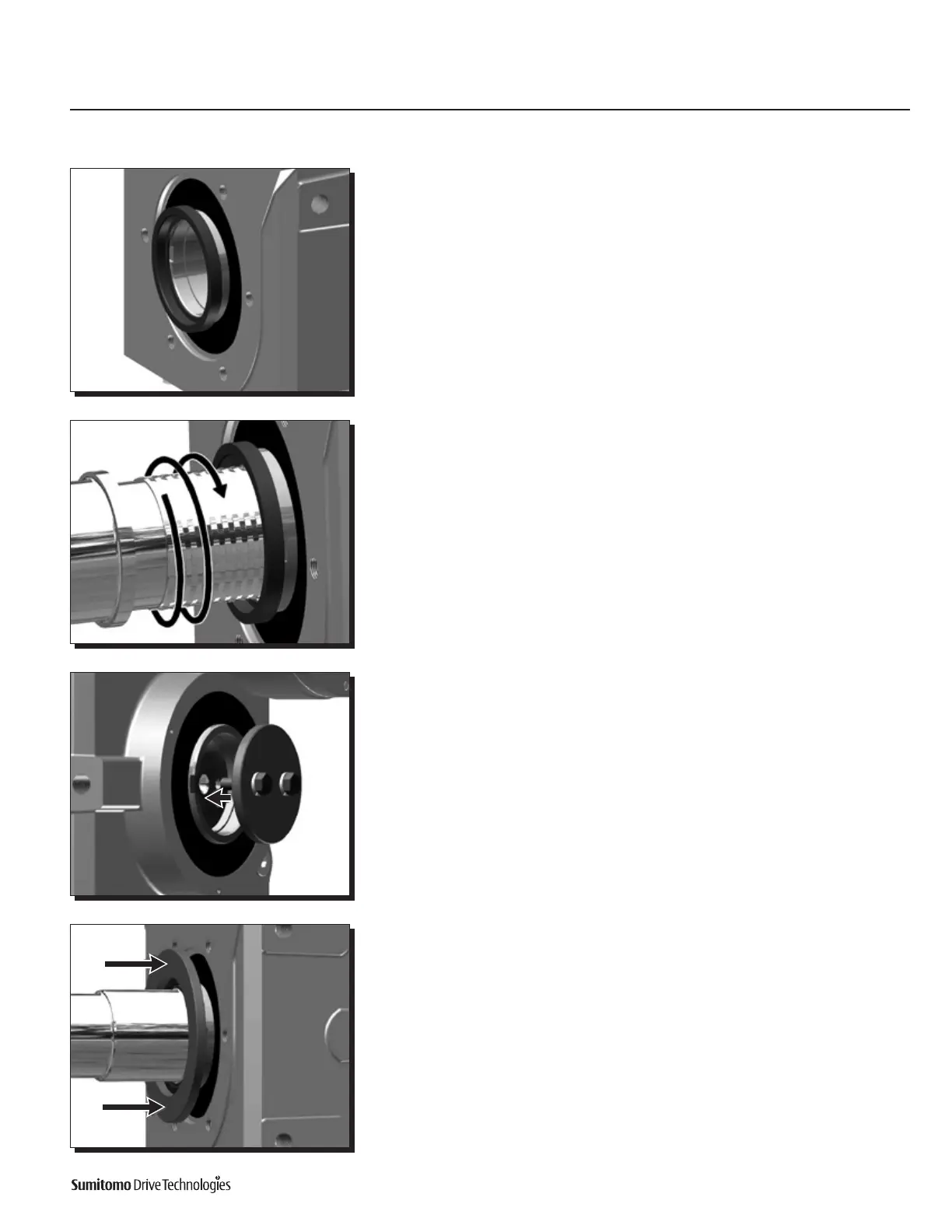

For Screw Conveyor Kits equipped with a shaft collar, place the shaft collar onto the
output hub of the Cyclo® HBB.
2
Thread the screw conveyor shaft completely into the Cyclo® HBB output hub.
3
Secure the screw conveyor shaft in place using the keeper plate with the supplied
hardware.
4
For units equipped with an adapter plate, carefully slide the adapter plate over the
screw conveyor shaft and place it against the output bore of the Cyclo® HBB.
Cyclo® HBB Screw Conveyor Option
Assembly Instructions
