Cyclo® HBB
Operation & Maintenance Manual 41
Cyclo® HBB
Cyclo® Portion Disassembly/Assembly

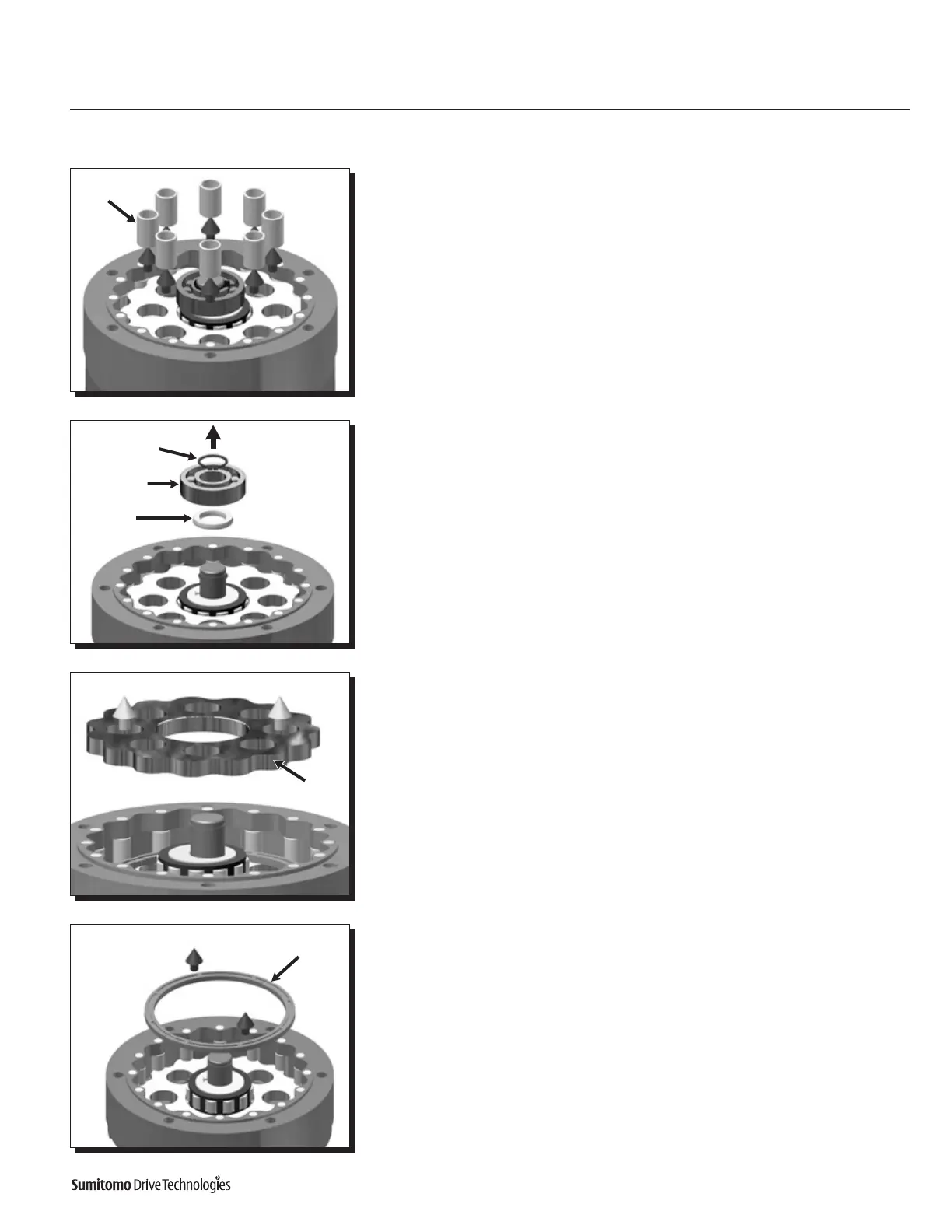

Cyclo® Disassembly Procedure
6
Remove the slow speed rollers.Additionally,checkthepinsonthepincarriertosee
if any of the rollers have adhered to them.
7
Remove the snap ring, the ball bearing and the spacer from the high-speed shaft.
8
Using both hands, lift out the top Cycloid disc.
9
For Cyclo® units supplied with a spacer, remove the Cycloidal disc spacer.
Slow Speed
Rollers
Snap Ring
Ball Bearing
Spacer
Cycloid Disc
Cycloid Disc Spacer
