18
6) PRESSER FOOT STITCH WIDTH ADJUSTMENT
NNoottee..
The relationship between the stamp of the hand pulley and the feed is noted in the table. The relationship
between the stamp of the hand pulley and the feed is changed according to the used textile and the differential
ratio. Adjust the stitch width according to the table 1.
Table1) Stitch width setting
Manual pulley
⑤

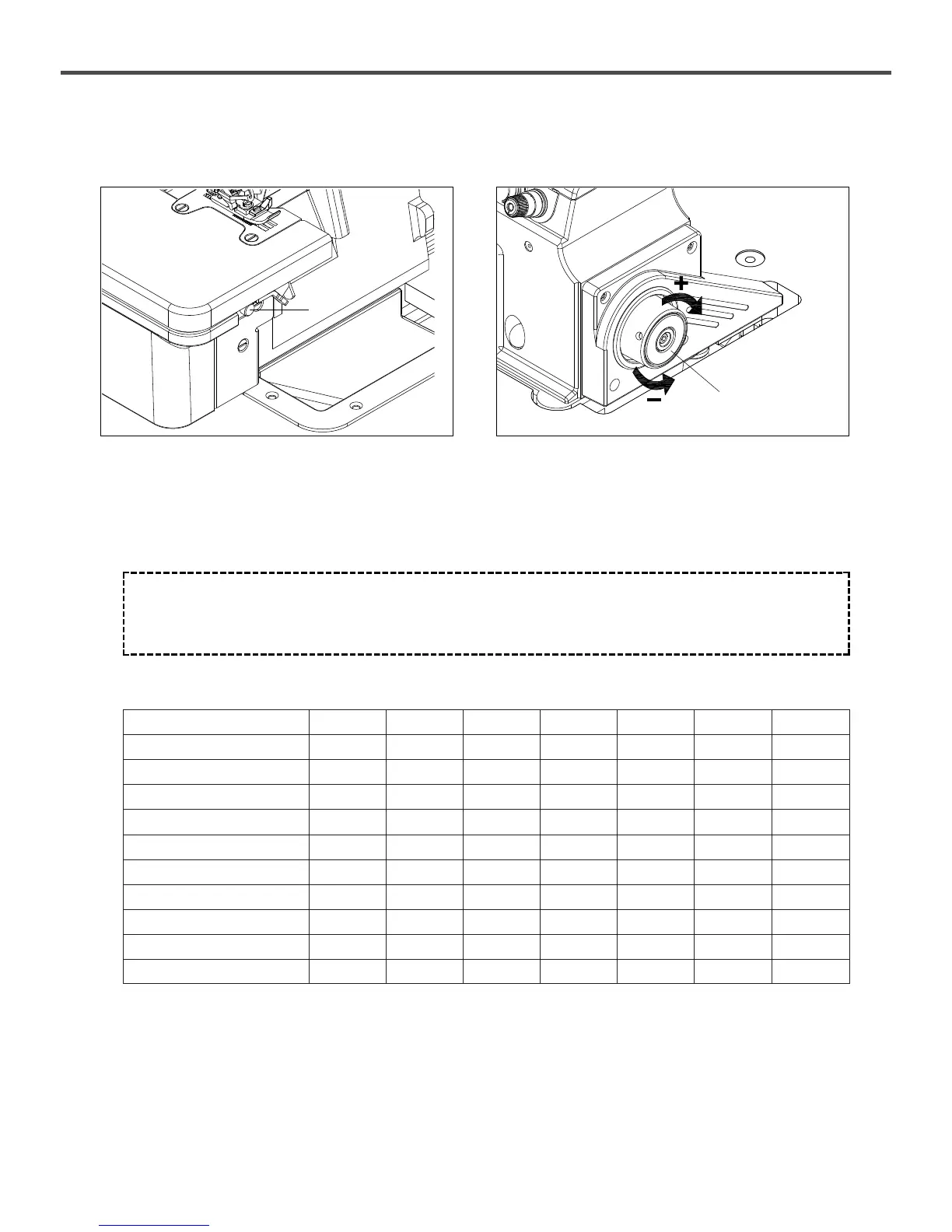

[Figure 19] [Figure 20]
1) Turn the manual pulley pressing the button⑤ weakly then it will be pressed more deeply.
2) To increase the stitch width in the state of pressed button, turn the hand pulley to the (+) direction. Turn the manual pulley to the (-)
direction to decrease the stitch.
※ Same as the stitch length setting of SCD series (Table 1).
12 3 45 6 7
SC9204-01/233-4 0.6 1.13 1.66 2.19 2.72 3.25 3.8
SC9204-02H/233-3 0.6 1.13 1.66 2.19 2.72 3.25 3.8
SC9214-03/333-2X3 0.6 1.13 1.66 2.19 2.72 3.25 3.8
SC(T)9214-03/333-2X4 0.6 1.13 1.66 2.19 2.72 3.25 3.8
SC9212-02/333-2X5 0.6 1.13 1.66 2.19 2.72 3.25 3.8
SC9316-03/233-3X5 0.6 1.13 1.66 2.19 2.72 3.25 3.8
SC(T)9316-03/333-5X5 0.6 1.13 1.66 2.19 2.72 3.25 3.8
SC9316H-A05/535-5X5 0.8 1.5 2.2 2.9 3.6 4.3 5.0
SC(T)9316-A04/435-5X5 0.8 1.5 2.2 2.9 3.6 4.3 5.0
SC9344-A04/435-5X3X4 0.8 1.5 2.2 2.9 3.6 4.3 5.0
