36

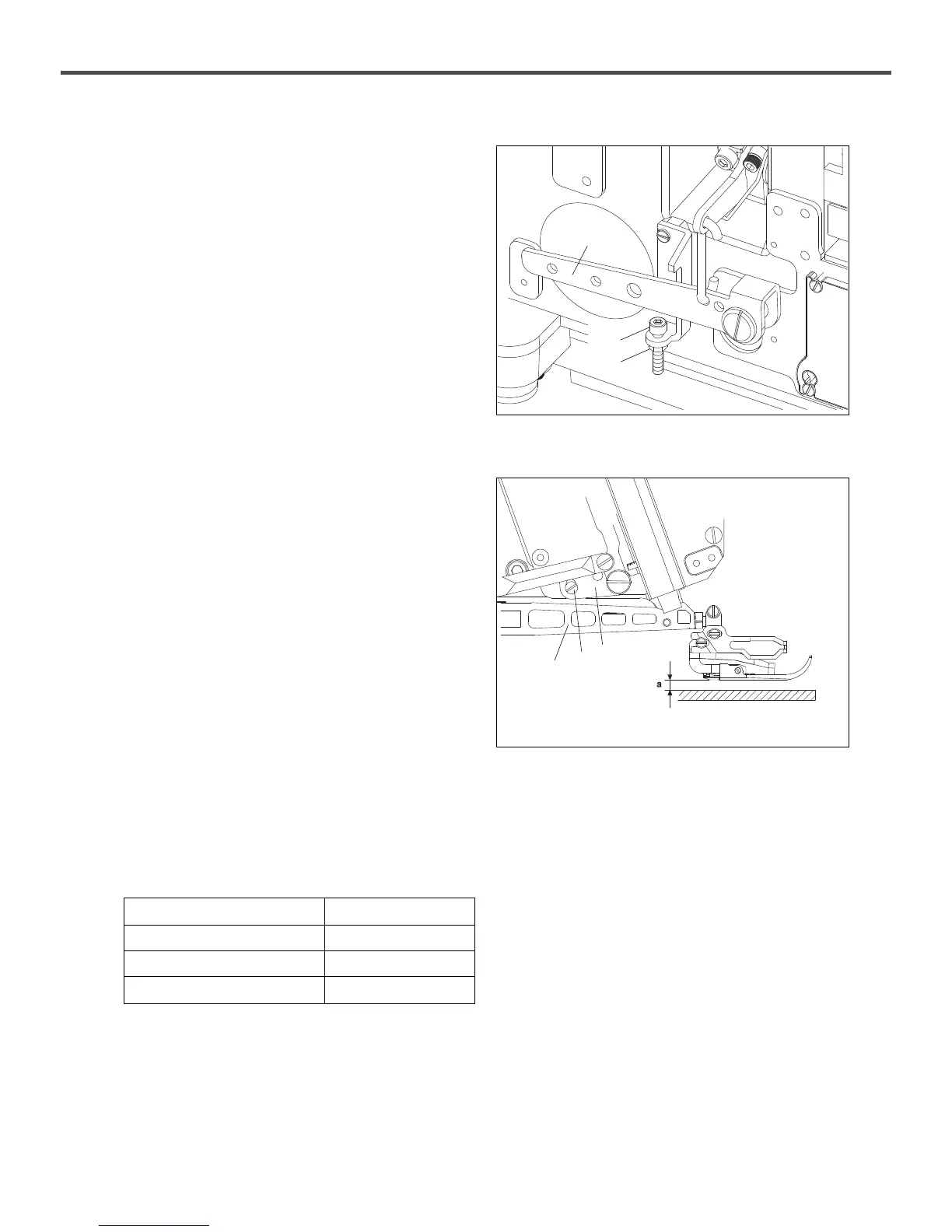

35) Adjusting of the lifting quantity between the
pressure foot and the upper feed dog
SCT9300 Series
1) Turn the pulley until the bottom of the feed dog is below the
upper side of needle plate.
2) Confirm that the bottom side of the small pressure foot is
close to the upper side of needle plate. If not, follow the next
steps.
3) Loosen the nut②.
4) Pull down the pressure foot lifting lever③ until it is close to
the screw①.
To make the bottom side of the small pressure foot contact the
upper side of needle plate, adjust the height of the small
pressure foot by turning the screw① as required.
5) Return the pressure foot lifting lever③ and tighten the nut②
to fix the screw① safely.
6) Lift the pressure foot. Loosen the screw④.
7) Adjust the pressure foot lifting range(a) by the stopper⑤.
(Table 11)
8) Tighten the screw④.
SCT9200 Series
1) Turn the pulley until the bottom of the feed dog is below the
upper side of needle plate.
2) Loosen the nut②.
3) Pull down the pressure foot lifting lever③ until it is close to
the screw①.
Adjust the pressure foot lifting range(a) by turning the screw
① as required. (Table 11)
4) Return the pressure foot lifting lever③ and tighten the nut②.
5) Lift the pressure foot. Loosen the screw④.
Adjust the stopper⑤ to make it contact the pressure foot arm
⑥. Tighten the screw④.
Table 11) Lifting quantity between the pressure foot
and the upper feed dog
Model
Height of the upper feed dog
SC(T)9214-03/333 5.5
SC(T)9316-03/233 5
SC(T)9316-A04/435K 7
[Figure 75]
[Figure 76]
⑥
④
⑤
③
①
②
