31

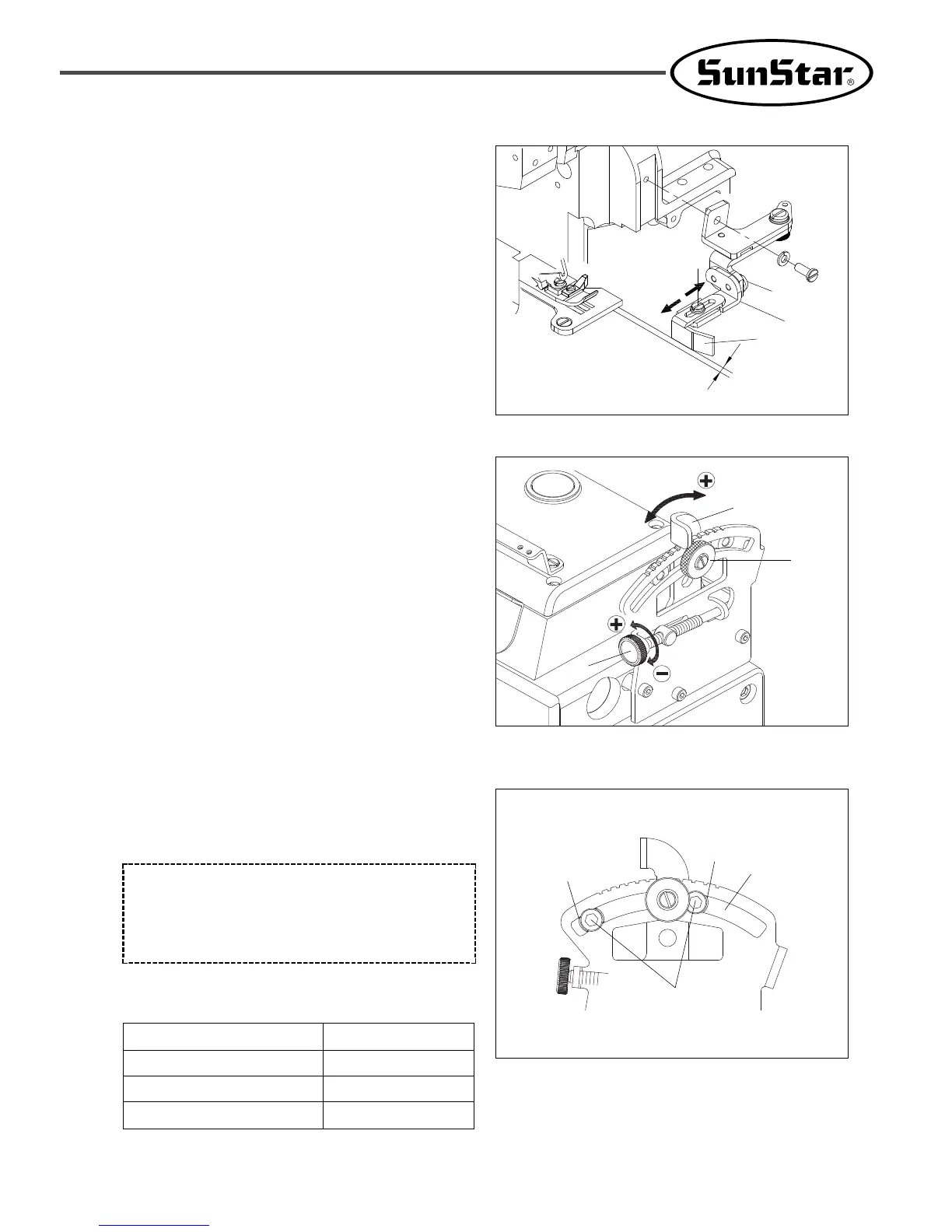

28) HEMMING WIDTH ADJUSTMENT
1) The hemming guidance③ bottom should be contact on the
front face of the needle plate slightly. To do this, loosen the
screw④ and move the bracket⑤ up/down as required.
2) To adjust the cutting width, loosen the screw④ and move the
hemming guidance③ from the side to side as required. Then
tighten the screw④.
[Figure 56]
①
③
②
④
right
left
cutting widht
29) Adjusting Upper Feed Dogs (SCT Series)
1) Forward/backward Feed Adjustment
Loosen the bar lifter①. Adjust the required quantity with the
lever②.
Move to (+) direction to increase the quantity.
Move to (-) direction to decrease the quantity.
Tighten the bar lifter①.
※ To adjust slightly, loosen the bar lifter① and then turn
bar lifter③ as required.
Tighten the bar lifter① after completing this adjustment.
[Figure 55]
2) Forward/backward Feed Adjustment
Loosen the screw①. Adjust the range by moving the stopper
② and ③.
Table 6) Forward/backward Feed Adjustment Range
of the Upper Feed Dog
NNoottee..
The feed of the upper feed dog scale is 1mm.
The maximum value is 12. However, please do not
exceed the maximum value (table 6) for each model.
[Figure 57]
[Figure 58]
①
③
①
②
②
③
②
Model Feed
SC(T)9214-03/333 1 ~ 6
SC(T)9316-03/233 1 ~ 6
SC(T)9316-A04/435K 1 ~ 6
