17) DOUBLE CHAIN STITCH NEEDLE GUIDANCE
ADJUSTMENT
1) When the double chain stitch needle is on the lowest point to
adjust the needle guidance(after), the distance(c) between
the double chain stitch needle and the needle guidance(after)
should be 0~0.05mm.
To do this, loosen the screw and move the needle
guidance(after) back/forth as required.
2) To adjust the needle guidance, arrange the distance(d)
between the double chain stitch needle and the needle
guidance to 0.05~0.1mm.
To do this, loosen the screw and move the needle
guidance(before) back/forth as required.

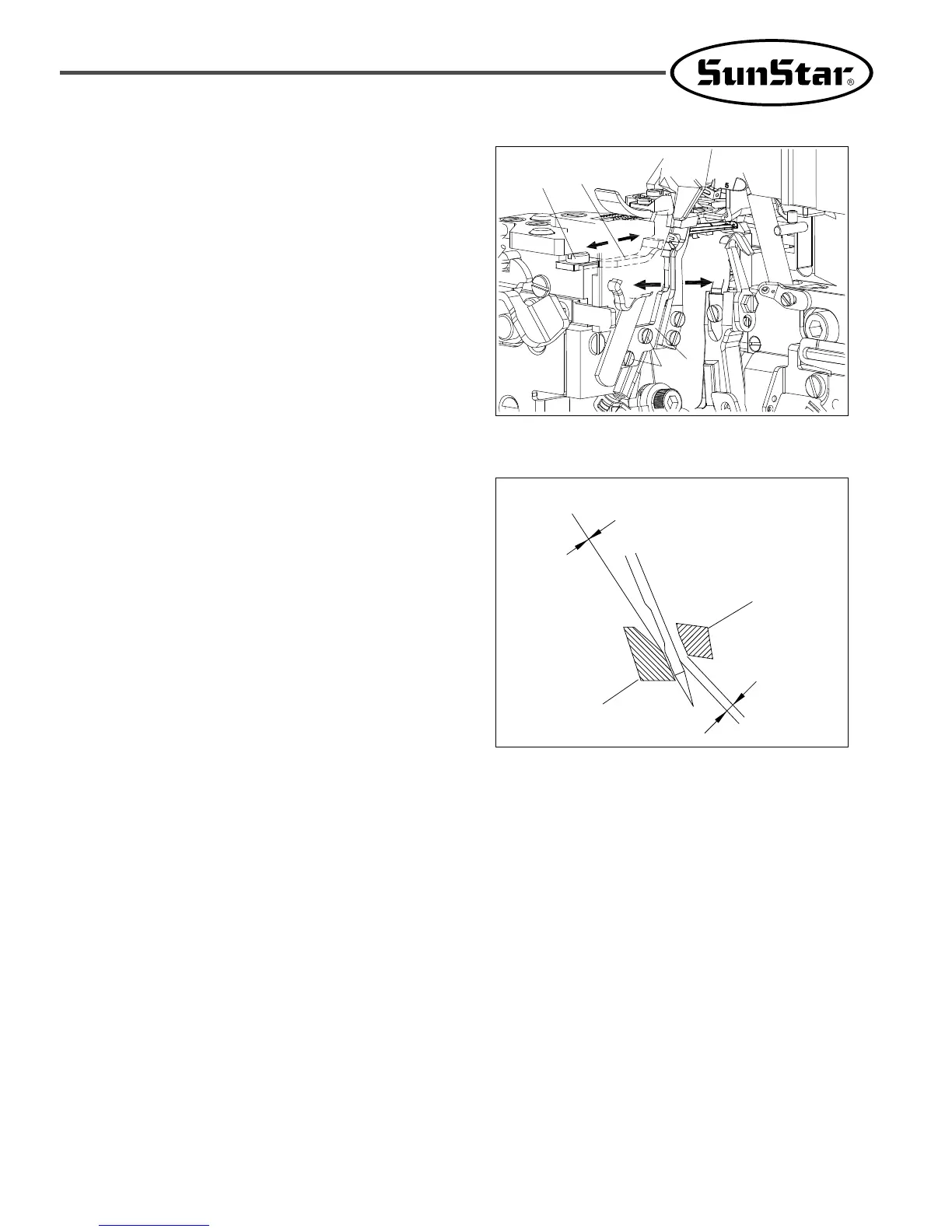

[Figure 36]
[Figure 37]
Back
Front
Back
Front
(c)
0~0.05mm
(d)
0.05~0.1mm
