LUBRICATION AND MAINTENANCE
Publication: 0028607 6-11
6

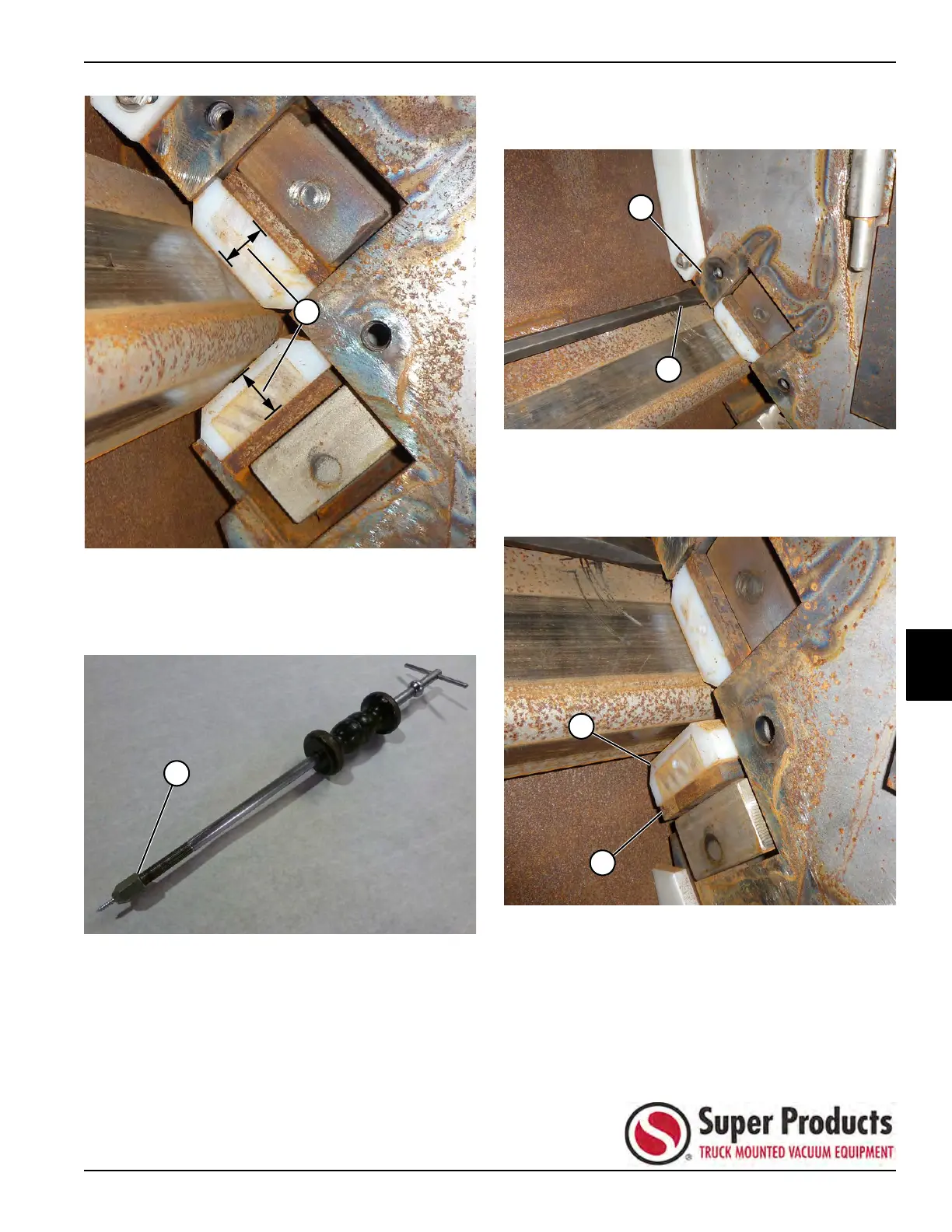

Figure 6-19
4. Thread a self-taping screw with slide hammer (Super
Products P/N 3000-03254) (4) into the lower slide
pad and tap out.
Figure 6-20
5. Use a pry bar (6) to lift the ejector plate (7). Follow
the same steps to remove the upper slide pad.
Figure 6-21
6. Insert backup bars (8) and slide pads, with the
beveled edge (9) toward the guide rail. Follow the
same steps for the opposite side.
Figure 6-22
