Vacuum Vent Door

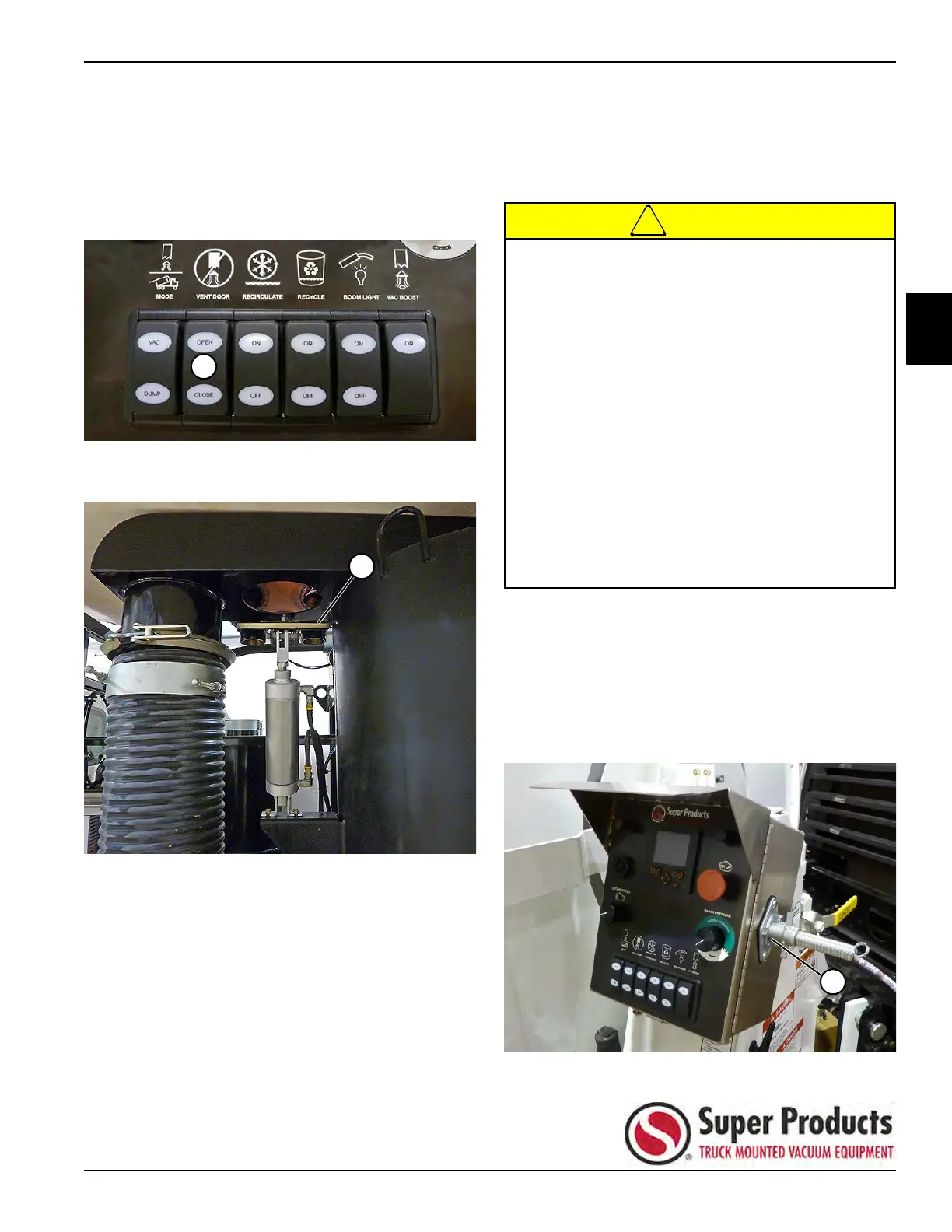

The primary vacuum vent door rocker switch (1) is
located on the front control panel. This rocker switch
controls the opening and closing of the vacuum vent door
(2) located in front of the separator on the left side of the
machine.
Figure 2-6
Figure 2-7
Remote Operated Vacuum Vent Door
The vacuum vent door may also be controlled by either
the wired pendant remote control or the wireless pendant
remote control. The operations and testing instructions of
this section apply to both pendant remote controls.
For Wired Pendant Remote Control
Only
1. Insert the electrical plug on the end of the pendant
cord into the socket (1, 2) located at the right side of
the front control panel or the left side of the curbside
panel.
Figure 2-8
Vacuum Vent Door Rocker Switch
Vacuum Vent Door
1. A safety person who is in full sight of the
operator MUST be present at all times.
2. The safety person MUST keep the remote
control on their person at all times for
immediate access.
3. NEVER allow workers positioned at the end of
the hose to operate the system without the
safety person in position.
4. ALWAYS wear tight-fitting clothing when
working at the end of the hose. Keep shirts
and jackets closed to avoid being pulled into
the hose. Remove loose-fitting jewelry such
as bracelets and necklaces unless they are
under tight-fitting clothing.
5. DO NOT use hands or feet to clear
obstructions from the end of the hose. Keep
all body extremities from end of hose.
Pendant Cord Socket Front Control Panel
