CONTROL SYSTEM OPERATION
Publication: 0028607 3-15
3
Pendant Functions — Wired and
Wireless
The functions, buttons, and labels on the wireless
pendant are the same as those used on the wired
pendant. Alternate functions require switching and
holding the OFF/ON/SHIFT switch in the SHIFT position
and then pressing the corresponding button. Only one
pendant function can be turned on at a time.

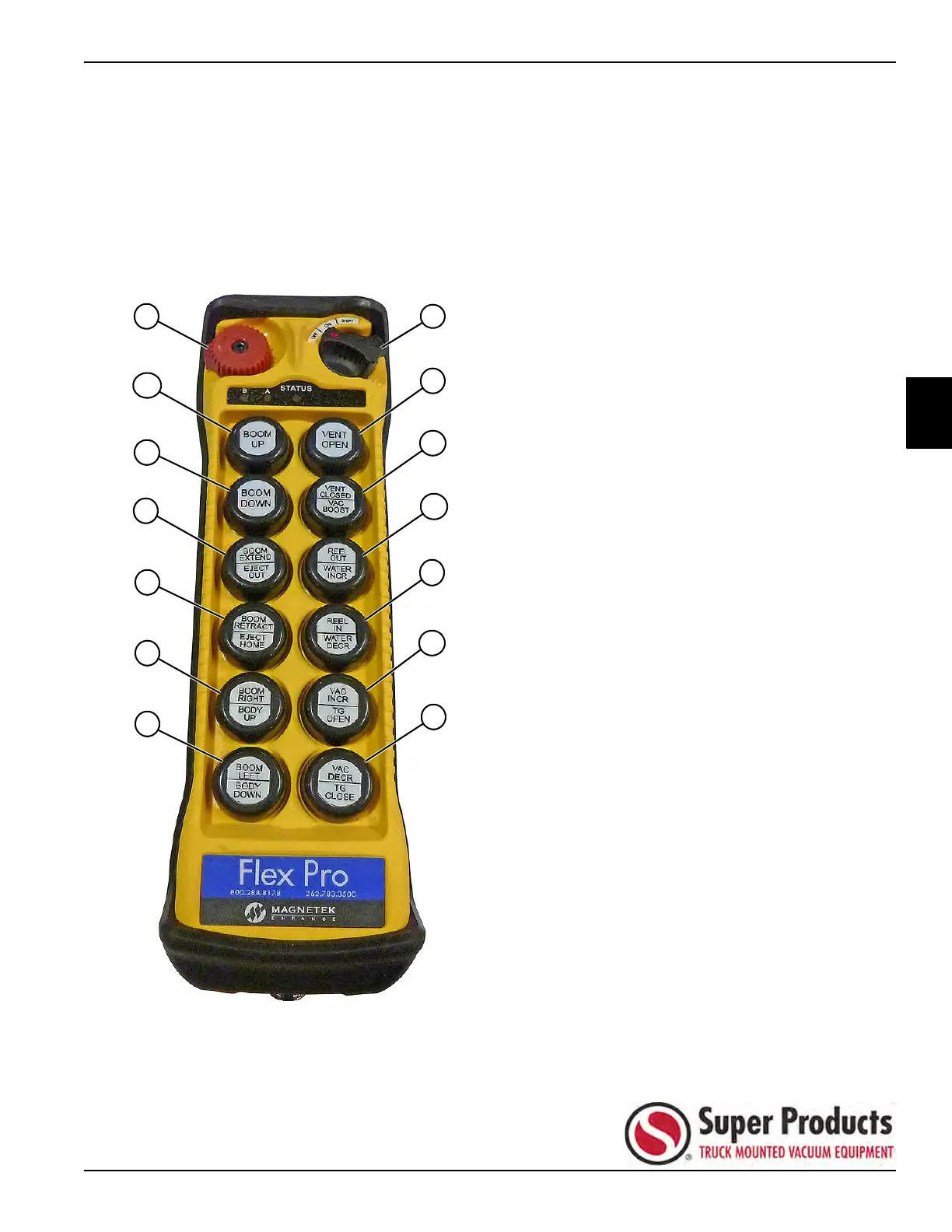

Figure 3-25
The pendant functions are as follows:
1. Emergency Stop
2. BOOM UP
3. BOOM DOWN
4. BOOM EXTEND / EJECT OUT
• »+ SHIFT = EJECT OUT
5. BOOM RETRACT / EJECT HOME
• »+ SHIFT = EJECT HOME
6. BOOM RIGHT /BODY UP
• »+ SHIFT = BODY UP (dump mode only)
7. BOOM LEFT / BODY DOWN
• »+ SHIFT= BODY DOWN (dump mode only)
8. Pendant Power — OFF/ON/SHIFT Control
9. VENT OPEN
10. VENT CLOSED / VAC BOOST
• »+ SHIFT = VAC BOOST (momentary switch)
11. REEL OUT / WATER INCR
• »+ SHIFT = WATER INCR
12. REEL IN / WATER DECR
• »+ SHIFT = WATER DECR
13. VAC INCR / TG OPEN
• »+ SHIFT = TG OPEN (dump mode only)
14. VAC DECR / TG CLOSE
• »+ SHIFT= TG CLOSE (dump mode only)
Wired Pendant (Option)
The wired pendant is connected to the receptacle for
power and system connections. The wired pendant
receives 12VDC power from, and sends commands to,
the control system.
Pendant Functions — Wired and Wireless
1
2
3
4
5
6
7
14
13
12
11
10
9
8
