LUBRICATION AND MAINTENANCE
Publication: 0028607 6-13
6
Ejector Plate Wiper Inspection
and Adjustment

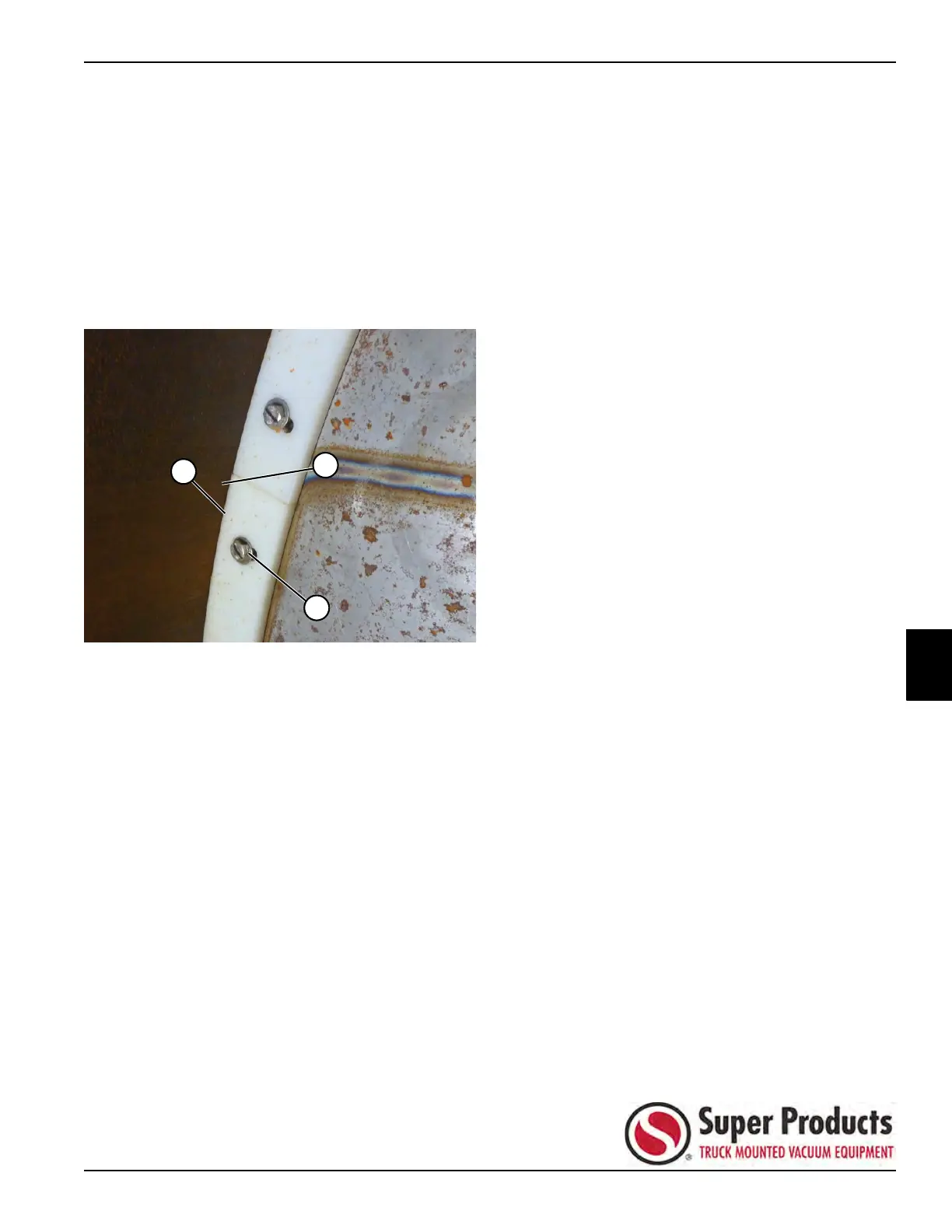

1. Inspect the clearance between the wiper segments
(1) and the debris body (2) to determine if adjustment
is necessary.
Wiper segments should be adjusted as close to the
inside perimeter of the debris body as possible
without making contact.
Figure 6-25
2. If adjustment is necessary, extend the ejector plate
two inches from the rear edge of the debris body.
3. Loosen the wiper segment adjusting bolts (3) slightly
to allow for movement.
4. Using a block of wood and a hammer, knock wiper
segments outward as needed.
• It is important to adjust the wiper segments as close
to the inside perimeter of the debris body as possible
to achieve optimal performance.
• If minor contact is made between the wiper segments
and the debris body, the operation of the ejector plate
will wear the wipers to a proper clearance.
5. If any jamming occurs, back off the wiper segments
until proper operation is achieved.
