4 SUPERBRUSH OWNER’S MANUAL
This manual is designed to help familiarize you
with your S
UPERBRUSH sander, and to help you
take advantage of its exclusive features. By under-
standing its major components, and how they
work together, you will be able to get the most
from your investment.The S
UPERBRUSH system is
basically made up of: 1) a height adjustment handle
which raises and lowers the conveyor table; 2) a
brush speed control handle which controls brush
speed from 400 to 1200 RPM; 3) a motor starter
switch which starts and stops the drive motor and
sanding brush; and 4) a feed rate control knob
which starts feed conveyor and selects feed rate
from 0-15 feet per minute.
ABOUT THE SUPERBRUSH SYSTEM

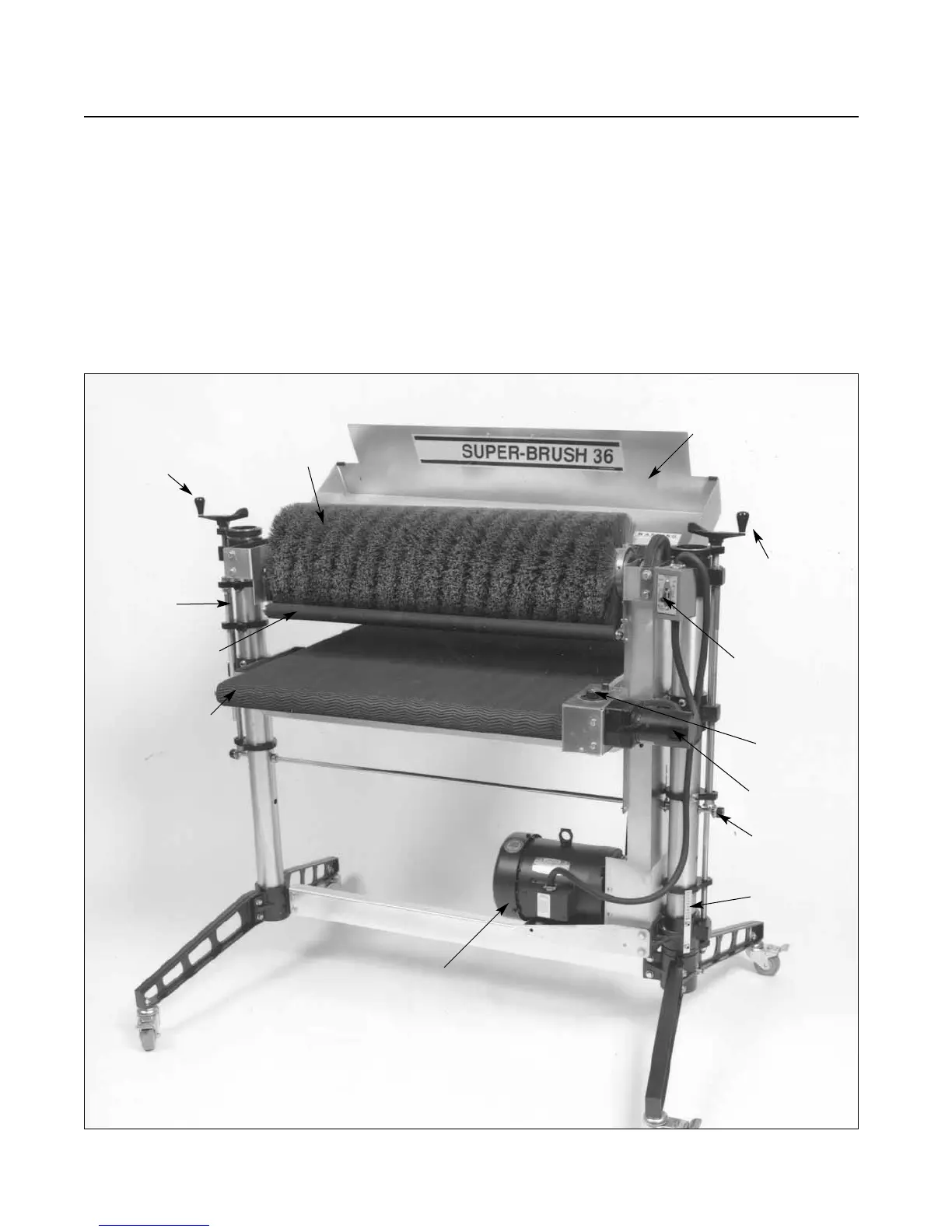

Fig. 1. SUPERBRUSH nomenclature.
DUST COVER
BRUSH SPEED
CONTROL
HANDLE (RPM)
MOTOR
CONTROL
SWITCH
FEED RATE
CONTROL
KNOB
GEAR
MOTOR
MITER GEARS
RPM GAUGE
RIGHT (INBOARD) SIDE
MAIN MOTOR
LEFT (OUTBOARD) SIDE
DEPTH
GAUGE
FEED CONVEYOR
TENSION ROLLER
HEIGHT ADJUSTMENT
HANDLE
SANDING
BRUSH
