2-8
C7Q67 User's Manual

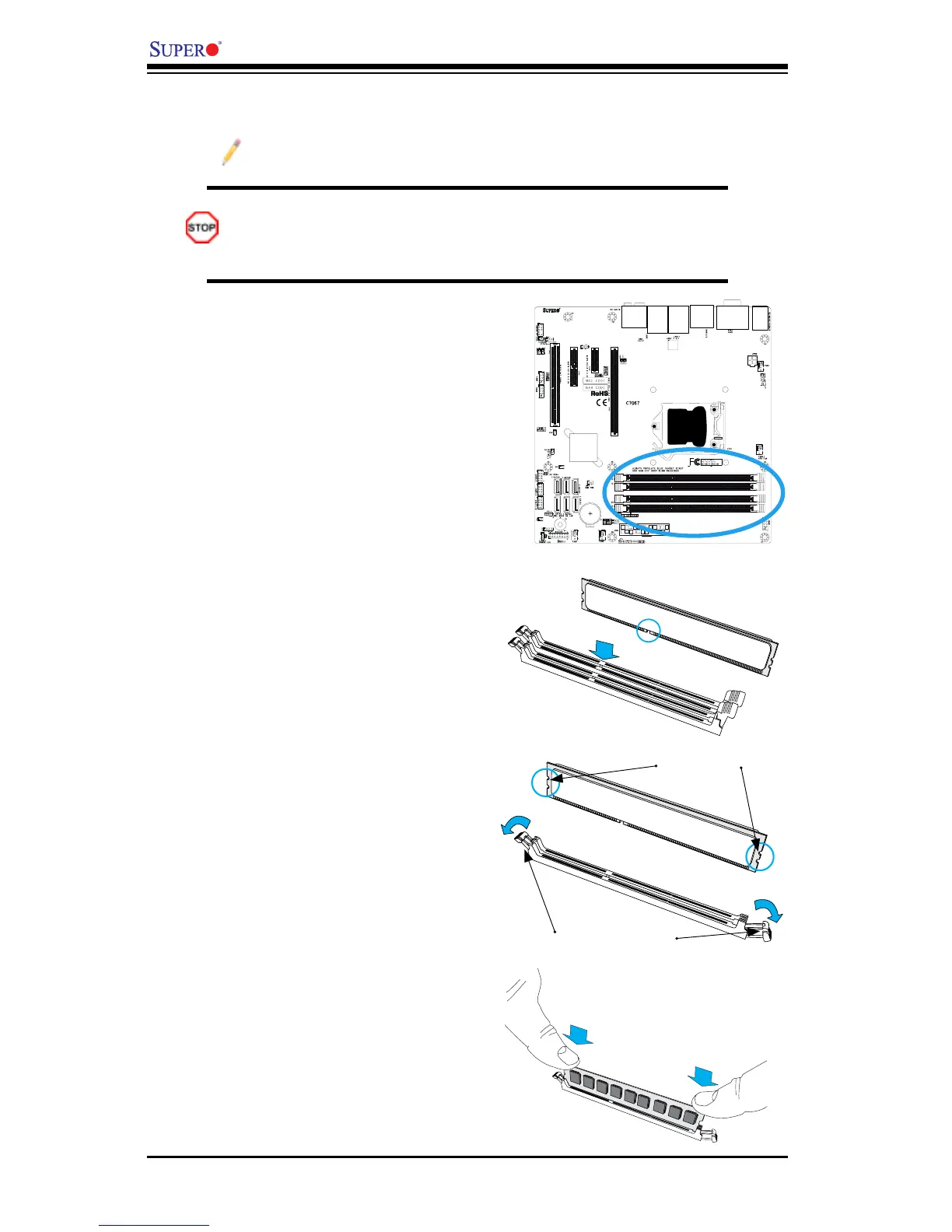

DIMM Installation
Insert the desired number of DIMMs 1.
into the memory slots, starting with
DIMM1A (Slot A, Channel 1, see the
next page for the location). For best
performance, please use the memory
modules of the same type and speed
in the same bank.
Push the release tabs outwards on 2.
both ends of the DIMM slot to unlock
it.
Release Tabs
Notches
Align the key of the DIMM mod-3.
ule with the receptive point on the
memory slot.
Press both notches
straight down into
the memory slot.
Align the notches on both ends of 4.
the module against the receptive
points on the ends of the slot.
Use two thumbs together to press 5.
the notches on both ends of the
module straight down into the slot
until the module snaps into place.
Press the release tabs to the lock 6.
positions to secure the DIMM module
into the slot.
Removing Memory Modules
Reverse the steps above to remove the
DIMM modules from the motherboard.
2-3 Installing DDR3 Memory
Note: Check the Supermicro website for recommended memory mod-
ules.
CAUTION
Exercise extreme care when installing or removing DIMM
modules to prevent any possible damage.
To Next Page
