Supero C7Q67 - ATX PS;2 Keyboard;Mouse Ports

2-14
C7Q67 User's Manual
ATX PS/2 Keyboard/Mouse
Ports

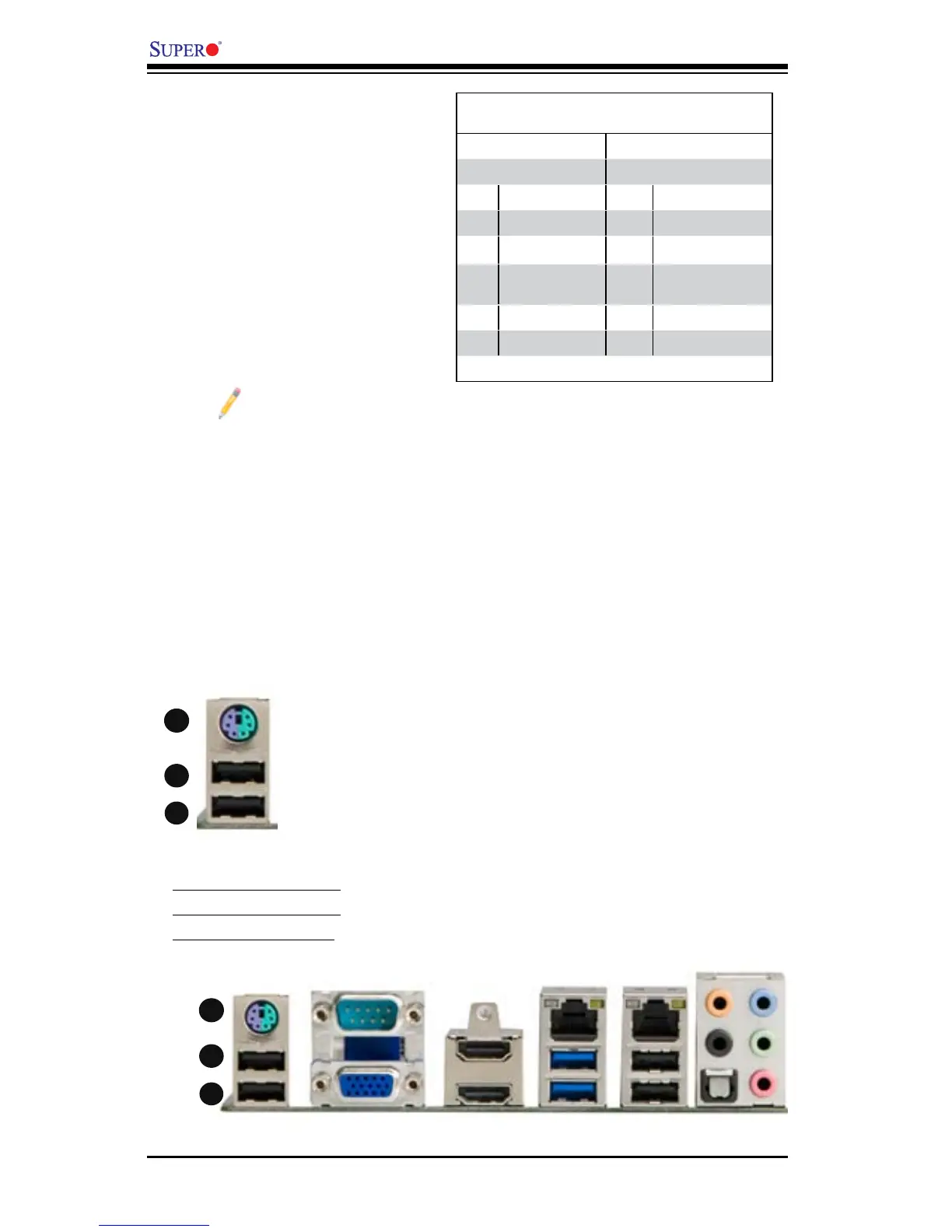

The ATX PS/2 keyboard and
PS/2 mouse are located next to
the Back Panel USB Ports 13/10
on the motherboard. See the
table at right for pin denitions.
PS/2 Keyboard/Mouse Pin
Denitions
PS2 Keyboard PS2 Mouse
Pin# Denition Pin# Denition
1 KB Data 1 Mouse Data
2 No Connection 2 No Connection
3 Ground 3 Ground
4 Mouse/KB VCC
(+5V)
4 Mouse/KB VCC
(+5V)
5 KB Clock 5 Mouse Clock
6 No Connection 6 No Connection
VCC: with 1.5A PTC (current limit)
A. Backpanel USB 2.0 #9
B. Backpanel USB 2.0 #8
C. PS2 Keyboard/Mouse
Keyboard/Mouse
(For a keyboard cable or Mouse cable) (optional)
BP USB (2.0)#8
(For a Y cable that connects to a KB cable and a Mouse Cable) (optional)
BP USB (2.0)#9
(For a Y cable that connects to a KB cable and a Mouse Cable) (optional)
Note:
This motherboard offers three Keyboard/Mouse connection options as
shown in the graphic below.
A.• Plug in a Y cable that connects to a KB cable and a mouse cable on
other end to USB Port 8.
B.• Plug in a Y cable that connects to a KB cable and a mouse cable on
other end to USB Port 9.
C. • Connect a keyboard cable or a mouse cable to the PS2 KB/Mouse
port.
A
B
C
A
B
C
