Supero C7Q67 - CMOS Clear (JBT1); PCI Slot SMB Enable (I C1;I C2)

Chapter 2: Installation
2-29

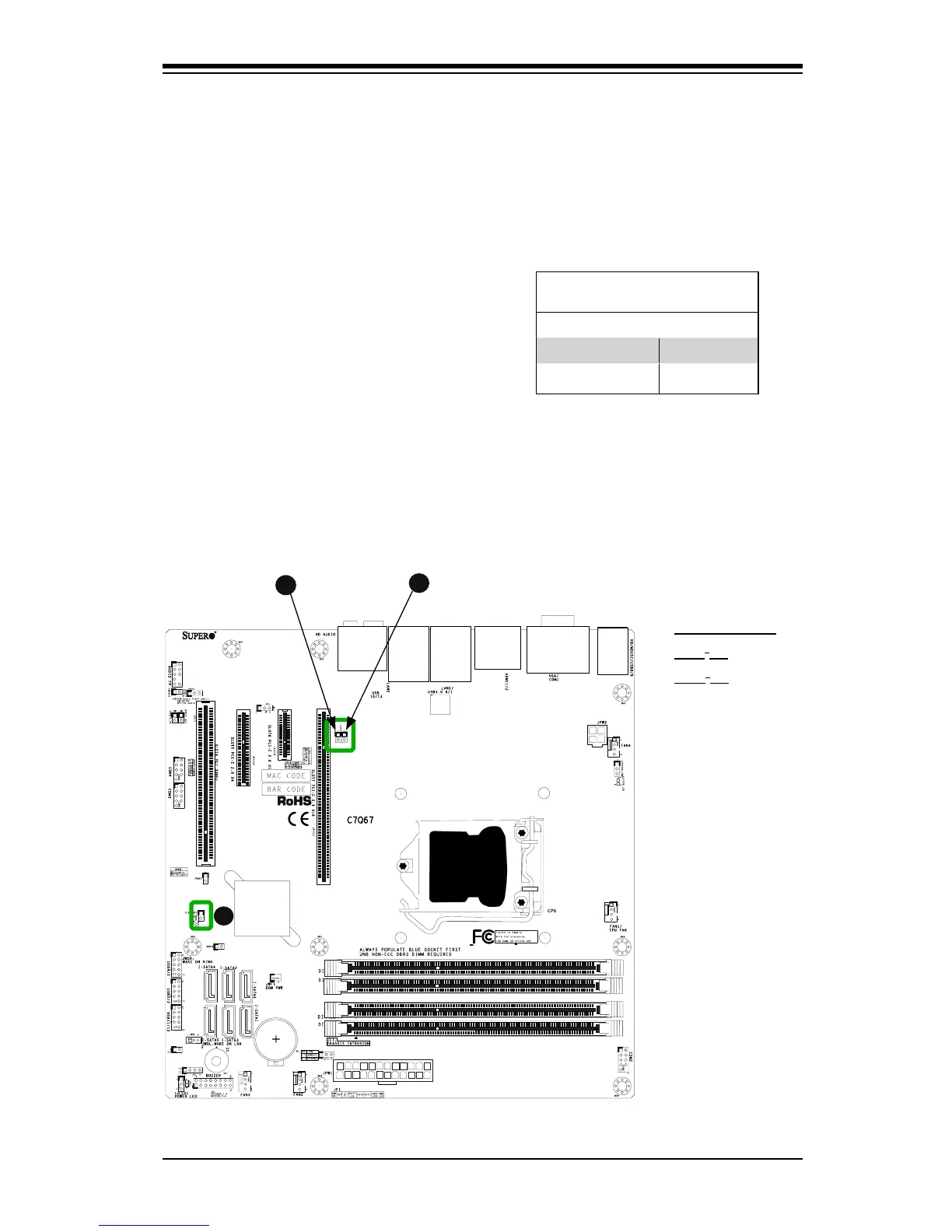

CMOS Clear (JBT1)
JBT1 is used to clear the saved system setup stored in the CMOS chip. To clear
the contents of the CMOS, completely shut down the system, remove the AC power
cord and then short JBT1 with a jumper. Remove the jumper before powering on
the system again. This will erase all user settings and revert everything to their
factory-set defaults.
A
A. Clear CMOS
B. JI
2
C1
C. JI
2
C2
B
PCI Slot_SMB Enable
Jumper Settings
Jumper Setting Denition
Short Enabled
Open (Default) Disabled
PCI Slot SMB Enable (I
2
C1/I
2
C2)
Use Jumpers I
2
C1/I
2
C2 to enable PCI
SMB (System Management Bus) support
to improve system management for the
PCI slots. See the table on the right for
jumper settings.
C
