Supero C7Q67 User Manual

2-32
C7Q67 User's Manual

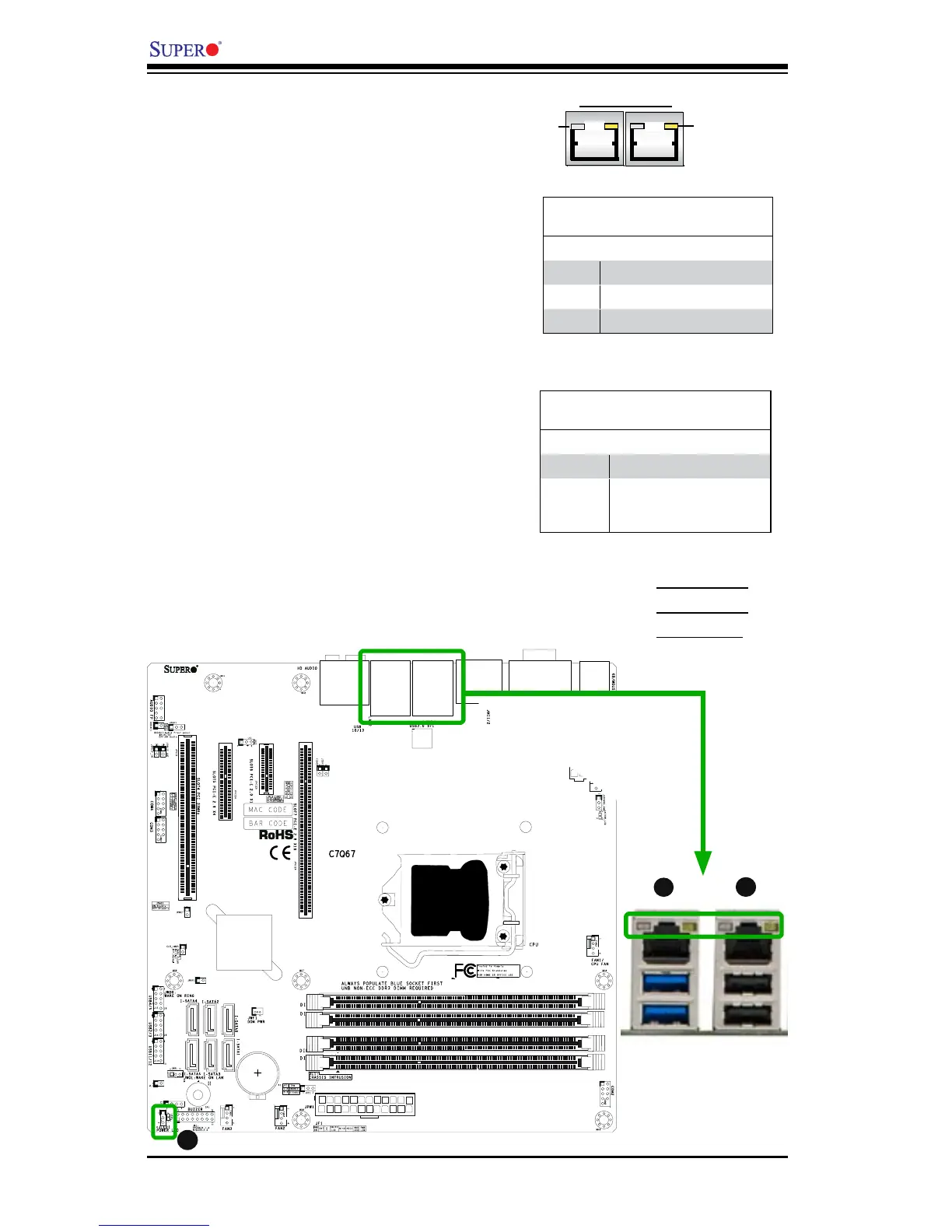

LAN 1/LAN 2 LEDs
Two LAN ports (LAN 1/LAN 2) are located
on the I/O backplane of the motherboard.
Each Ethernet LAN port has two LEDs. The
yellow LED indicates activity, while the Link
LED may be green, amber, or off to indicate
the speed of the connections. See the
tables at right for more information.
2-8 Onboard Indicators
A. LAN Port 1
B. LAN Port 2
C. PWR LED
LAN 1/LAN 2
Link LEDs (Green/Amber/Off)
LED Color Denition
Off No Connection or 10 Mbps
Green 100 Mbps
Amber 1 Gbps
C
LAN1 LAN2
Activity LED
A
B
Link LED
Onboard PWR LED Indicator
LED Status
Status Denition
Off System Off
On System on, or
System off and PWR
Cable Connected
Onboard Power LED
An Onboard Power LED is located
at LED1 on the motherboard. When
LED1 is on, the AC power cable is
connected. Make sure to disconnect
the power cable before removing or
installing any component. See the
layout below for the LED location.
