Supero C7Q67 - HD FP Audio;Ac 97 FP Audio Select (JHD AC1); ME Recovery Enable (JPME1)

2-30
C7Q67 User's Manual
A
B

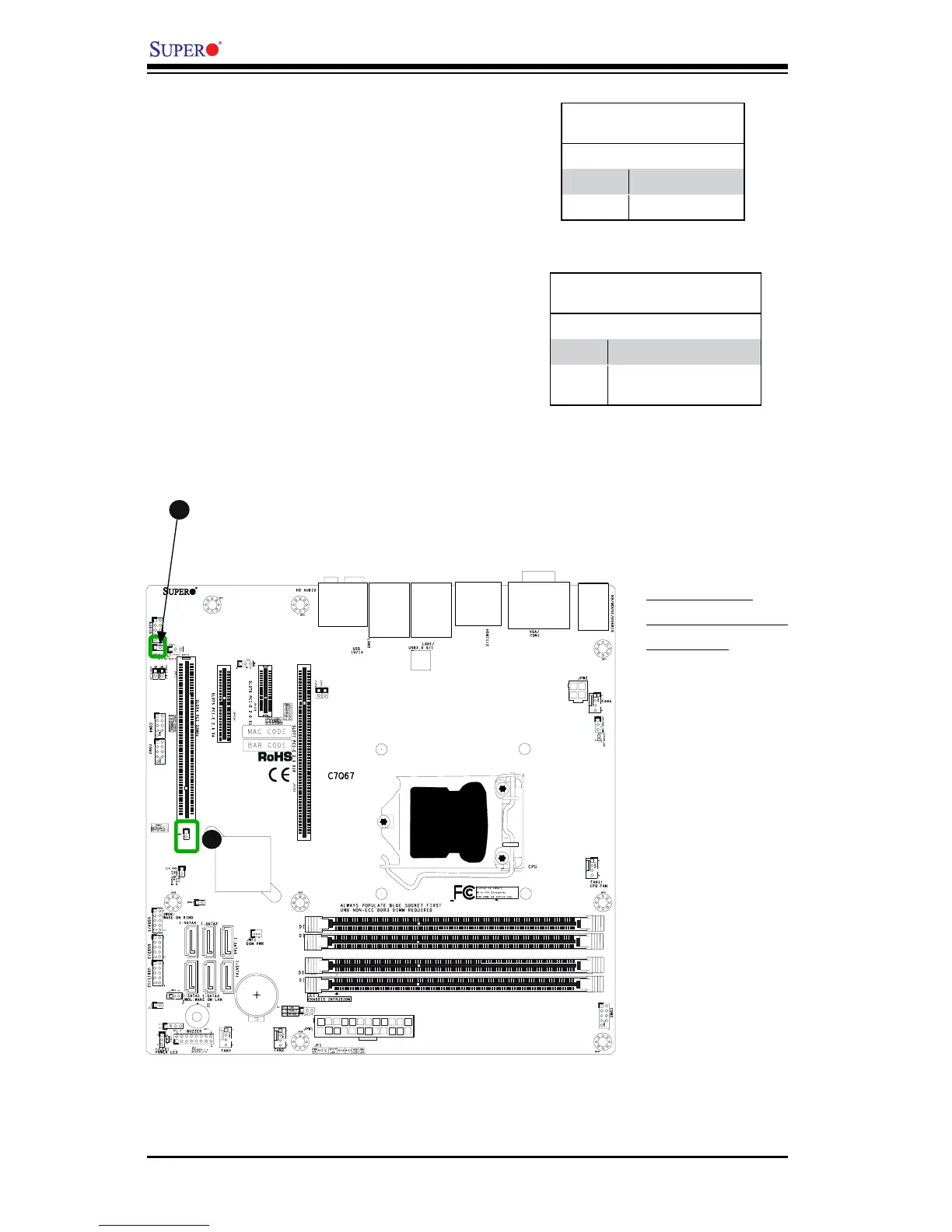

A. ME Recovery
B. HD Audio/AC'97
Audio Select
ME Recovery Enable (JPME1)
Close JPME1 to enable ME (Manufacture
Mode) Recovery. See the table on the right
for jumper settings.
ME Recovery
Jumper Settings
Settings Denition
On Enabled
Off Normal (Default)
HD FP Audio/AC' 97 FP Audio Select
(JHD AC1)
Jumper JHD AC1 allows the user to select
between High-Denition Front Panel Audio
and AC' 97 Front Panel Audio support. See
the table on the right for jumper settings.
HD Audio/AC' 97 Audio Select
Jumper Settings
Settings Denition
On AC'97 Audio Front Panel
Off HD Audio Front Panel
(Default)
