Supero C7Q67 - Front Accessible Audio Header

Chapter 2: Installation
2-17
Front Accessible Audio Header

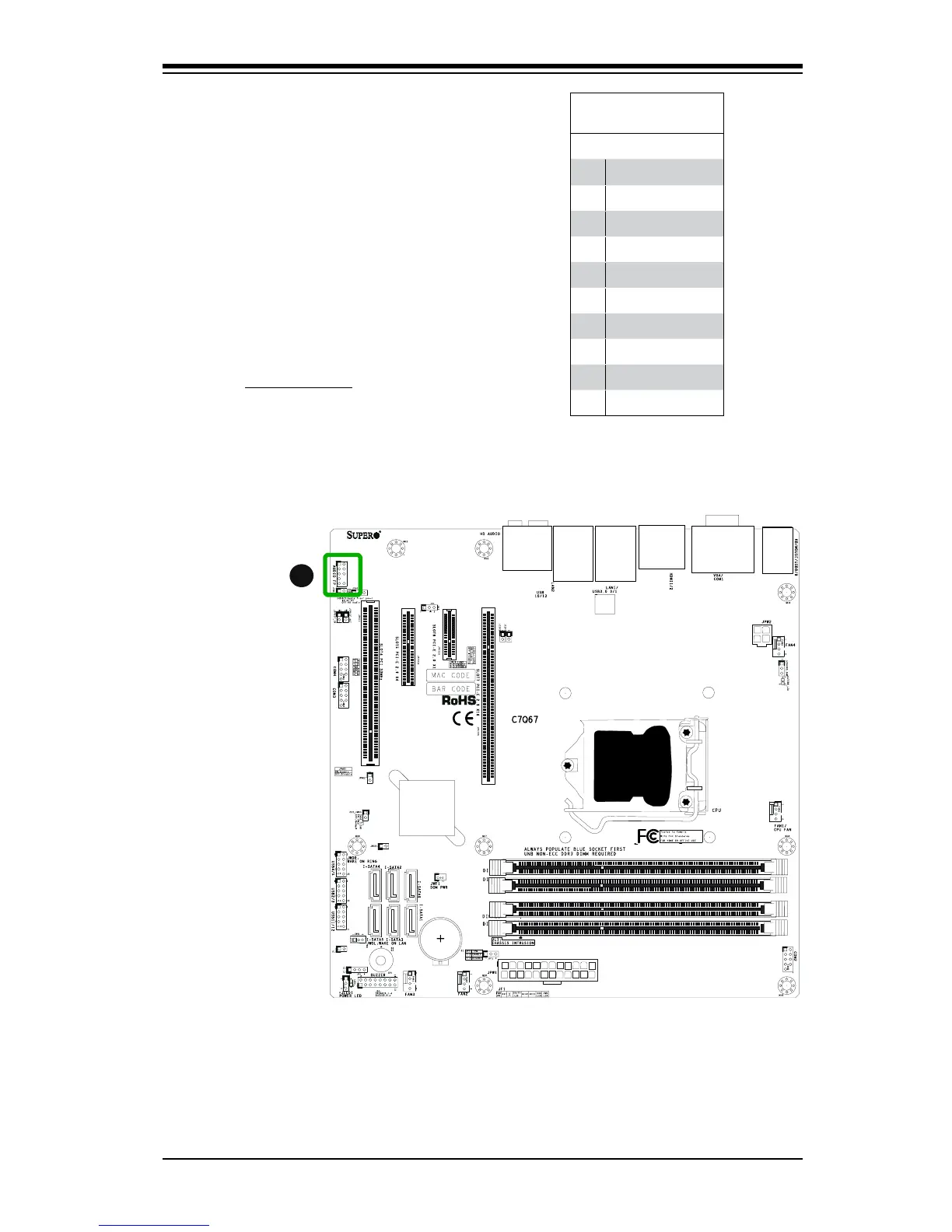

A 10-pin Audio header is also
located on the motherboard. This
header allows you to use the on-
board sound for audio playback.
Connect an audio cable to the au-
dio header to use this feature. See
the tables at right for pin denitions
for these headers.
10-in Audio
PinDenitions
Pin# Signal
1 Microphone_Left
2 Audio_Ground
3 Microphone_Right
4 Audio_Detect
5 Line_2_Right
6 Ground
7 Jack_Detect
8 Key
9 Line_2_Left
10 Ground
A
A. Audio Header
