Chapter 2: Installation
2-13
2-5 Connectors/IO Ports

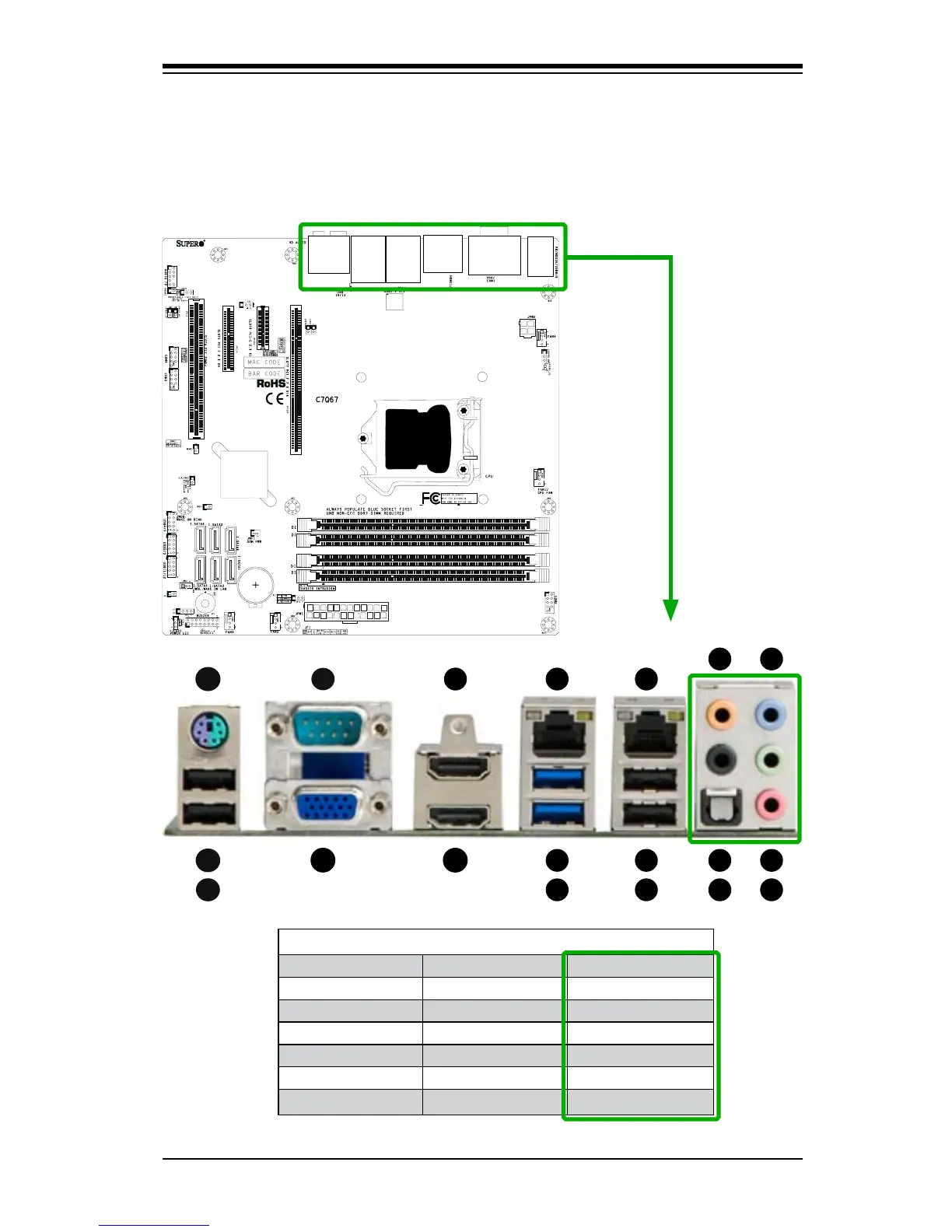

The I/O ports are color coded in conformance with the PC 99 specication. See the
gure below for the colors and locations of the various I/O ports.
Backplane I/O Panel
A. USB 2.0 Port 9 H. USB 3.0 Port 0 N. SPDIF Out
B. USB 2.0 Port 8 I. USB 3.0 Port 1 O. Surround Out
C. Keyboard/Mouse J. Gb LAN Port 1 P. Center/LFE Out
D. VGA Port K. USB 2.0 Port 13 Q. Mic In
E. Serial Port (COM1) L. USB 2.0 Port 10 R. Line Out
F. HDMI Port 1 M. Gb LAN Port 2 S. Line In
G. HDMI Port 2
Backplane I/O Panel
E
A
B
C
F
D
G
H
I
J
K
L
M
N
O
P
Q
R
S
HD Audio
HD Audio
