Supero C7Q67 User Manual

2-26
C7Q67 User's Manual
DOM PWR Connector (JWF1)
The Disk-On-Module (DOM) power
connector, located at JWF1, provides
5V (Gen1/Gen) power to a solid state
DOM storage device connected to one
of the SATA ports. See the table on the
right for pin denitions.
DOM PWR
PinDenitions
Pin# Denition
1 5V
2 Ground
3 Ground
Wake-On-LAN (JWOL)
The Wake-On-LAN header is located
at JWOL on the motherboard. See the
table on the right for pin denitions.
(You must also have a LAN card with
a Wake-On-LAN connector and cable
to use this feature.)
Wake-On-LAN
PinDenitions
(JWOL)
Pin# Denition
1 +5V Standby
2 Ground
3 Wake-up

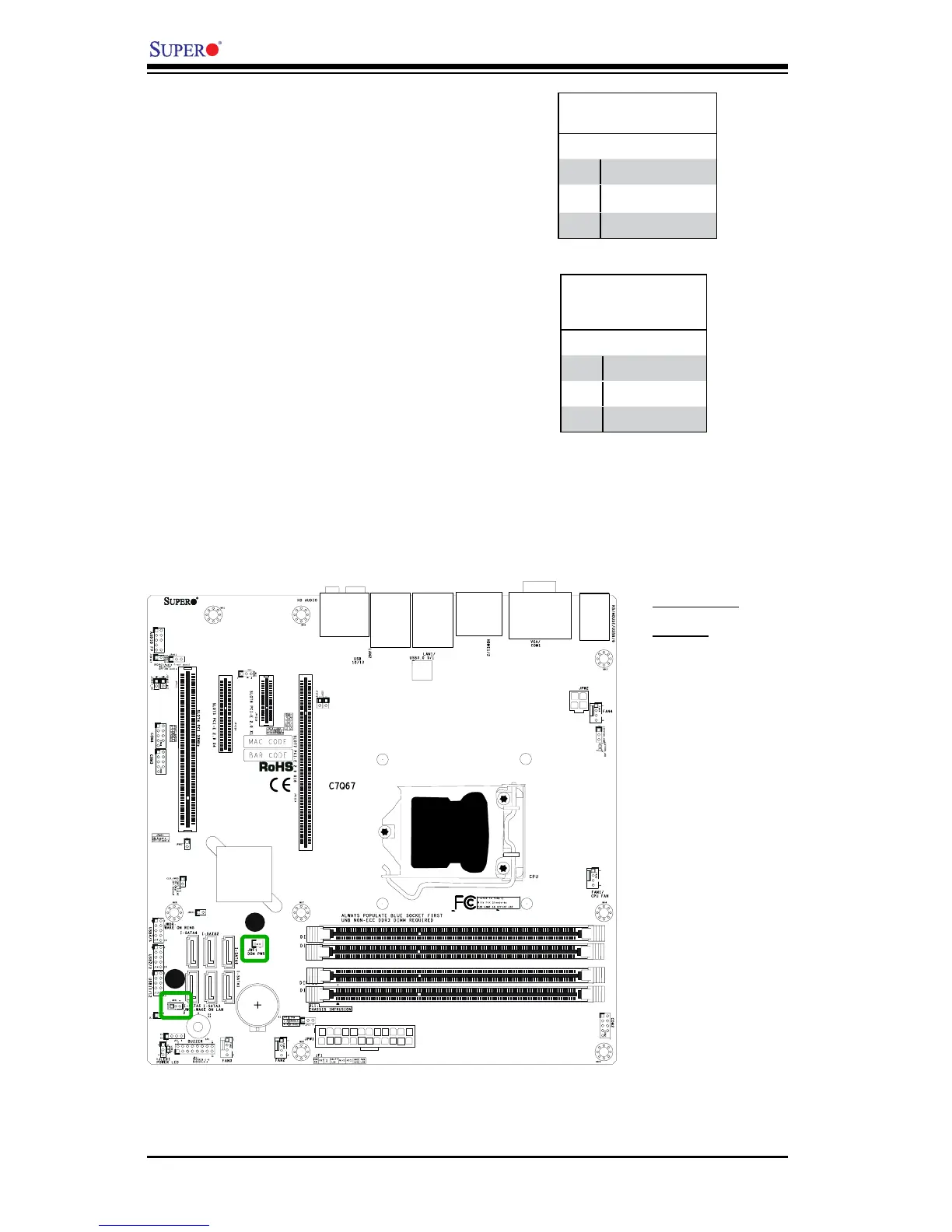

A
B
A.DOM PWR
B. WOL
