Supero C7Q67 User Manual

Chapter 2: Installation
2-27

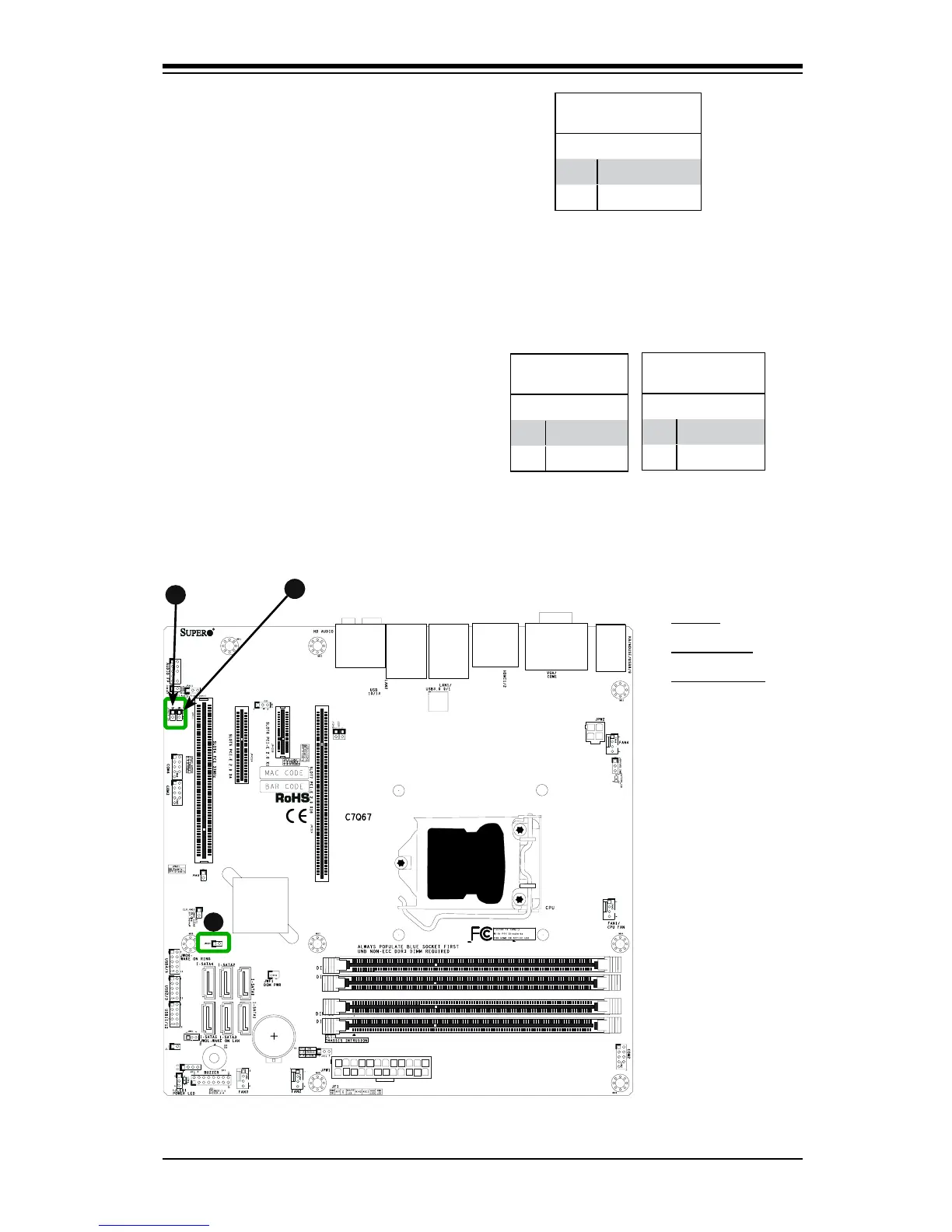

A
B
A.WOR
B. SPDIF_In
C. SPDIF_Out
Wake-On-Ring (JWOR)
The Wake-On-Ring header is located
at JWOR. This function allows your
computer to wake up when receiving
an incoming call to the modem while
in the suspend state. See the table
on the right for pin denitions. You
must have a Wake-On-Ring card and
a cable to use this feature.
Wake-On-Ring
PinDenitions
Pin# Denition
1 Ground
2 Wake-up
SPDIF_In/SPDIF_Out (JSPDIF_IN/
JSPDIF_OUT)
The SPDIF In (JSPDIF_In) and SPDIF
Out (JSPDIF_Out) are used for digital
audio. You will also need the appropri-
ate cables to use these features.
C
SPDIF_In
PinDenitions
Pin# Denition
1 S/PDIF_In
2 Ground
SPDIF_Out
PinDenitions
Pin# Denition
1 S/PDIF_Out
2 Ground
