Chapter 1: Introduction
1-5

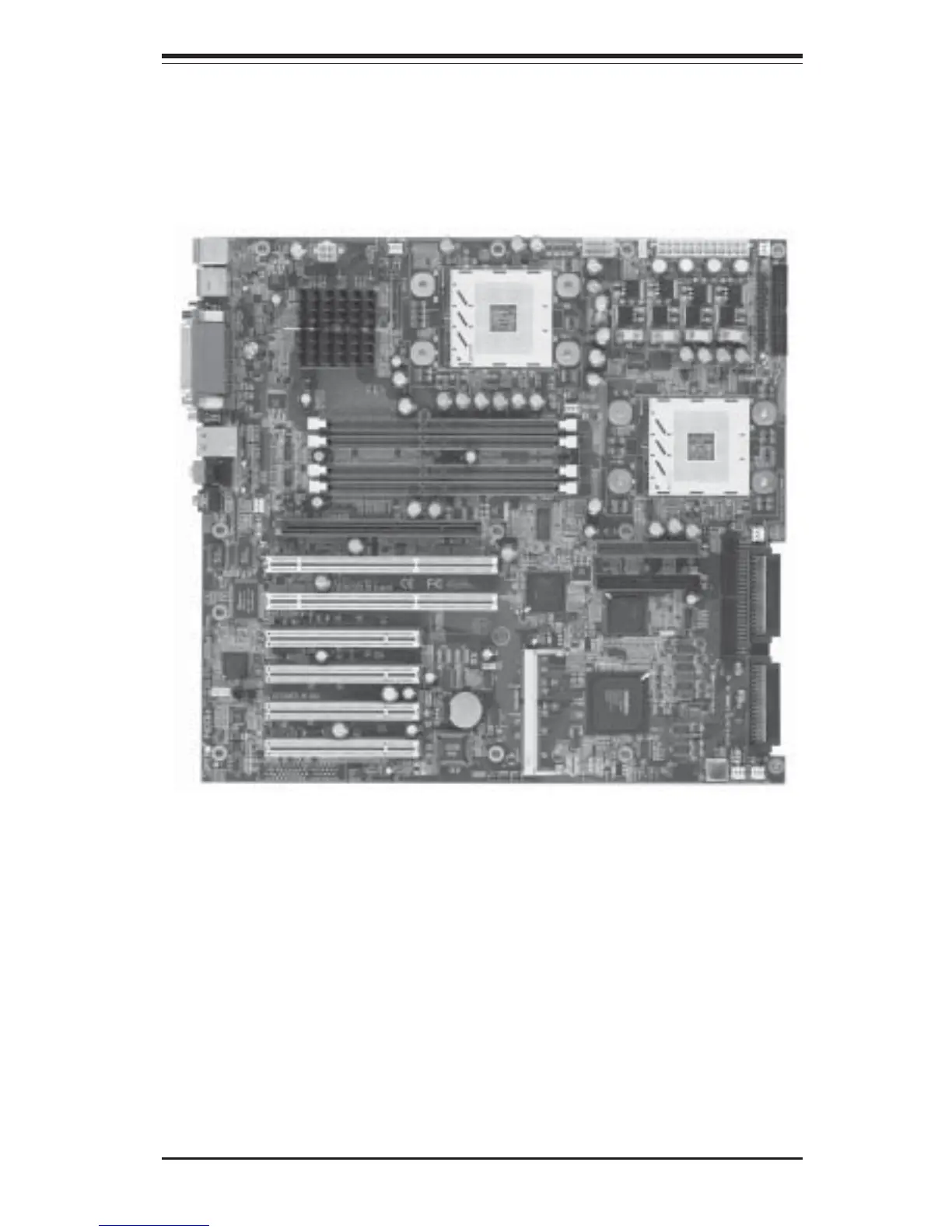

Figure 1-2. SUPER P4DC6+ Image
Notes:
- The P4DCE+ shares the same layout as the P4DC6+ but with no onboard
SCSI.
- The P4DC6+II shares the same layout as the P4DC6+ but includes a
heatsink over the VRM modules.
- The P4DCE+II shares the same layout as the P4DCE+ but includes a
heatsink over the VRM modules.
