SUPER P4DC6/P4DC6+/P4DC6+II/P4DCE/P4DCE+/P4DCE+II User's Manual
2-3 Mounting the Motherboard in the Chassis
All motherboards have standard mounting holes to fit different types of chas-
sis. Chassis may include a variety of mounting fasteners made of metal or
plastic. Although a chassis may have both types, metal fasteners are the
most highly recommended because they ground the motherboard to the chas-
sis. For this reason, it is best to use as many metal fasteners as possible.
Lever
Processor
(installed)

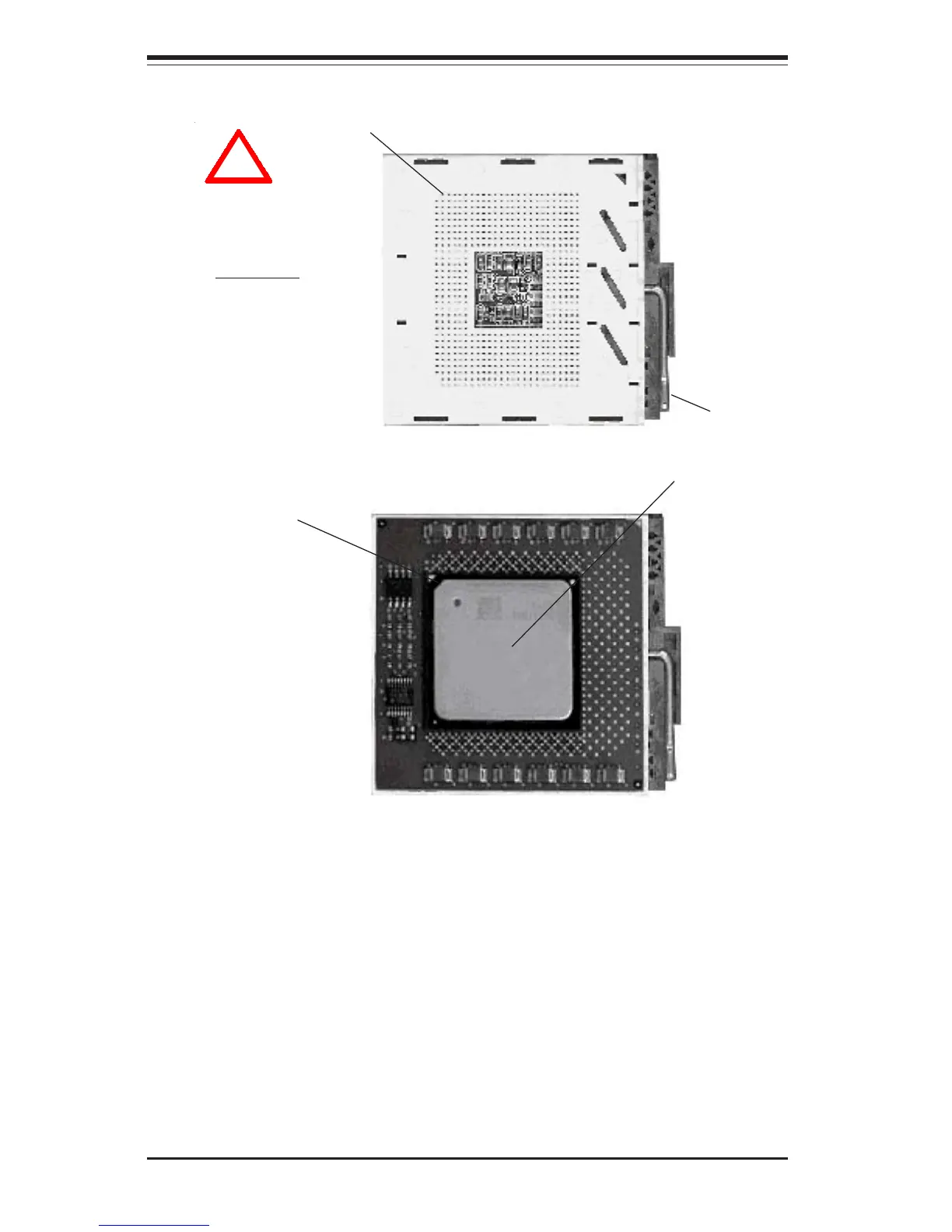

Figure 2-1. PGA 603-Pin Socket:
Empty and with Processor Installed
Pin 1
Notched
CPU
Corner
Warning! Make
sure you lift the
lever completely
when installing the
CPU. If the lever is
only partly raised,
damage to the
socket or CPU may
result.
!
