Supero X9DRW-3LN4F+ - Ethernet Ports

Chapter 2: Installation
2-17
1. GLAN1
2. GLAN2
3. LAN3 (LN4F+: GLAN, 3TF+: 10
GLAN)
4.LAN4 (LN4F+: GLAN, 3TF+: 10 GLAN)
5. IPMI_LAN

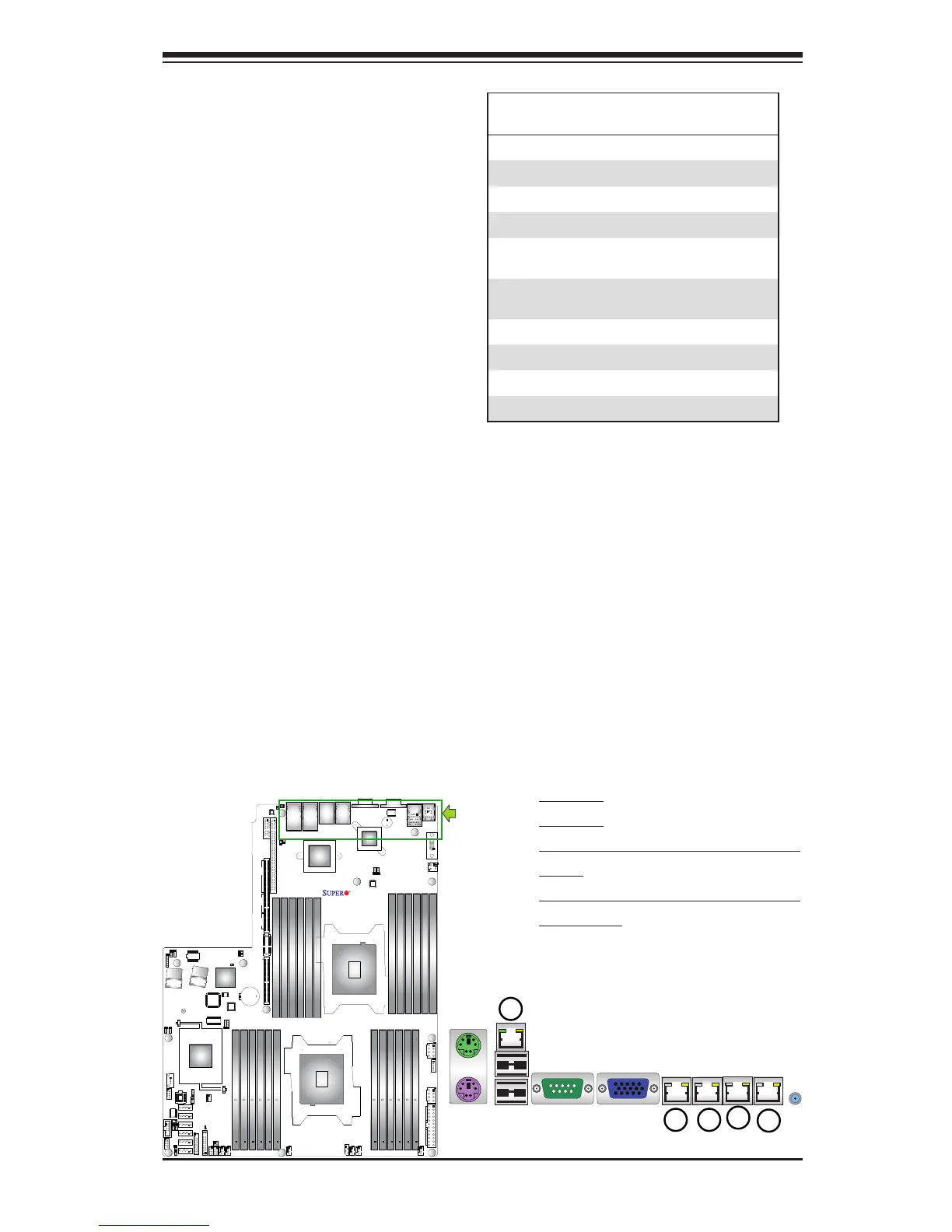

Ethernet Ports
Two Gigabit Ethernet ports (LAN1/2)
and two 10G_bit LAN ports (LAN3/4)
are located on the I/O backplane on
the motherboard to provide inter-
net connections. LAN3/LAN4 ports
support 1GLAN connections on the
X9DRW-3LN4F+, and 10GLAN con-
nections on the X9DRW-3TF+. In
addition, an IPMI_Dedicated LAN,
located above USB 0/1 ports on the
backplane, provides KVM support for
IPMI 2.0. All these ports accept RJ45
type cables. (Note: Please refer to the
LED Indicator Section for LAN LED
information.)
LAN Ports
PinDenition
Pin# Denition
1 P2V5SB 10 SGND
2 TD0+ 11 Act LED
3 TD0- 12 P3V3SB
4 TD1+ 13 Link 100 LED (Yel-
low, +3V3SB)
5 TD1- 14 Link 1000 LED
(Yellow, +3V3SB)
6 TD2+ 15 Ground
7 TD2- 16 Ground
8 TD3+ 17 Ground
9 TD3- 18 Ground
(NC: No Connection)
