Supero X9DRW-3LN4F+ - Connecting Cables; Power Connectors

2-24
X9DRW-3LN4F+/3TF+ Motherboard User’s Manual
JSTBY1
JRK1
JIPMB1
JPI2C1
JPW3
JPW2
JPW1
JF1
T-SGPIO1
JF2
Buzzer
JWD1
JPL2
JWP1
JBR1
JPME1
JPB1
JPL1
JPME2
JPG1
LE1
LE2
JBT1
JPP0
JPP1
JTPM1
JOH1
JL1
JP7
JP6
JI2C1
JI2C2
JBAT1
SP1
PWR_I2C
CPU1
CPU2
P2-DIMMH3
P2-DIMMH2
P2-DIMMH1
P2-DIMMG2
P2-DIMMG1
IPMI_LAN
USB0/1
COM1
VGA1
KB/MOUSE
LAN1
LAN3
LAN4
UID
SAS4~7
PLD
SAS0~3
USB6
USB2/3
I-SATA4
I-SATA5
I-SATA3
I-SATA2
I-SATA1
I-SATA0
TPM
FANA1
FAN5
FAN4
FAN3
FAN2
FAN1
P1-DIMMA1 P1-DIMMA2 P1-DIMMA3 P1-DIMMB1
P1-DIMMB2
P1-DIMMB3
P1-DIMMD3
P1-DIMMD2
P1-DIMMD1 P1-DIMMC3
P1-DIMMC2
P1-DIMMC1
USB4/5
COM2
BATTERY
P2-DIMM1A
P2-DIMME2
P2-DIMME3
P2-DIMMF2
P2-DIMMF3
LAN2
P2-DIMMG3
P2-DIMMF1
BIOS
X9DRW-3LN4F+
Rev. 1.20
Clock
Intel
PCH
LAN
CTRL 1
LAN
CTRL 2
CPLD
BMC
CTRL
JSD1
LEM2
T-SGPIO2
SXB1_3
SXB1_4
1
JUIDB1
CPU2_PORT2C
CPU2_PORT2A
CPU1_PORT2CCPU1_PORT2A
CPU1_PORT3C
CPU1_PORT3A
SXB1D
SXB1C
SXB1B
SXB2
SXB1A
P2-DIMME1
JPW4
CPU2_PORT3D
CPU2_PORT3C
CPU2_PORT3B
CPU2_PORT3A
Warning: To prevent damage to the
power supply or motherboard, please
use a power supply that contains a
24-pin, two 8-pin and one 4-pin power
connectors. Be sure to connect these
power supply connectors to the 24-pin
power connector (JPW1), the 8-pin
power connectors (JPW2/JPW3) and
the 4-pin power connector (JPW4) on
the motherboard.

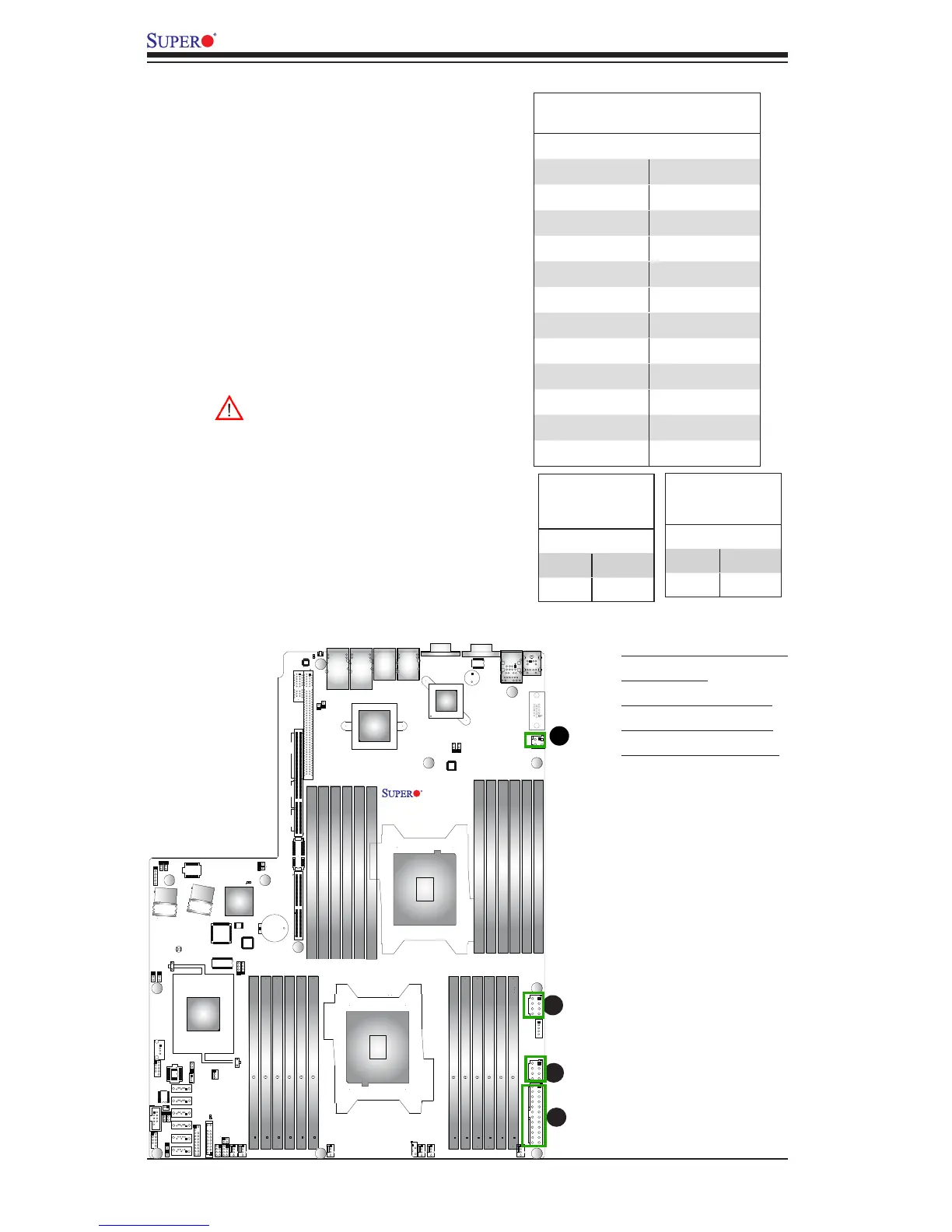

2-6 Connecting Cables
Power Connectors
A 24-pin main power supply connector(JPW1),
two 8-pin power connectors (JPW2/JPW3) and
a 4-pin power connector (JPW4) are located
on the motherboard. These power connectors
meet the SSI EPS 12V specication. These
power connectors must also be connected to
your power supply. See the table on the right
for pin denitions.
ATX Power 24-pin Connector
PinDenitions
Pin# Denition Pin # Denition
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 COM 3 COM
16 PS_ON 4 +5V
17 COM 5 COM
18 COM 6 +5V
19 COM 7 COM
20 Res (NC) 8 PWR_OK
21 +5V 9 5VSB
22 +5V 10 +12V
23 +5V 11 +12V
24 COM 12 +3.3V
12V 8-pin PWR
Connector
PinDenitions
Pins Denition
1~ 4 Ground
5 ~8 +12V
A. JPW1: 24-pin ATX
PWR (Req'd)
B. JPW2: 8-pin (Req'd)
C. JPW3: 8-pin (Req'd)
D. JPW4: 4-pin required
A
B
C
(Required)
D
12V 4-pin Power
Connector
PinDenitions
Pins Denition
1~2 Ground
3~4 +12V
(Required)
