Supero X9DRW-3LN4F+ - TPM Header;Port 80; Standby Power Header

Chapter 2: Installation
2-27
JSTBY1
JRK1
JIPMB1
JPI2C1
JPW3
JPW2
JPW1
JF1
T-SGPIO1
JF2
Buzzer
JWD1
JPL2
JWP1
JBR1
JPME1
JPB1
JPL1
JPME2
JPG1
LE1
LE2
JBT1
JPP0
JPP1
JTPM1
JOH1
JL1
JP7
JP6
JI2C1
JI2C2
JBAT1
SP1
PWR_I2C
CPU1
CPU2
P2-DIMMH3
P2-DIMMH2
P2-DIMMH1
P2-DIMMG2
P2-DIMMG1
IPMI_LAN
USB0/1
COM1
VGA1
KB/MOUSE
LAN1
LAN3
LAN4
UID
SAS4~7
PLD
SAS0~3
USB6
USB2/3
I-SATA4
I-SATA5
I-SATA3
I-SATA2
I-SATA1
I-SATA0
TPM
FANA1
FAN5
FAN4
FAN3
FAN2
FAN1
P1-DIMMA1 P1-DIMMA2 P1-DIMMA3 P1-DIMMB1
P1-DIMMB2
P1-DIMMB3
P1-DIMMD3
P1-DIMMD2
P1-DIMMD1 P1-DIMMC3
P1-DIMMC2
P1-DIMMC1
USB4/5
COM2
BATTERY
P2-DIMM1A
P2-DIMME2
P2-DIMME3
P2-DIMMF2
P2-DIMMF3
LAN2
P2-DIMMG3
P2-DIMMF1
BIOS
X9DRW-3LN4F+
Rev. 1.20
Clock
Intel
PCH
LAN
CTRL 1
LAN
CTRL 2
CPLD
BMC
CTRL
JSD1
LEM2
T-SGPIO2
SXB1_3
SXB1_4
1
JUIDB1
CPU2_PORT2C
CPU2_PORT2A
CPU1_PORT2CCPU1_PORT2A
CPU1_PORT3C
CPU1_PORT3A
SXB1D
SXB1C
SXB1B
SXB2
SXB1A
P2-DIMME1
JPW4
CPU2_PORT3D
CPU2_PORT3C
CPU2_PORT3B
CPU2_PORT3A

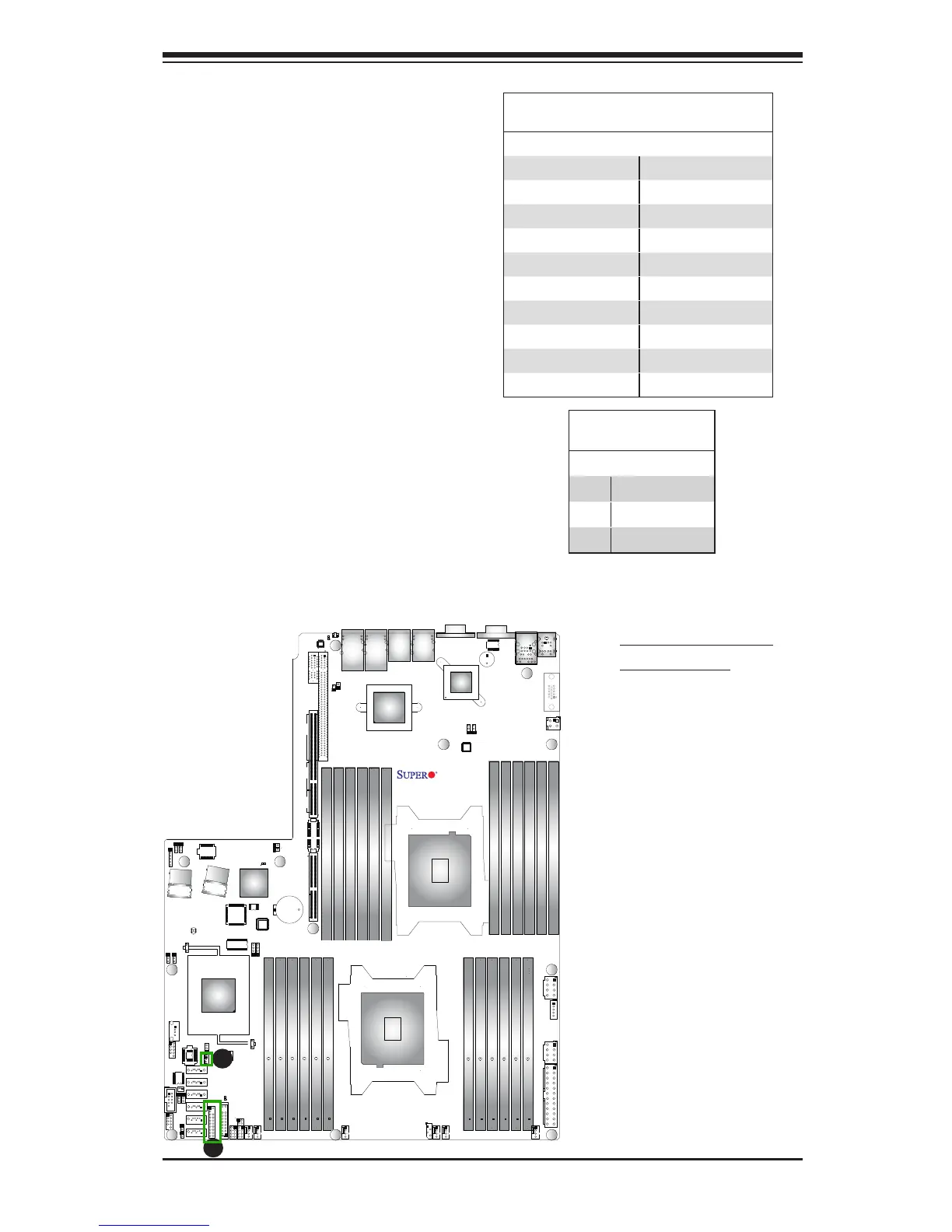

A. TPM/Port 80 Header
B. Standby PWR
TPM Header/Port 80
A Trusted Platform Module/Port 80
header is located at JTPM1 to provide
TPM support and Port 80 connection.
Use this header to enhance system
performance and data security. See
the table on the right for pin deni-
tions.
TPM/Port 80 Header
PinDenitions
Pin # Denition Pin # Denition
1 LCLK 2 GND
3 LFRAME# 4 <(KEY)>
5 LRESET# 6 +5V (X)
7 LAD 3 8 LAD 2
9 +3.3V 10 LAD1
11 LAD0 12 GND
13 SMB_CLK4 14 SMB_DAT4
15 +3V_DUAL 16 SERIRQ
17 GND 18 CLKRUN# (X)
19 LPCPD# 20 LDRQ# (X)
A
B
Standby Power Header
The Standby Power header is located
at JSTBY1 on the motherboard. See
the table on the right for pin deni-
tions. (You must also have a cable to
use this feature.)
Standby PWR
PinDenitions
Pin# Denition
1 +5V Standby
2 Ground
3 Wake-up
