Supero X9DRW-3LN4F+ - Fan Headers; Chassis Intrusion

Chapter 2: Installation
2-25
JSTBY1
JRK1
JIPMB1
JPI2C1
JPW3
JPW2
JPW1
JF1
T-SGPIO1
JF2
Buzzer
JWD1
JPL2
JWP1
JBR1
JPME1
JPB1
JPL1
JPME2
JPG1
LE1
LE2
JBT1
JPP0
JPP1
JTPM1
JOH1
JL1
JP7
JP6
JI2C1
JI2C2
JBAT1
SP1
PWR_I2C
CPU1
CPU2
P2-DIMMH3
P2-DIMMH2
P2-DIMMH1
P2-DIMMG2
P2-DIMMG1
IPMI_LAN
USB0/1
COM1
VGA1
KB/MOUSE
LAN1
LAN3
LAN4
UID
SAS4~7
PLD
SAS0~3
USB6
USB2/3
I-SATA4
I-SATA5
I-SATA3
I-SATA2
I-SATA1
I-SATA0
TPM
FANA1
FAN5
FAN4
FAN3
FAN2
FAN1
P1-DIMMA1 P1-DIMMA2 P1-DIMMA3 P1-DIMMB1
P1-DIMMB2
P1-DIMMB3
P1-DIMMD3
P1-DIMMD2
P1-DIMMD1 P1-DIMMC3
P1-DIMMC2
P1-DIMMC1
USB4/5
COM2
BATTERY
P2-DIMM1A
P2-DIMME2
P2-DIMME3
P2-DIMMF2
P2-DIMMF3
LAN2
P2-DIMMG3
P2-DIMMF1
BIOS

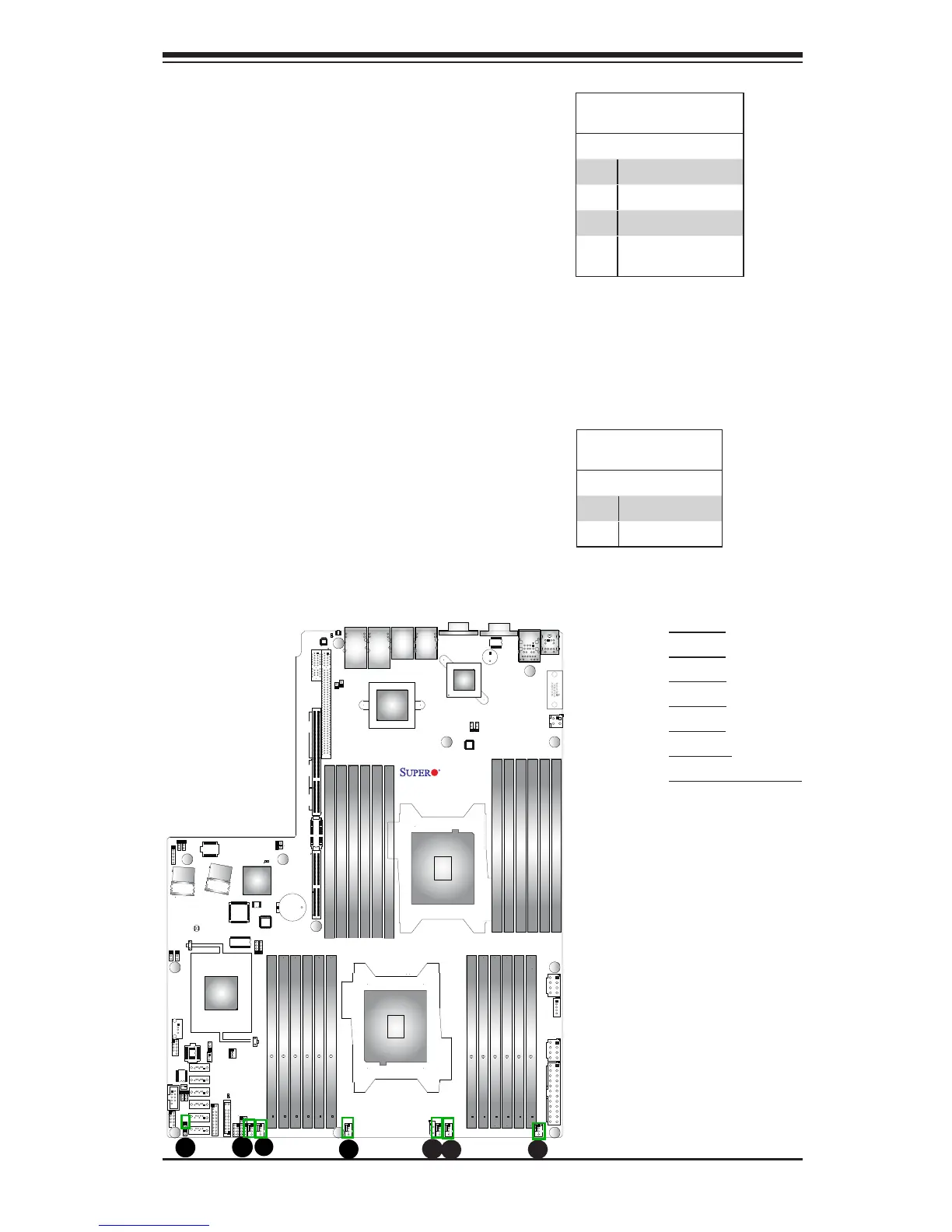

X9DRW-3LN4F+
Rev. 1.20
Clock
Intel
PCH
LAN
CTRL 1
LAN
CTRL 2
CPLD
BMC
CTRL
JSD1
LEM2
T-SGPIO2
SXB1_3
SXB1_4
1
JUIDB1
CPU2_PORT2C
CPU2_PORT2A
CPU1_PORT2CCPU1_PORT2A
CPU1_PORT3C
CPU1_PORT3A
SXB1D
SXB1C
SXB1B
SXB2
SXB1A
P2-DIMME1
JPW4
CPU2_PORT3D
CPU2_PORT3C
CPU2_PORT3B
CPU2_PORT3A
A. Fan 1
B. Fan 2
C. Fan 3
D. Fan 4
E. Fan 5
F. Fan A1
G. Chassis Intrusion
Chassis Intrusion
A Chassis Intrusion header is located
at JL1 on the motherboard. Attach an
appropriate cable from the chassis to
inform you of a chassis intrusion when
the chassis is opened.
Chassis Intrusion
PinDenitions
Pin# Denition
1 Intrusion Input
2 Ground
C
D
E
F
Fan Headers
This motherboard has six system/CPU
fan headers (Fan 1~Fan 5, Fan A1) on
the motherboard. All these 4-pin fans
headers are backward compatible with
the traditional 3-pin fans. However, fan
speed control is available for 4-pin fans
only. The fan speeds are controlled by
rmware thermal management via IPMI
interface. See the table on the right for
pin denitions.
Fan Header
PinDenitions
Pin# Denition
1 Ground
2 +12V
3 Tachometer
4 Pulse Width Modu-
lation (PWM)
G
A
B
