Supero X9DRW-3LN4F+ - 10 G_LAN3;LAN4 LED Indicators (X9 DRW-3 LN4 F+ Only)

2-30
X9DRW-3LN4F+/3TF+ Motherboard User’s Manual
JSTBY1
JRK1
JIPMB1
JPI2C1
JPW3
JPW2
JPW1
JF1
T-SGPIO1
JF2
Buzzer
JWD1
JPL2
JWP1
JBR1
JPME1
JPB1
JPL1
JPME2
JPG1
LE1
LE2
JBT1
JPP0
JPP1
JTPM1
JOH1
JL1
JP7
JP6
JI2C1
JI2C2
JBAT1
SP1
PWR_I2C
CPU1
CPU2
P2-DIMMH3
P2-DIMMH2
P2-DIMMH1
P2-DIMMG2
P2-DIMMG1
IPMI_LAN
USB0/1
COM1
VGA1
KB/MOUSE
LAN1
LAN3
LAN4
UID
SAS4~7
PLD
SAS0~3
USB6
USB2/3
I-SATA4
I-SATA5
I-SATA3
I-SATA2
I-SATA1
I-SATA0
TPM
FANA1
FAN5
FAN4
FAN3
FAN2
FAN1
P1-DIMMA1 P1-DIMMA2 P1-DIMMA3 P1-DIMMB1
P1-DIMMB2
P1-DIMMB3
P1-DIMMD3
P1-DIMMD2
P1-DIMMD1 P1-DIMMC3
P1-DIMMC2
P1-DIMMC1
USB4/5
COM2
BATTERY
P2-DIMM1A
P2-DIMME2
P2-DIMME3
P2-DIMMF2
P2-DIMMF3
LAN2
P2-DIMMG3
P2-DIMMF1
BIOS
X9DRW-3LN4F+
Rev. 1.20
Clock
Intel
PCH
LAN
CTRL 1
LAN
CTRL 2
CPLD
BMC
CTRL
JSD1
LEM2
T-SGPIO2
SXB1_3
SXB1_4
1
JUIDB1
CPU2_PORT2C
CPU2_PORT2A
CPU1_PORT2CCPU1_PORT2A
CPU1_PORT3C
CPU1_PORT3A
SXB1D
SXB1C
SXB1B
SXB2
SXB1A
P2-DIMME1
JPW4
CPU2_PORT3D
CPU2_PORT3C
CPU2_PORT3B
CPU2_PORT3A

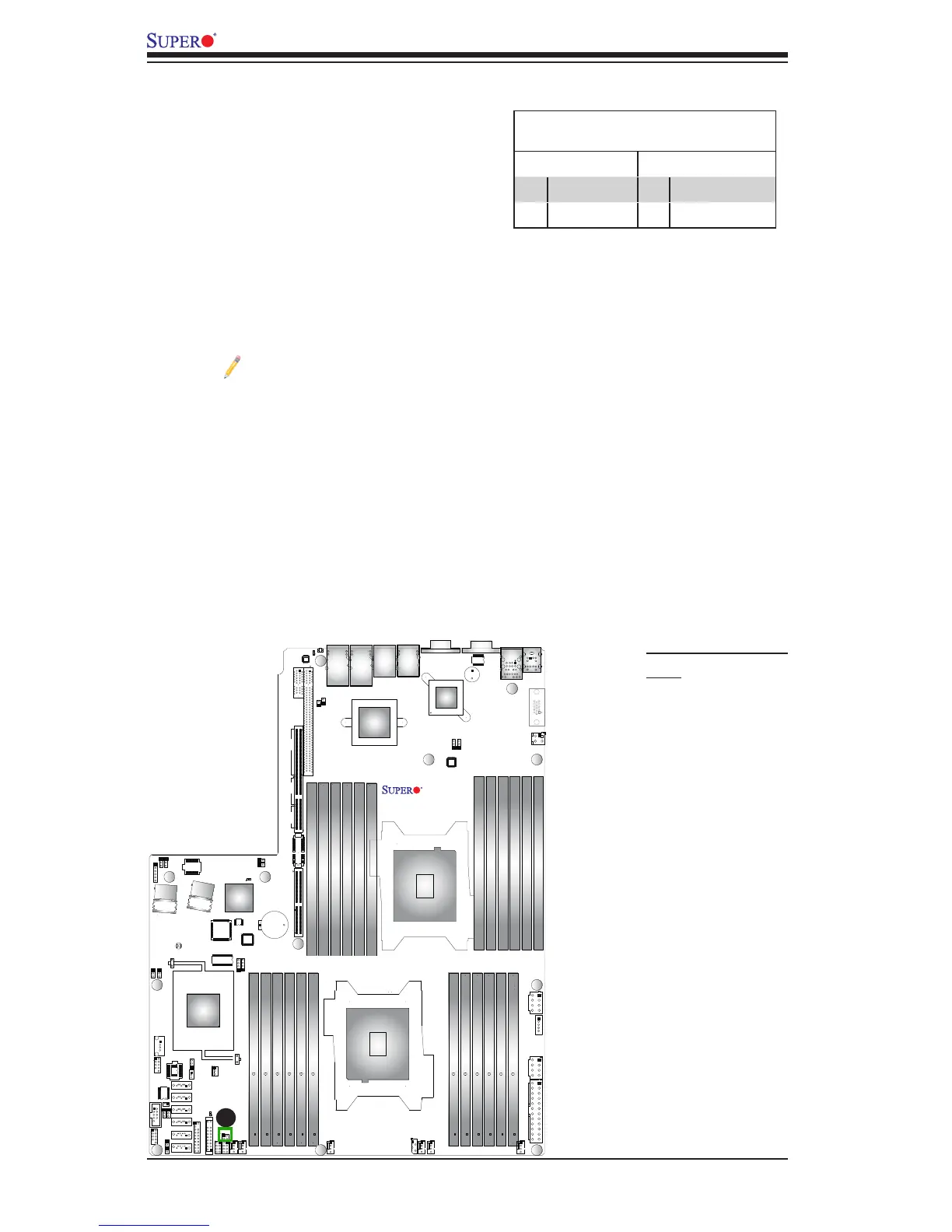

A. 10G_LAN 3/4
LEDs
A
10G_LAN3/LAN4 LED Indicators
(X9DRW-3LN4F+ Only)
The NIC (Network Interface Controller)
LED connections for 10G_LAN port 3 are
located on pins 3 and 4 of JF2, and the
LED connections for 10G_LAN port 4 is
on Pins 1 and 2 of JF2. Attach NIC LED
cables here to display network activities.
Refer to the table on the right for pin
denitions.
Note: The NIC LED connections
for LAN Ports 1/2 are located on
JF1. See Page 3-18 for details.
10G_LAN Ports 3/4 LED Indicators (JF2)
PinDenitions
Pin# Denition Pin Denition
1 LAN4 Activity 2 LAN4 Link
3 LAN3 Activity 4 LAN3 Link
