Supero X9DRW-3LN4F+ - VGA Enable; BMC Enable

Chapter 2: Installation
2-33
JSTBY1
JRK1
JIPMB1
JPI2C1
JPW3
JPW2
JPW1
JF1
T-SGPIO1
JF2
Buzzer
JWD1
JPL2
JWP1
JBR1
JPME1
JPB1
JPL1
JPME2
JPG1
LE1
LE2
JBT1
JPP0
JPP1
JTPM1
JOH1
JL1
JP7
JP6
JI2C1
JI2C2
JBAT1
SP1
PWR_I2C
CPU1
CPU2
P2-DIMMH3
P2-DIMMH2
P2-DIMMH1
P2-DIMMG2
P2-DIMMG1
IPMI_LAN
USB0/1
COM1
VGA1
KB/MOUSE
LAN1
LAN3
LAN4
UID
SAS4~7
PLD
SAS0~3
USB6
USB2/3
I-SATA4
I-SATA5
I-SATA3
I-SATA2
I-SATA1
I-SATA0
TPM
FANA1
FAN5
FAN4
FAN3
FAN2
FAN1
P1-DIMMA1 P1-DIMMA2 P1-DIMMA3 P1-DIMMB1
P1-DIMMB2
P1-DIMMB3
P1-DIMMD3
P1-DIMMD2
P1-DIMMD1 P1-DIMMC3
P1-DIMMC2
P1-DIMMC1
USB4/5
COM2
BATTERY
P2-DIMM1A
P2-DIMME2
P2-DIMME3
P2-DIMMF2
P2-DIMMF3
LAN2
P2-DIMMG3
P2-DIMMF1
BIOS
X9DRW-3LN4F+
Rev. 1.20
Clock
Intel
PCH
LAN
CTRL 1
LAN
CTRL 2
CPLD
BMC
CTRL
JSD1
LEM2
T-SGPIO2
SXB1_3
SXB1_4
1
JUIDB1
CPU2_PORT2C
CPU2_PORT2A
CPU1_PORT2CCPU1_PORT2A
CPU1_PORT3C
CPU1_PORT3A
SXB1D
SXB1C
SXB1B
SXB2
SXB1A
P2-DIMME1
JPW4
CPU2_PORT3D
CPU2_PORT3C
CPU2_PORT3B
CPU2_PORT3A

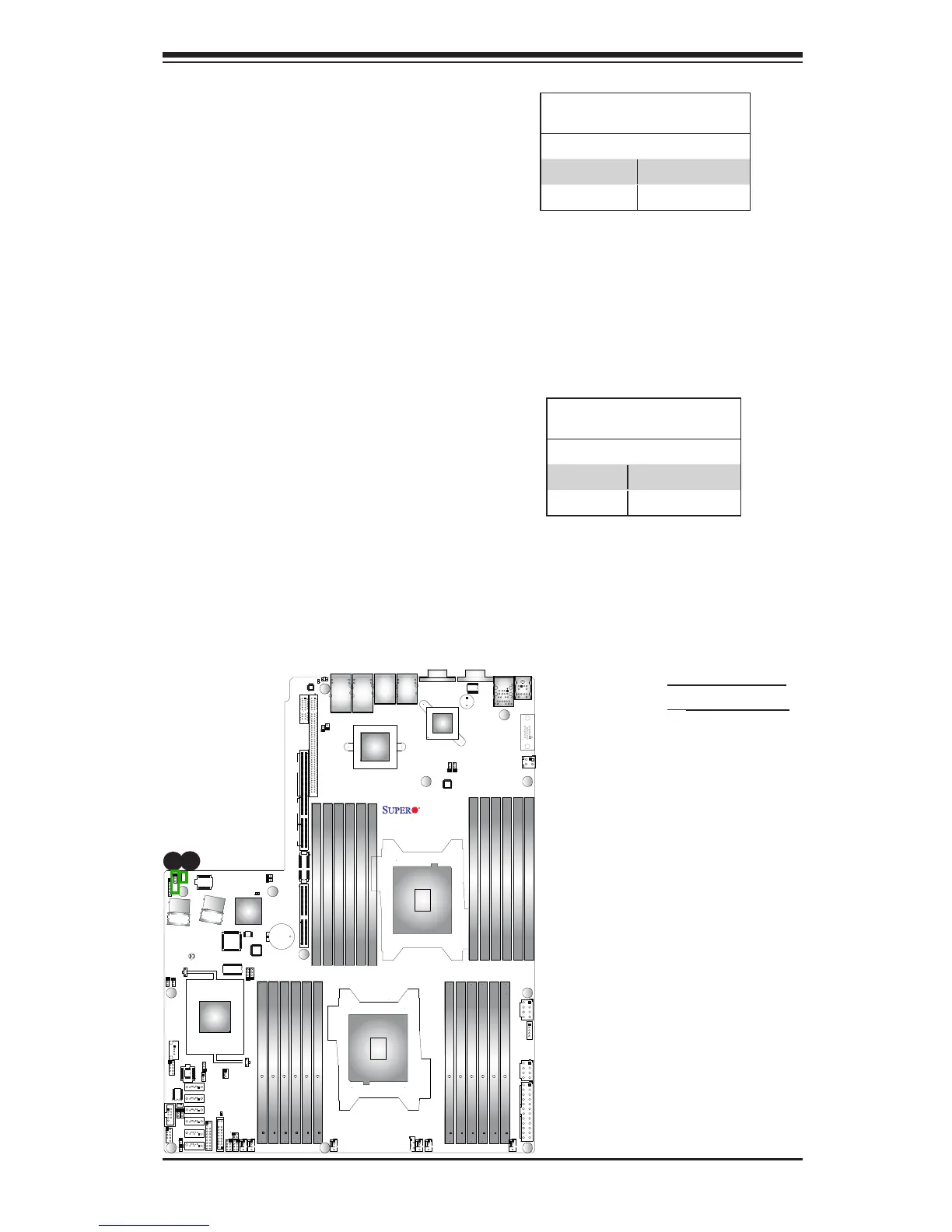

A. VGA Enabled
B. BMC Enabled
VGA Enable
Jumper JPG1 allows the user to enable
the onboard VGA connector. The default
setting is 1-2 to enable the connection.
See the table on the right for jumper
settings.
VGA Enable
Jumper Settings
Jumper Setting Denition
1-2 Enabled (Default)
2-3 Disabled
BMC Enable
Jumper JPB1 allows you to enable the
embedded the Nuvoton BMC (Base-
board Management) Controller to pro-
vide IPMI 2.O/KVM support on the
motherboard. See the table on the right
for jumper settings.
BMC Enable
Jumper Settings
Jumper Setting Denition
Pins 1-2 BMC Enable
Pins 2-3 Normal (Default)
A
B
