Supero X9SCAA User Manual

Chapter 2: Installation
2-5
Insert the SODIMM
module vertically at
about a 45 degree
angle.
To Remove:
Use your thumbs to
gently push the side
clips near both ends
away from the module.
This should release
it from the slot. Pull
the SODIMM module
upwards.
The SODIMM Socket
Position the SODIMM
module's bottom key
so it aligns with the
receptive point on the
slot.
Press down until the
module locks into
place. The side clips
will automatically
secure the SODIMM
module, locking it into
place.
1
2
3
4

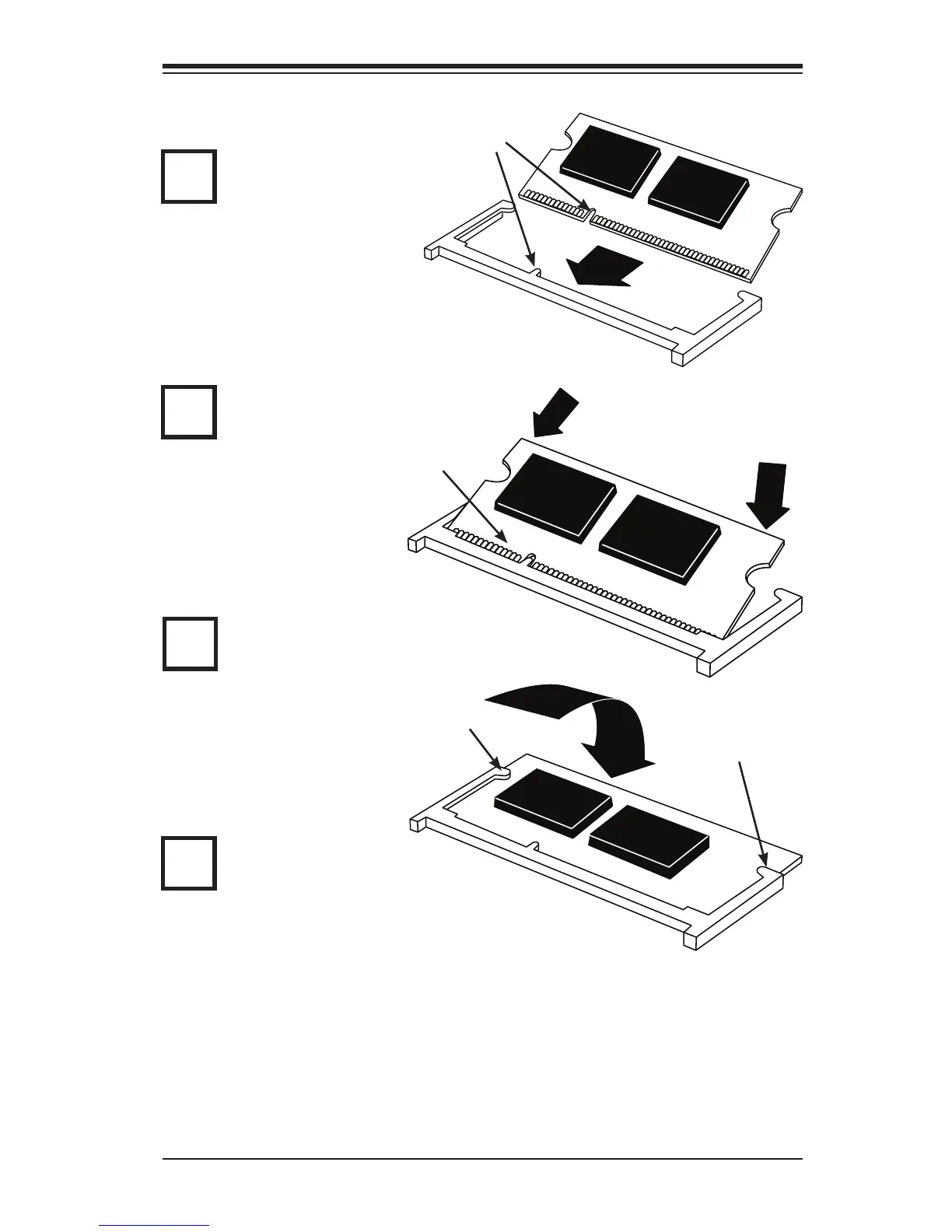

Insert this end rst
Press down until the module
locks into place.
Locking clip
Locking clip
Align
