Supmeter BST100-B11 - RS485 to Remote Display&Operation Terminal Point-To-Point Network; Rs485;Canbus;Profibus-DP to IPC;PLC Host-Slave Data-Bus Network

26

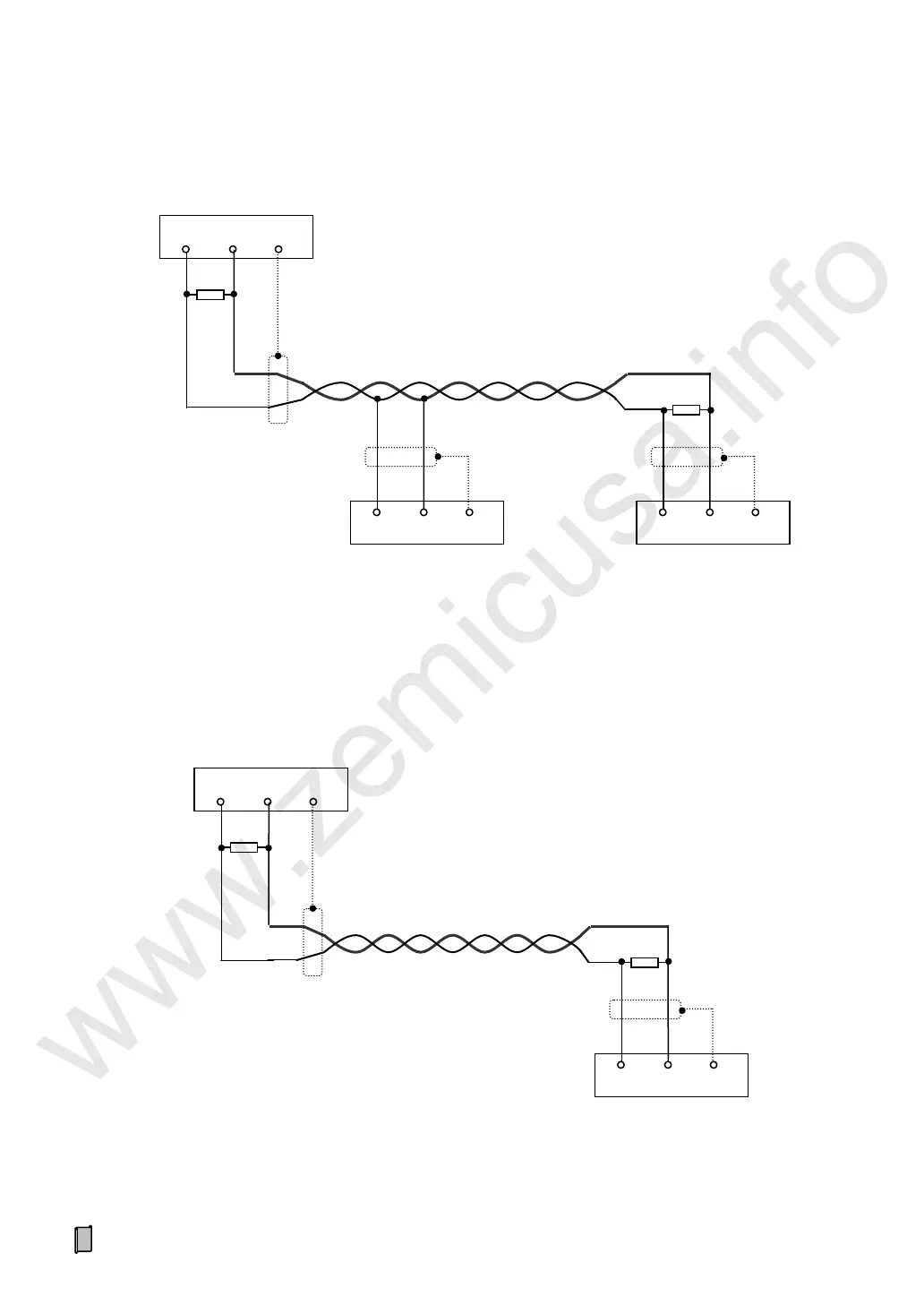

4.3.4.5 RS485/CANBUS/Profibus-DP to IPC/PLC Host-slave Data-bus Network
4.3.4.6 RS485 to Remote Display&Operation Terminal Point-to-point Network
B
A
GND
Host (IPC/PLC)
Slave: Controller
…
1#
…
R
B
A
GND
N#
B
A
GND
R
 Terminal resistor R=120~150Ω.
 RS485 max. transmission distance: 1200m.
 Communication mode:
 RS485/CANBUS: Host-slave.
 Profibus-DP: DP-Modicon/DP-Siemens.
N≤31
B
A
GND
Controller
Remote Display&Operation Terminal
R
B
A
GND
R
 Terminal resistor R=120~150Ω.
 Max. transmission distance: 1200m.
 Communication mode:
 To remote display terminal: Continuous.
 To remote operation terminal: Host-slave.
