Supmeter BST100-B11 User Manual

30
6. Function&Operation
The following display&operation interfaces are described with „kg‟ as the Internal Scale Unit. If the
parameter „[P107] Internal Scale Unit‟ is set to „g‟, the actual Weight Display Unit will be different.

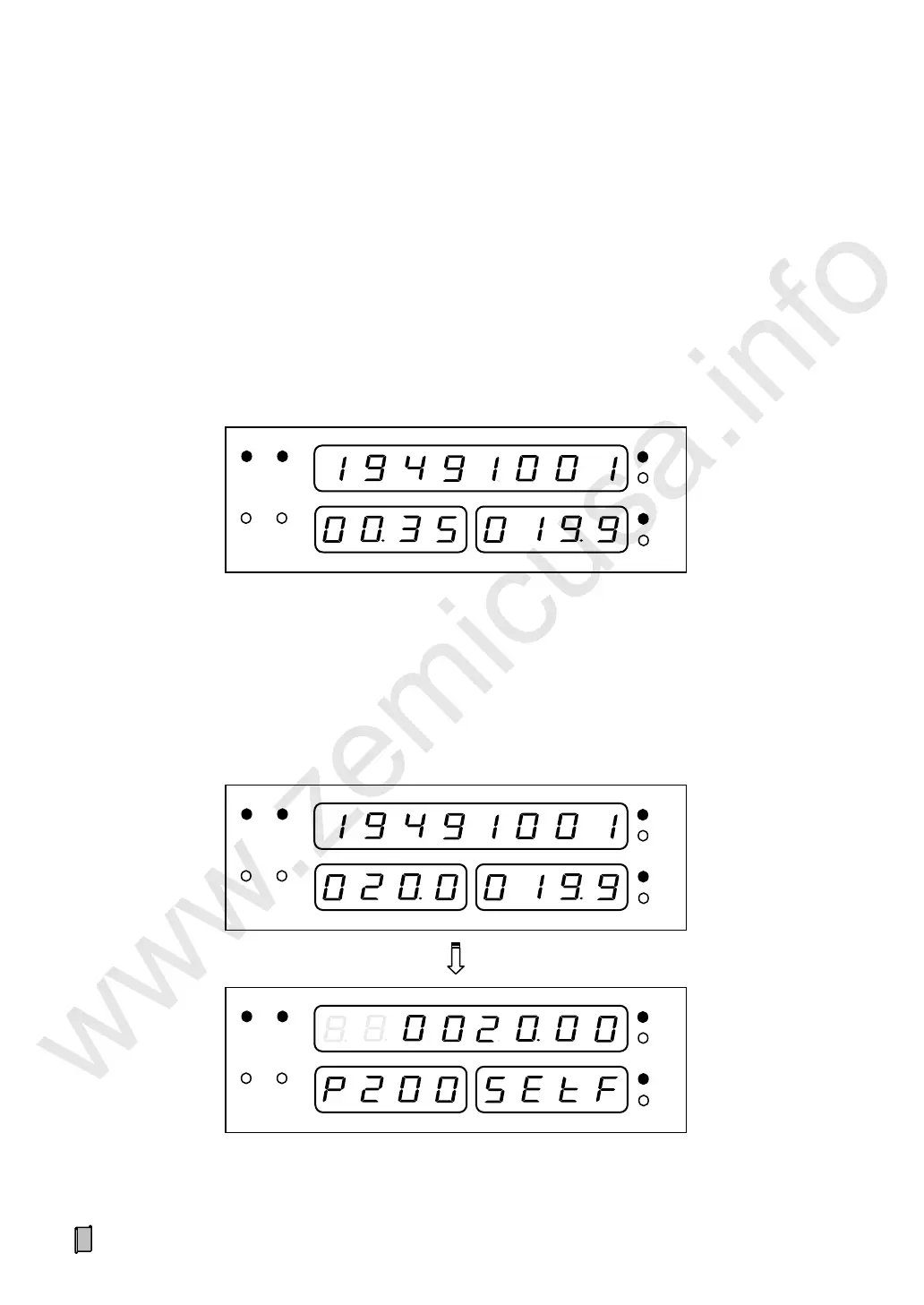

6.1 Main Display Interface
【▲】【 ▼】: Display the next/previous interface.
6.1.1 Totalized Weight, Belt Speed & Flow
Press【PRINT】key to print: 2009-05-20 23:59
19491001kg
6.1.2 Totalized Weight, Flow Setpoint & Flow
RUN
AUTO
EXT
ALARM
kg
t
t/h
kg/m
RUN
RUN
EXT
ALARM
kg
t
t/h
kg/m
RUN
AUTO
EXT
ALARM
kg
t
t/h
kg/m
【ENT】: Set „Flow Setpoint‟ value
www.zemicusa.info

Supmeter BST100-B11 Specifications

General

Brand	Supmeter
Model	BST100-B11
Category	Controller
Language	English
