Supmeter BST100-B11 - Alarm Items

32

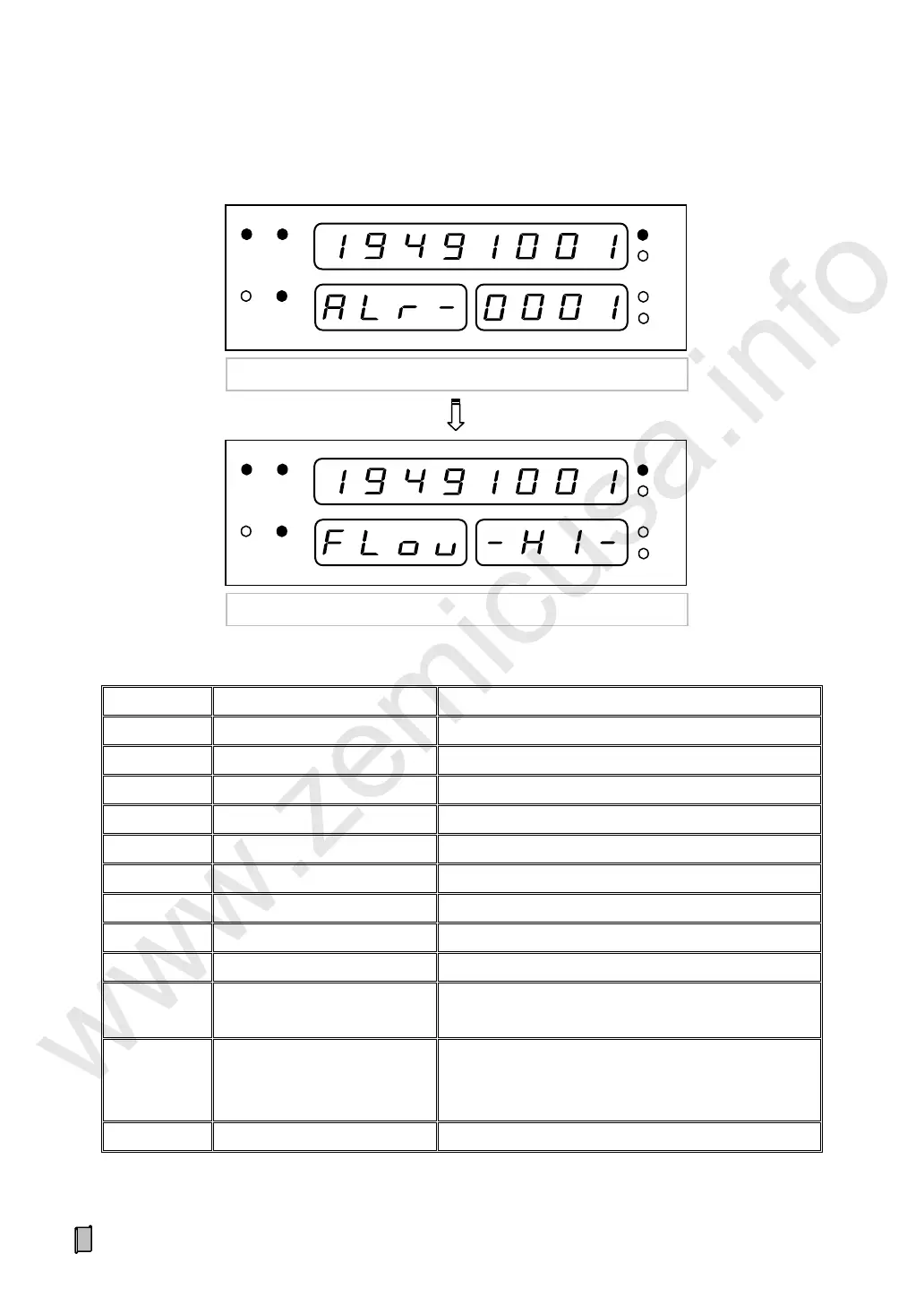

6.1.5 Alarm Items
Sign
Alarm Item
Alarm Condition
FLou -HI-
Flow Upper Limit
Flow ≥ Flow Range × Flow Upper Limit(%)
FLou -Lo-
Flow Lower Limit
Flow ≤ Flow Range × Flow Lower Limit(%)
LoAd -HI-
Load Upper Limit
Load ≥ Load Range × Load Upper Limit(%)
LoAd -Lo-
Load Lower Limit
Load ≤ Load Range × Load Lower Limit(%)
SPEd -HI-
Speed Upper Limit
Speed ≥ Speed Range × Speed Upper Limit(%)
SPEd -Lo-
Speed Lower Limit
Speed ≤ Speed Range × Speed Lower Limit(%)
PId- -HI-
Control Current Upper Limit
Control Current ≥ PID Control Current Upper Limit
PId- -Lo-
Control Current Lower Limit
Control Current ≤ PID Control Current Lower Limit
dEV- -HI-
Flow Positive Deviation Limit
Flow Deviation [E%] > Flow Positive Deviation Limit
dEV- -Lo-
Flow Negative Deviation Limit
Flow Deviation [E%] < (－Flow Negative Deviation
Limit)
dEV=XXX.X
Flow Deviation Value [E%]
0.0~999.9%
Flow Deviation [E%] = ((Flow －Flow Setpoint) /
Flow Setpoint) × 100%
XXXX ----
Normal
RUN
AUTO
EXT
ALARM
kg
t
t/h
kg/m
RUN
AUTO
EXT
ALARM
kg
t
t/h
kg/m
【ENT】: Alarm Query
【▲】【 ▼】: Query Switch; 【MENU】: Exit
ALr- Alarm Count
