Supmeter BST100-B11 User Manual

51

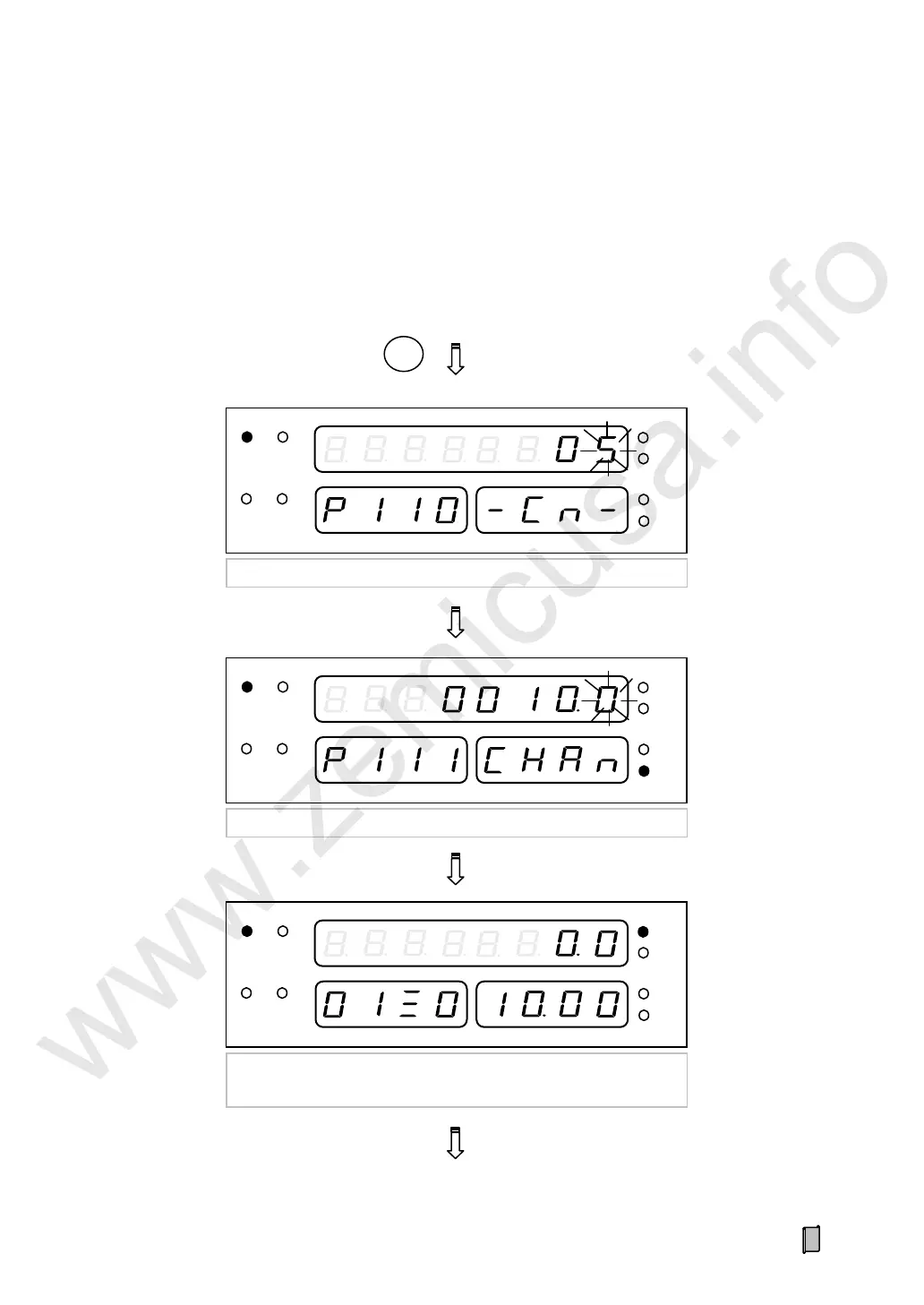

6.4.3 Static Span Calibration with Chain Weight (CHAn)
Keep the belt weigher running with loading a chain weight for correcting Span Coefficient.
Put a measured chain weight as a continuous and steady load on the belt weigher and then start the
belt weigher.
RUN
AUTO
EXT
ALARM
kg
t
t/h
kg/m
【ENT】
Input Calibration Revolutions
RUN
AUTO
EXT
ALARM
kg
t
t/h
kg/m
Input Chain Weight [kg/m]
Totalized Weight; Revolution Count & Remainder length of a
revolution (【▲】【 ▼】: Display Flow or AD value)
Main Display Interface
【MENU】+【▲】【 ▼】: ≡F2-CAL≡
【ENT】+【▲】【 ▼】: --CHAn--
【ENT】
M
AUTO
EXT
ALARM
kg
t
t/h
kg/m
RUN
【ENT】
After running the last revolution
www.zemicusa.info
