SureTouch Refrigerated Liquid Dispensers • SureShot Technical Assistance Center: 1-888-777-9990 or 902-865-9602
16

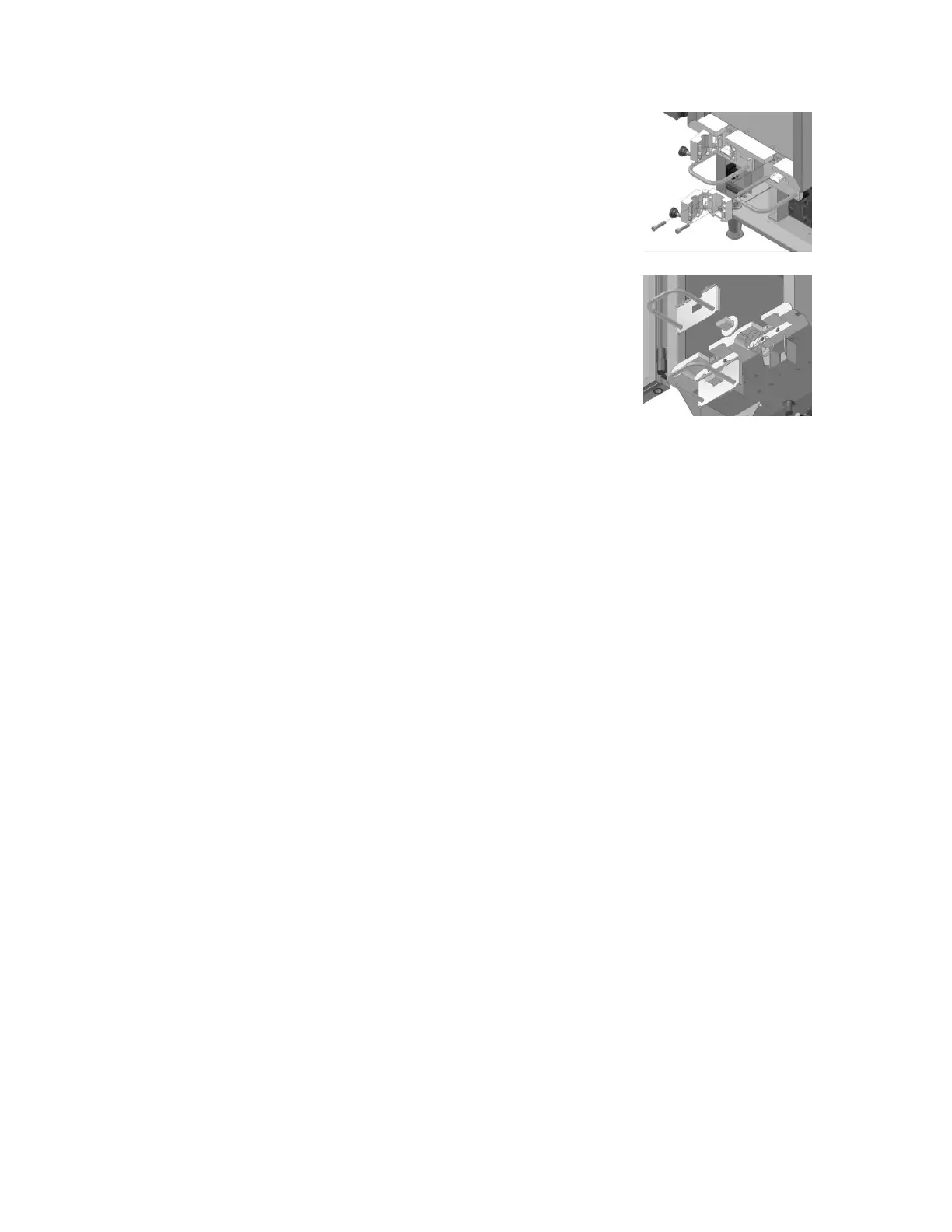

8. Remove the two (2) screws at the upper corners of the
valve. Wipe screws clean and keep for reuse.
9. Gently remove the white valve body using an even force.
The dispense lever comes off with the valve body.
Hold the valve carefully with one hand so that the attached
thermistor wire will not be broken or damaged. Do not
allow the valve to dangle freely.
Note: The valve body can only be moved the length of the
thermistor wire, which is located in the left valve only of
multi-valve dispensers.
10. Remove the plunger and spring.
11. Clean, rinse and sanitize the valve door, valve body,
plunger, spring and dispense lever. Air dry thoroughly.
12. Wipe the spring cup clean.
13. Reassemble the valve body, plunger, spring and dispense
lever.
a. Align the dispense lever with the plunger.
b. Place spring over plunger ensuring a flush fit to the
back of the plunger.
c. Insert spring into spring cup and align the assembly onto the dispenser. Replace
the two (2) screws into the valve. Tighten until snug. Do not over-tighten.
d. Replace the screw at the top of the metal valve insert. Screw must fit snugly to
ensure proper operation of the refrigeration system. Do not over-tighten.
14. Close the valve door. While holding the valve door closed with one hand, tighten the
thumbscrew clockwise until the door is snug. Do not over-tighten.
15. Replace splash panel. Reinstall four (4) screws to secure the splash panel in place.
16. Close the refrigerated product compartment door.
17. Plug the dispenser in.
18. Turn the dispenser ON.
19. Load product. See page 4.
Door Gasket
1. Open product compartment door.
2. Check the door gasket to ensure there are no cuts or gaps.
3. Clean gasket using a soft cloth dampened with warm, clean, soapy water. Use a
small brush to reach all corners and crevices.
4. Rinse using a soft cloth dampened with warm, clean water.
5. Dry thoroughly with a soft cloth.
6. Close product compartment door.
